PRODUCT DETAILS · SIEMENS

6FC5370-0AA00-2BA0

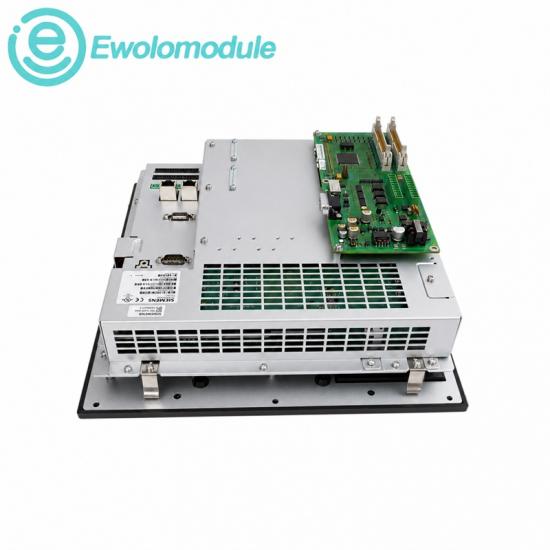

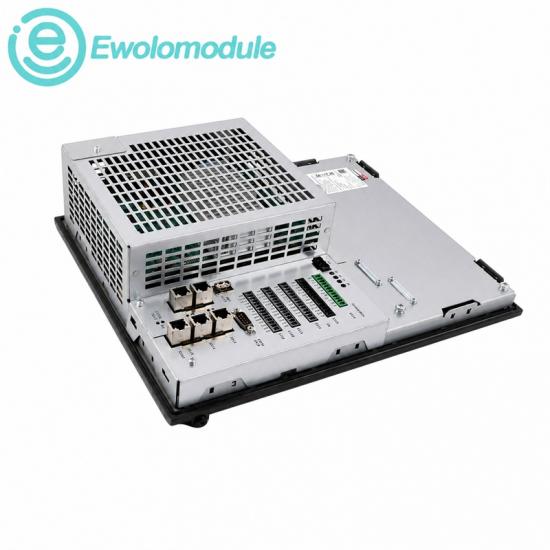

SINUMERIK 802D sl G/N Plus Control

PRODUCT SERIES

SINUMERIK 802D sl

PRODUCT IDENTITY

Siemens 6FC5370-0AA00-2BA0 SINUMERIK 802D sl G/N Plus Control, Export Version is an export-version control for grinding and nibbling machines that integrates NC, PLC, HMI and SINAMICS drive functions.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The SINUMERIK 802D sl G/N Plus control stores boot, HMI, NCK, PLC and drive software in retentive internal PCU memory. It coordinates SINAMICS drives through DRIVE-CLiQ, clock-synchronized distributed I/O over PROFIBUS DP and machine functions including a second spindle and grinding transformations.

CERTIFICATIONS & STANDARDS

◆ UK Declaration of Conformity · 666.MNERo.A.40.2409.010

◆ UK EMC Regulations · S.I. 2016/1091

◆ EU EMC Directive · 2014/30/EU

◆ EMC product standard · EN 61800-3:2004+A1:2012

OFFICIAL TECHNICAL DATA

CONTROL VARIANT

802D sl G/N Plus

SYSTEM CODE

802d-ng2

MARKET VERSION

Export version

INTEGRATED FUNCTIONS

CNC, PLC, HMI and communication

SOFTWARE SET

Boot, HMI, NCK, PLC and drive software

PROGRAM STORAGE

Retentive internal PCU memory

FIELDBUS ROLE

PROFIBUS DP master

PROFIBUS INTERFACE

RS-485, 9-pin D-sub, fixed 12 Mbit/s

PROFIBUS SEGMENT

Maximum 100 m at 12 Mbit/s

DRIVE / TECHNOLOGY

DRIVE-CLiQ; second spindle; grinding transformation

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

ERR, RDY, NC life-sign and CF card-access LEDs support local status checks. Siemens diagnostics cover NCK, cycles, drive and I/O, PROFIBUS, PLC and SINAMICS alarms.

OPERATING ENVIRONMENT

Designed as a ready-to-install panel control for a matched machine-panel and PCU arrangement. Exact numeric ambient limits for this complete order number are not published in the currently available Siemens record.

6FC5370-0AA00-2BA0

Siemens 6FC5370-0AA00-2BA0

6FC5370-0AA00-2BA0 CNC Control

SINUMERIK 802D sl

802D sl G/N Plus

Siemens SINUMERIK Module
