PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER6ES7972-0BB50-0XA0

OFFICIAL PRODUCT NAME

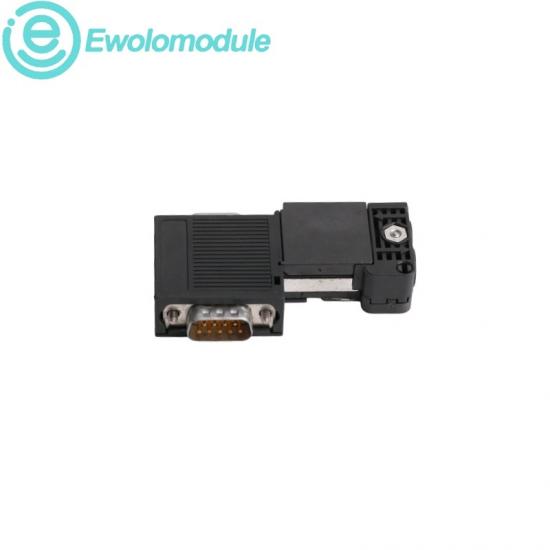

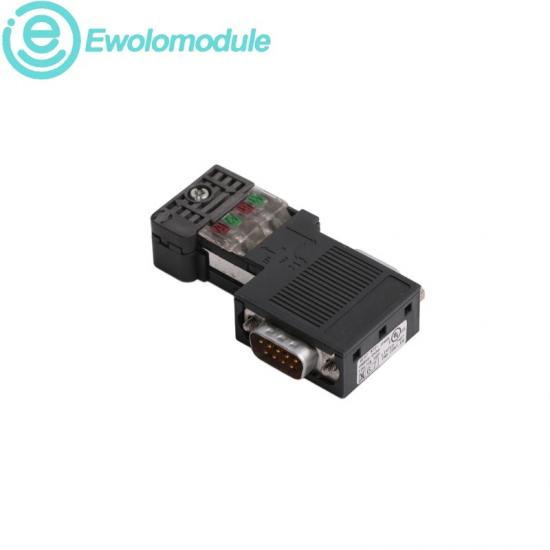

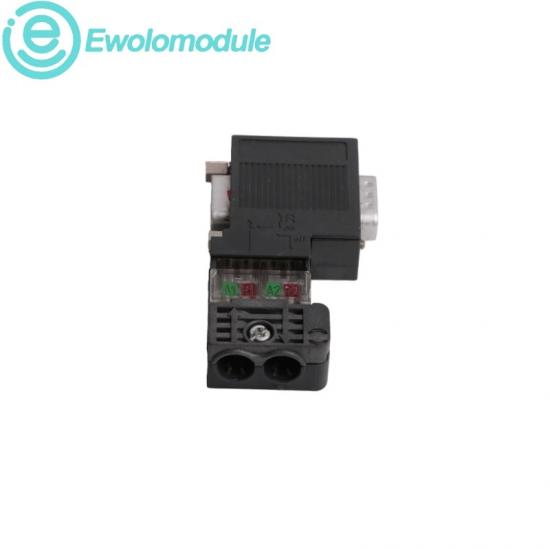

SIMATIC DP PROFIBUS FastConnect Bus Connector

FastConnect RS485 bus connector for PROFIBUS networks up to 12 Mbit/s, with a vertical cable outlet, programming-device socket and switchable terminating resistor.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

INSTALLATION, UPGRADES & FIRMWARE

TRANSFER RATEUp to 12 Mbit/s

CABLE OUTLETVertical

TERMINATIONFastConnect

PG SOCKETFitted

INSTALLATION & UPGRADE

FIRMWARE & UPDATES

01Prepare compatible PROFIBUS cable for the FastConnect insulation-displacement system.

PASSIVE DEVICEThe connector stores no firmware, software image or parameter data.

02Route the cable through the vertical outlet and lock the connector to the bus interface.

UPDATE SCOPENo firmware update is required; service is limited to wiring and hardware checks.

03Set the integrated termination only at the corresponding PROFIBUS segment end.

NETWORK CHECKVerify station access, cable continuity and termination after replacement.

04Use the PG socket for service access, then verify stable bus communication.

SUCCESSOR REVIEWMatch FastConnect wiring, vertical outlet and PG-socket requirement before substitution.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ FastConnect technology reduces preparation steps for compatible bus cable.

◆ PROFIBUS DP service access for controllers and distributed I/O.

◆ The integrated PG socket supports convenient commissioning access.

◆ Control cabinets requiring vertical bus-cable routing.

◆ Switchable termination simplifies PROFIBUS segment-end configuration.

◆ Commissioning and maintenance of installed RS485 networks.

◆ Siemens documentation supports precise article selection.

◆ Lifecycle replacement within SIMATIC communication systems.
