SIEMENS · SINUMERIK · PROFINET

6FC5303-0AF23-0AA1

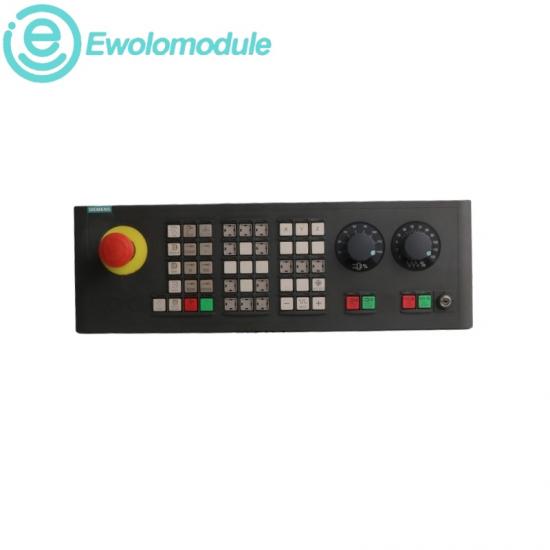

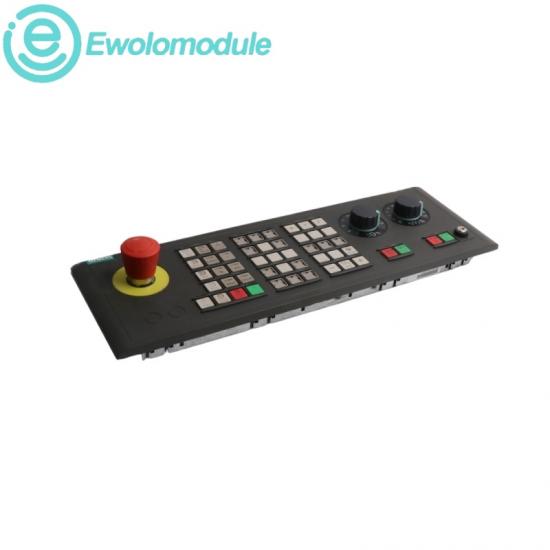

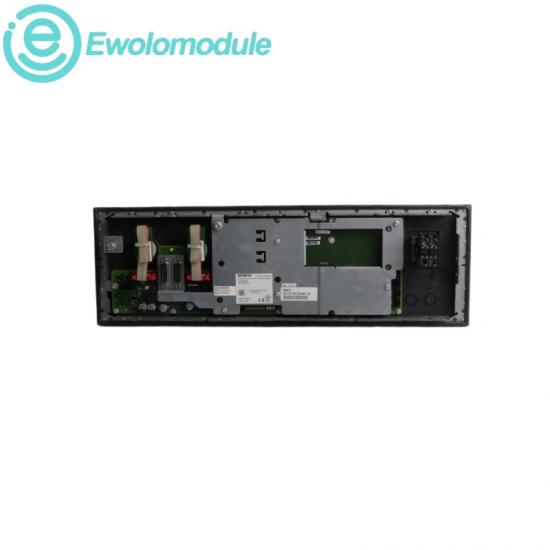

MCP 310C PN Machine Control Panel

A 310 mm SINUMERIK machine control panel with mechanical keys and PROFINET/Industrial Ethernet connectivity.

BRAND Siemens	PRODUCT SERIES SINUMERIK Machine Control Panels
WARRANTY One year	AVAILABILITY In stock

RELATED MODELS ON EWOLOMODULE

6SL3352-6TE32-1AA3 ↗6GK1161-6AA00 ↗

02 · SPECIFICATIONS

Mechanical machine control for SINUMERIK operator stations

PRODUCT DESCRIPTION

The MCP 310C PN provides the physical machine-operation layer for compatible SINUMERIK systems. Mechanical keys give direct command input, while the PROFINET/Industrial Ethernet connection integrates the panel with the CNC operator architecture. The exact key assignment and machine functions remain project-specific.

SYSTEM COMPATIBILITY

SINUMERIK 840D sl
SINUMERIK 840DE sl
PROFINET / Industrial Ethernet
SINUMERIK operator-panel architecture

OFFICIAL TECHNICAL DATA

PRODUCT TYPE SINUMERIK machine control panel	MODEL MCP 310C PN
OPERATION Mechanical keys	NETWORK PROFINET / Industrial Ethernet
ORDER NUMBER 6FC5303-0AF23-0AA1	SYSTEM SUPPORT SINUMERIK 840D sl
SYSTEM SUPPORT 2 SINUMERIK 840DE sl	LIFECYCLE STATUS Product phase-out announced
PHASE-OUT DATE 1 October 2024	PRODUCT CLASS Industrial CNC operator control

PRODUCT FEATURES

◆ Mechanical command keys
◆ PROFINET-connected panel
◆ SINUMERIK system assignment
◆ Machine-specific key labeling

CONNECTION PATH

SINUMERIK CNC

›

MCP 310C PN

›

Machine operator

Connects operator commands to the CNC control environment over the documented PROFINET/Industrial Ethernet path.

Mechanical keys

PROFINET interface

840D sl compatibility
