SIEMENS · SIMATIC NET · SINGLE-MODE FIBER

6GK5308-2FM00-2AA3

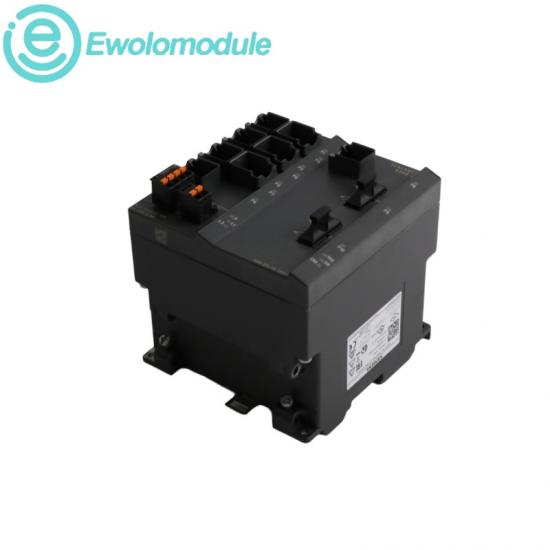

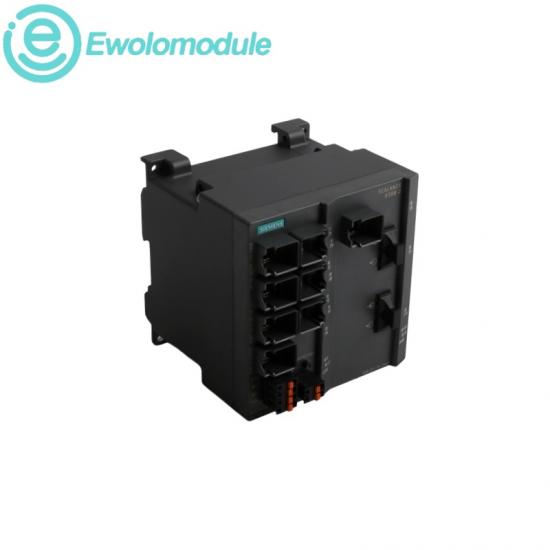

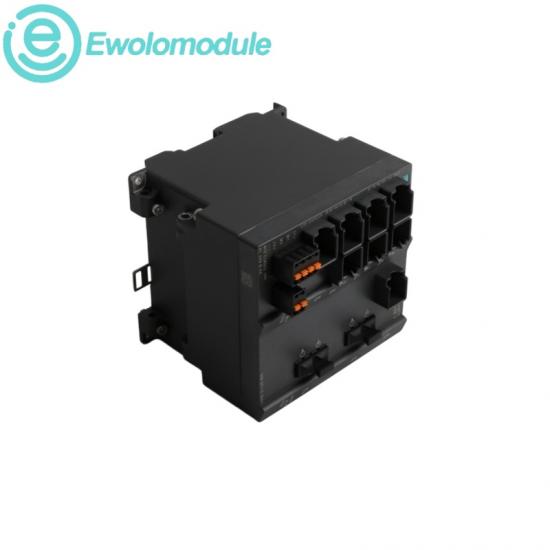

SCALANCE X308-2LD Managed Plus Industrial Ethernet Switch

A managed industrial Ethernet switch combining two Gigabit single-mode fiber uplinks with eight copper interfaces.

BRAND Siemens	PRODUCT SERIES SCALANCE X-300
WARRANTY One year	AVAILABILITY In stock

RELATED MODELS ON EWOLOMODULE

6GK5124-0BA00-2AA3 ↗6GK1161-6AA00 ↗

02 · SPECIFICATIONS

Long-distance fiber uplinks with managed copper access

PRODUCT DESCRIPTION

The X308-2LD brings two single-mode Gigabit SC ports into a managed industrial switching platform, alongside one Gigabit copper and seven Fast Ethernet RJ45 ports. This layout suits distributed cells that need optical backbone reach while retaining copper connections for local controllers and devices.

SYSTEM COMPATIBILITY

SIMATIC NET Industrial Ethernet
Single-mode optical backbone
PROFINET IO networks
SCALANCE X-300 management environment

OFFICIAL TECHNICAL DATA

PRODUCT TYPE Managed Plus Industrial Ethernet switch	FIBER UPLINKS 2 × 1000 Mbit/s single-mode SC
GIGABIT COPPER 1 × 10/100/1000 Mbit/s RJ45	FAST ETHERNET COPPER 7 × 10/100 Mbit/s RJ45
DIAGNOSTICS LED status indication	FAULT OUTPUT Error signaling contact
LOCAL CONTROL Select/Set pushbutton	AUTOMATION ROLE PROFINET IO device
REDUNDANCY Integrated redundancy manager	NETWORK FEATURES RSTP, VLAN and IGMP

PRODUCT FEATURES

◆ Single-mode Gigabit uplinks
◆ Eight local copper ports
◆ Managed network diagnostics
◆ Industrial redundancy functions

CONNECTION PATH

Fiber backbone

›

SCALANCE X308-2LD

›

Local Ethernet devices

Terminates the optical backbone and distributes managed Ethernet to local machine and process-network nodes.

2 Gigabit SM ports

8 copper ports

Managed backbone node
