01 / Product DetailsSIEMENS

Complete product model

6GK5124-0BA00-2AA3

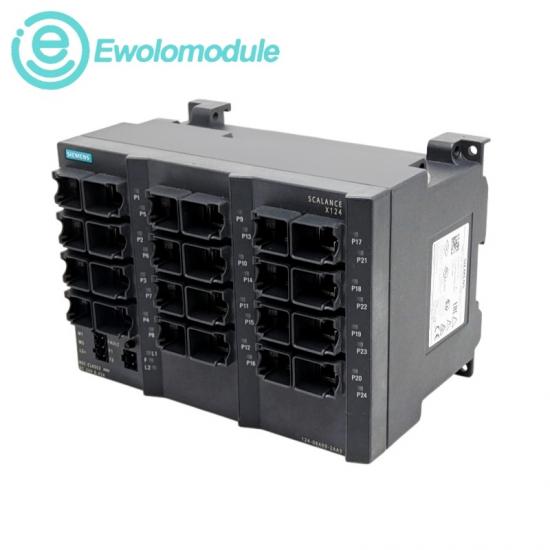

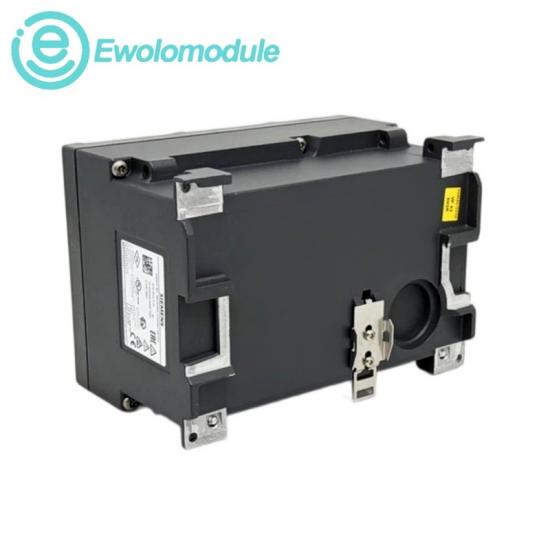

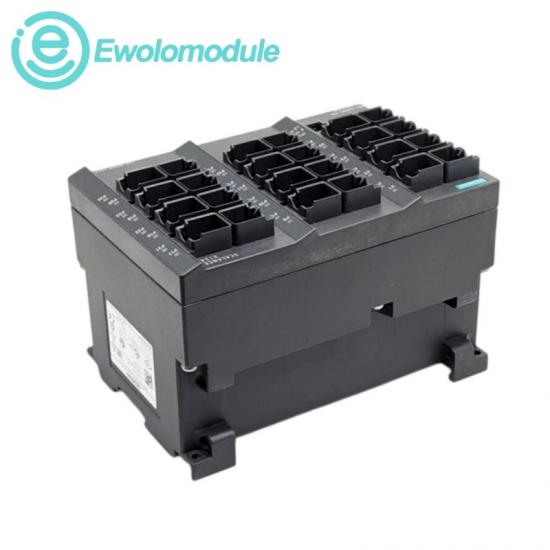

SCALANCE X124 Unmanaged Industrial Ethernet Switch

Straightforward network expansion for existing industrial installations.

Manufacturer

Siemens

Product series

SIMATIC NET · SCALANCE X-100

ConditionNew Original

WarrantyOne year

In stock2

Official data sourcesSiemens SCALANCE X-100 Operating Instructions · A2B00060666-09

Specifications

Connections, power & operating limits

The X124 connects end devices and network segments through switched copper links, with local diagnostics for maintenance.

Ethernet connections24 RJ45 ports

Transmission rate10 / 100 Mbit/s

Duplex modesHalf / full duplex

Power supply24 V DC; range 18–32 V DC

Supply connectionRedundant power inputs

Operating temperature−20 to +70 °C

Protection ratingIP30

MAC address capacity2,048 learnable addresses

Ordering code

6GK5124-0BA00-2AA3 identifies this SCALANCE X124 version. Retain the full order number when selecting a replacement; Siemens does not publish an individual suffix decoder in this manual.

System connection

Connect compatible Industrial Ethernet equipment using twisted-pair cabling. Use line or star topologies and avoid closing an unmanaged Ethernet loop.

Plug-and-play

No parameter settings are needed for commissioning.

Automatic matching

Autonegotiation and MDI/MDI-X adapt the copper connection.

Local diagnostics

LEDs and the signaling contact indicate monitored faults.
