SIEMENS · PRODUCT DETAILS

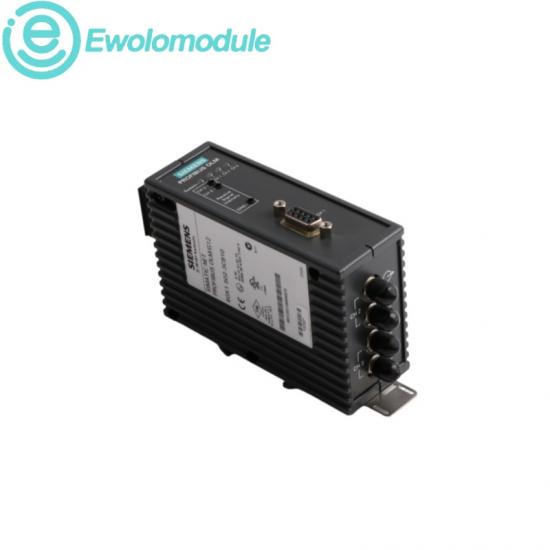

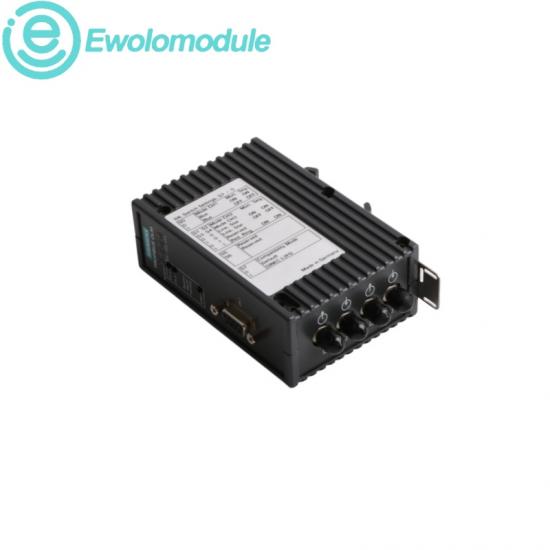

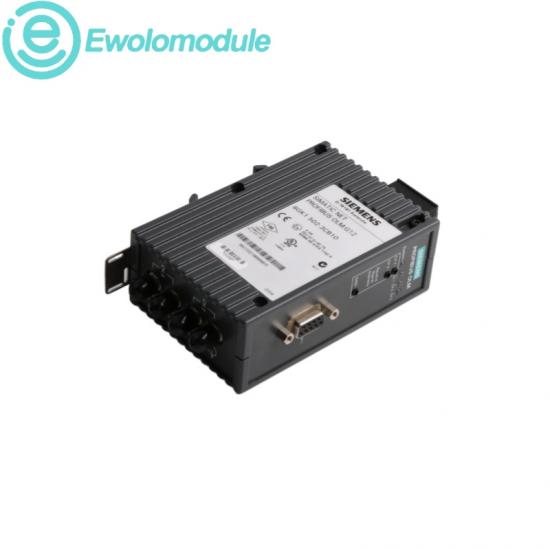

6GK1502-3CA10

PROFIBUS OLM/P12 V3.1 Optical Link Module

1× RS4852× Plastic FOC4× BFOC

PRODUCT SNAPSHOT

An OLM/P12 V3.1 communication module that couples one electrical PROFIBUS RS485 segment to two plastic-fiber optical channels through four BFOC sockets.

A signaling contact and test port support service work. Four BFOC connectors are included, and Siemens identifies 6GK1503-3CA01 as the successor.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

DIAGNOSTICS · PROTECTION · COMMISSIONING

Reliable operation with structured installation guidance

◆ Diagnostic protection

The signaling contact provides external indication of module or link status.
The integrated test port supports optical-level checks during commissioning and service.
Separate electrical and optical interfaces help localize cable and segment faults.
Dual optical channels support structured and redundant PROFIBUS fiber layouts.

◆ Installation & upgrade

Connect the electrical PROFIBUS segment to the single RS485 interface.
Terminate the two plastic-fiber channels at the four BFOC sockets.
Use the four included BFOC connectors and observe the specified fiber preparation.
For migration, compare the installed network with successor 6GK1503-3CA01.

OFFICIAL TECHNICAL DATA

Product type
PROFIBUS optical link module

Version
OLM/P12 V3.1

Electrical interface
1× RS485

Optical interfaces
2× plastic FOC

Optical sockets
4× BFOC

Service features
Signaling contact and test port

Included accessories
4 BFOC connectors

Lifecycle
End of lifecycle since 2019

Technical content is based on Siemens documentation for this exact order code. Installation and validation must follow the applicable Siemens manuals.

BRAND STRENGTH · APPLICATION MAP

Industrial integration and application guidance

Siemens brand characteristics

Integrated engineering across controllers, distributed I/O, communication and safety systems.
Documented diagnostics support structured commissioning, maintenance and replacement work.
Long lifecycle support and defined migration paths serve established automation platforms.
Broad industrial portfolio supports machine, process and infrastructure applications.

Application fields

PROFIBUS optical backbones in production plants.
Electrical-to-plastic-fiber segment conversion.
Redundant machine and process communication networks.
Modernization of installed OLM/P12 V3.1 systems.
