SIEMENS · PRODUCT DETAILS

6ES7532-5HD00-0AB0

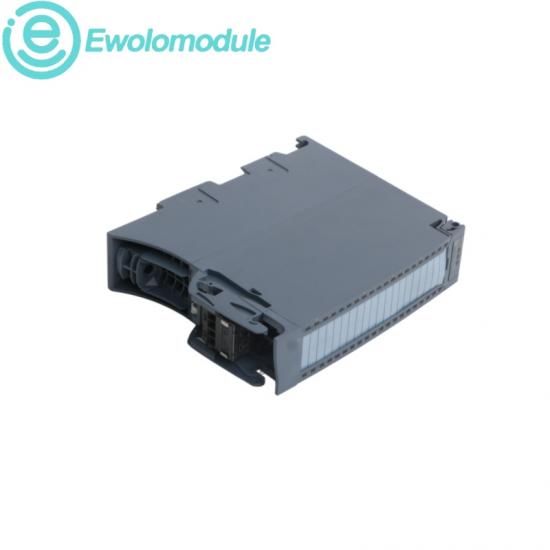

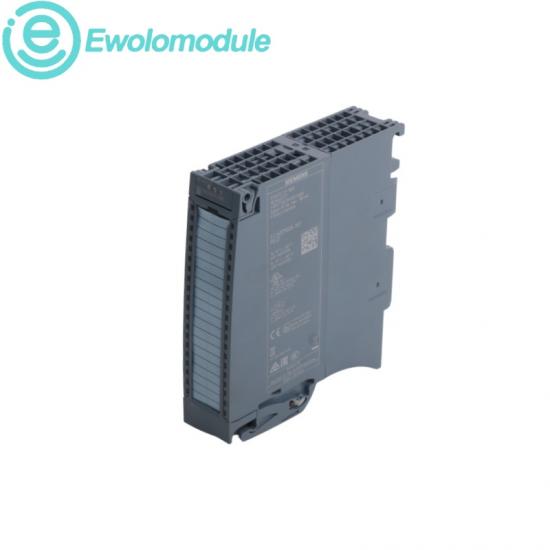

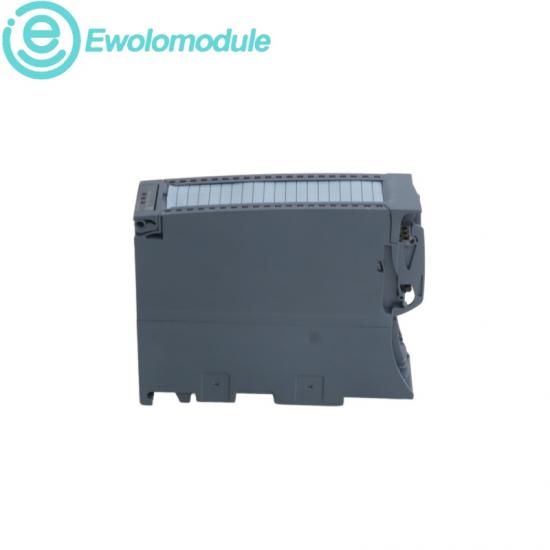

SIMATIC S7-1500 SM 532 AQ 4xU/I ST Analog Output Module

4 AO16-bit0.3% Accuracy

PRODUCT SNAPSHOT

A four-channel voltage/current analog output module for SIMATIC S7-1500 systems, offering 16-bit resolution and 0.3% accuracy for precise actuator and process-signal control.

The four channels form one group and support diagnostics and substitute values. The module also supports safety-oriented load-group shutdown up to SIL 2 and Category 2 / PL c.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

DIAGNOSTICS · PROTECTION · COMMISSIONING

Reliable operation with structured installation guidance

◆ Diagnostic protection

Integrated channel diagnostics support rapid localization of analog-output faults.
Configured substitute values define controlled behavior when communication is interrupted.
The 16-bit conversion and 0.3% accuracy support stable output monitoring.
Safety-oriented load-group shutdown is supported up to SIL 2 and Category 2 / PL c.

◆ Installation & upgrade

Install the module in an approved SIMATIC S7-1500 station and assign it in TIA Portal.
Wire voltage or current outputs using the selected channel parameterization.
Fit the supplied infeed element, shielding bracket and shield terminal.
Order the required screw-terminal or push-in front connector separately.

OFFICIAL TECHNICAL DATA

Module
AQ 4xU/I ST

Output channels
4 voltage/current outputs

Resolution
16 bit

Accuracy
0.3%

Channel grouping
4 channels in one group

Diagnostics
Supported

Substitute value
Supported

Safety shutdown
Up to SIL 2 / Cat. 2 PL c

Technical content is based on Siemens documentation for this exact order code. Installation and validation must follow the applicable Siemens manuals.

BRAND STRENGTH · APPLICATION MAP

Industrial integration and application guidance

Siemens brand characteristics

Integrated engineering across controllers, distributed I/O, communication and safety systems.
Documented diagnostics support structured commissioning, maintenance and replacement work.
Long lifecycle support and defined migration paths serve established automation platforms.
Broad industrial portfolio supports machine, process and infrastructure applications.

Application fields

Analog actuator control in machine automation.
Valve, drive and process-setpoint output applications.
SIMATIC S7-1500 production and packaging systems.
Safety-oriented shutdown of analog load groups.
