PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER6GK1901-1BB10-2AA0

OFFICIAL PRODUCT NAME

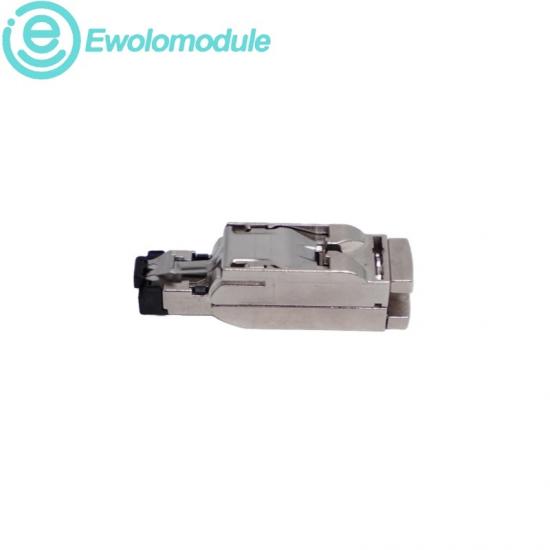

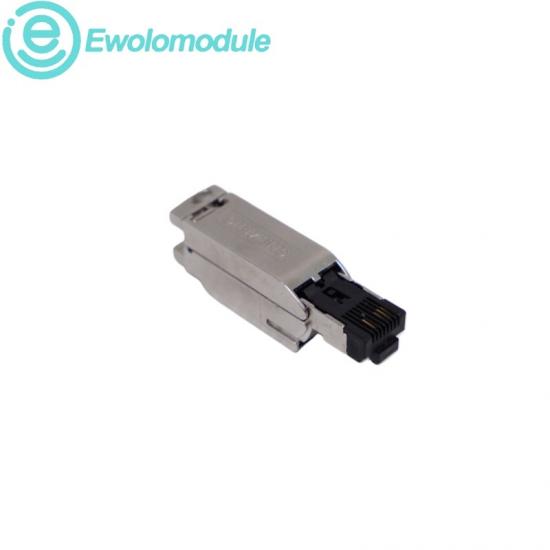

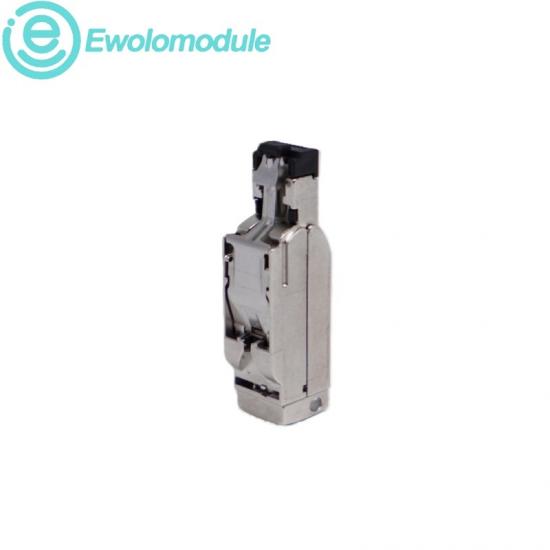

SIMATIC NET IE FC RJ45 Plug 180 (2x2)

Rugged metal FastConnect RJ45 plug for four-wire Industrial Ethernet cable, supporting 10/100 Mbit/s transmission, a 180° outlet and reusable field termination.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

INSTALLATION, UPGRADES & FIRMWARE

DATA RATE10/100 Mbit/s

CABLE OUTLET180°

ENCLOSUREMetal

CABLE TYPEIE FC TP 2x2

INSTALLATION & UPGRADE

FIRMWARE & UPDATES

01Prepare the compatible four-wire IE FastConnect cable with the specified stripping tool.

PASSIVE PLUGThe RJ45 connector contains no firmware, software or configuration data.

02Place the conductor pairs in the marked cut-and-clamp contact channels.

UPDATE SCOPENo update is required; maintenance concerns contacts, shield and mechanical condition.

03Close the metal enclosure and maintain the 180° cable exit without excess strain.

NETWORK CHECKVerify link negotiation, conductor continuity and shield bonding after replacement.

04Test link status and Ethernet communication before returning equipment to service.

REUSE CONTROLInspect the contacts and enclosure before reuse; Siemens specifies limited reuse cycles.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ FastConnect cut-and-clamp contacts streamline four-wire field termination.

◆ Industrial Ethernet links in automation and machine networks.

◆ The metal enclosure provides a robust industrial connector body.

◆ RJ45 connections for SIMATIC controllers and communication equipment.

◆ A straight 180° outlet supports orderly cable routing.

◆ Control-cabinet and field-device cable assembly.

◆ Siemens data confirms PoE capability and environmental range.

◆ Maintenance replacement of reusable FastConnect network plugs.
