PRODUCT DETAILS

6GK5201-3JR00-2BA6

SCALANCE X201-3P IRT PRO Managed Industrial Ethernet Switch

PRODUCT IDENTITY

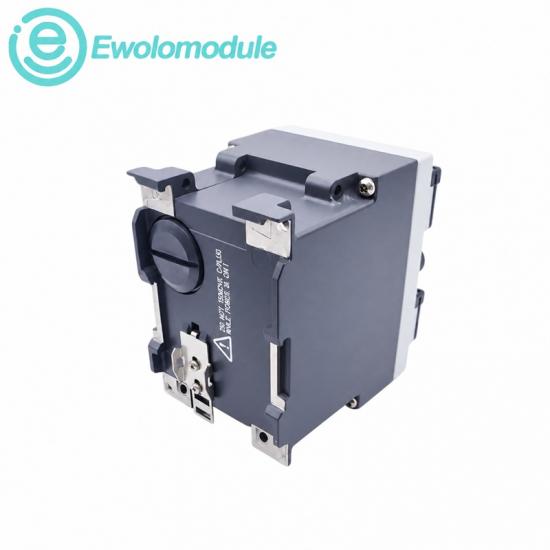

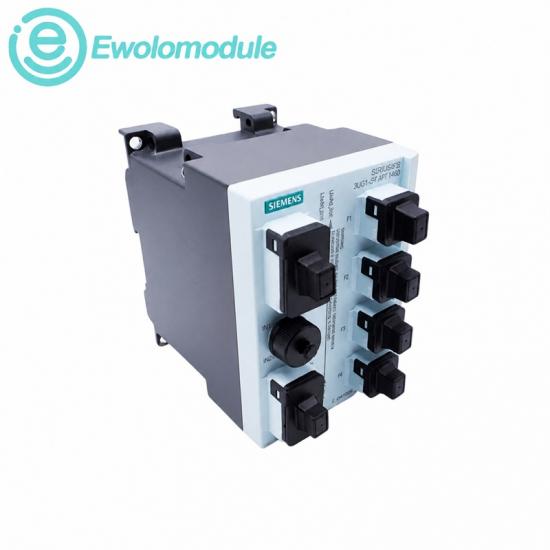

Siemens 6GK5201-3JR00-2BA6 SCALANCE X201-3P IRT PRO Managed Industrial Ethernet Switch

A rugged managed PROFINET IRT switch combining one 10/100 Mbit/s RJ45 port, three 100 Mbit/s POF SC-RJ ports and integrated redundancy management.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆CE and KC approvals are documented for the X201-3P IRT PRO

◆UL 60950-1 and CSA C22.2 No. 60950-1 safety approvals are listed

◆CCC hazardous-location approval is documented for the product variant

◆RCM supplier declaration includes 6GK5201-3JR00-2BA6

COMPATIBILITY & INTEROPERABILITY

◆PROFINET IO and IRT communication for deterministic industrial networks

◆One push-pull RJ45 port and three push-pull SC-RJ POF ports

◆MRP and high-speed ring redundancy with integrated redundancy manager

◆Optional C-PLUG retains configuration for service replacement

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

X201-3P IRT PRO

COPPER PORTS

1 × RJ45 push-pull

OPTICAL PORTS

3 × SC-RJ push-pull

TRANSFER RATE

10 / 100 Mbit/s

SUPPLY VOLTAGE

24 V DC; 18–32 V

MAX. CURRENT

0.33 A

POWER LOSS

7.92 W

SIGNAL CONTACT

24 V DC / 0.1 A max.

PROTECTION CLASS

IP65

OPERATING TEMPERATURE

-25 to +60 °C

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆Record hardware version and firmware before performing a service update

◆Assign PROFINET device name, IP parameters and IRT topology in STEP 7

◆Back up the configuration to C-PLUG or the engineering station

◆Configure management and diagnostics through the supported web or CLI interface

◆Use only Siemens firmware approved for the installed X200 IRT PRO hardware release

◆Set the redundancy manager and MRP / HRP roles consistently across the ring
