PRODUCT DETAILS

6ES7335-7HG01-0AB0

SIMATIC S7-300 SM 335 Analog Input/Output Module

PRODUCT IDENTITY

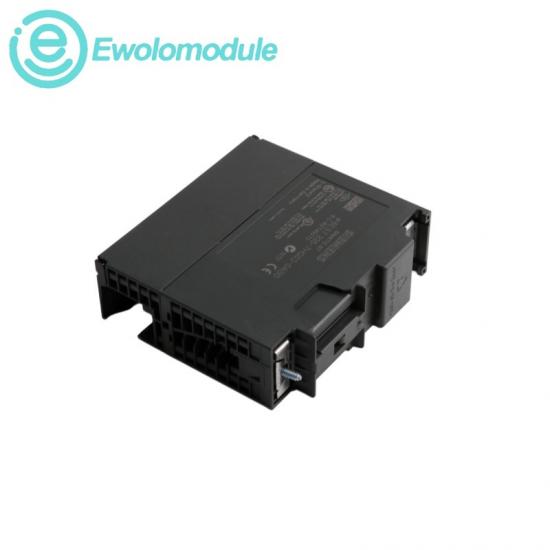

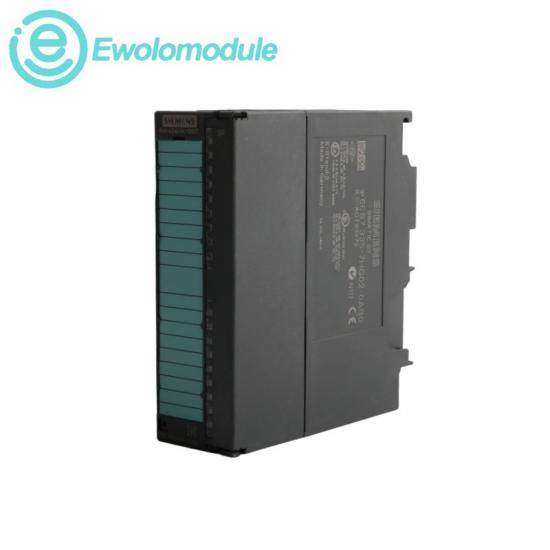

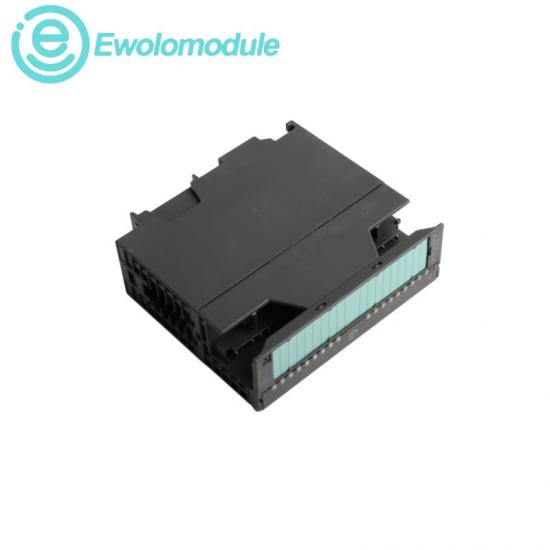

Siemens 6ES7335-7HG01-0AB0 SIMATIC S7-300 SM 335 Analog Input/Output Module

A high-speed mixed analog signal module providing four 14-bit inputs and four 11/12-bit outputs for precision S7-300 measurement and control.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆CE labeling is documented for the SIMATIC S7-300 signal-module family

◆UL and CSA approvals apply within the documented S7-300 installation conditions

◆FM approval is covered by the applicable SIMATIC S7-300 system documentation

◆The module uses a 20-pin front connector specified by Siemens

COMPATIBILITY & INTEROPERABILITY

◆Designed for the SIMATIC S7-300 backplane and signal-module architecture

◆Can be used in supported ET 200M distributed I/O configurations

◆Successor 6ES7335-7HG02-0AB0 is documented as compatible with this module

◆Requires the Siemens 20-pin S7-300 front connector

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SM 335

MODULE TYPE

Mixed analog I/O

ANALOG INPUTS

INPUT RESOLUTION

14 bit

ANALOG OUTPUTS

OUTPUT RESOLUTION

11 / 12 bit

ISOLATION

Optically isolated U/I

DIAGNOSTICS

Integrated

INTERRUPT

Supported

FRONT CONNECTOR

20-pin

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆No separate field-firmware update is specified for this signal module

◆Insert the SM 335 in the configured S7-300 or ET 200M slot

◆Preserve the STEP 7 hardware configuration and channel parameters before replacement

◆Set input and output ranges plus diagnostic and interrupt behavior in STEP 7

◆When migrating to 6ES7335-7HG02-0AB0, follow the documented noise-filter difference

◆Wire all channels through the specified 20-pin front connector
