PRODUCT DETAILS

6ED1052-1FB00-0BA6

LOGO! 230RC Logic Module

PRODUCT IDENTITY

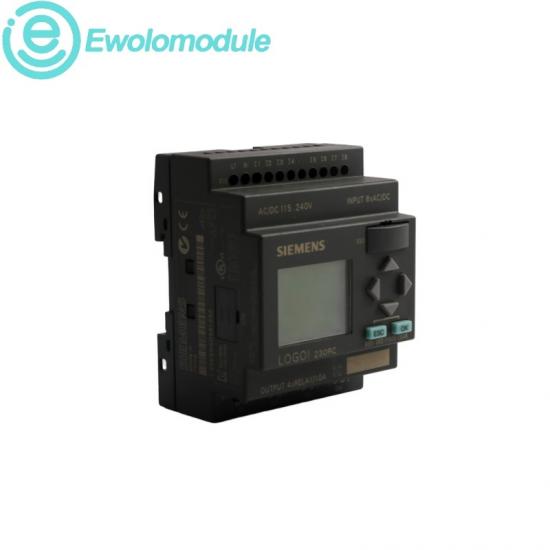

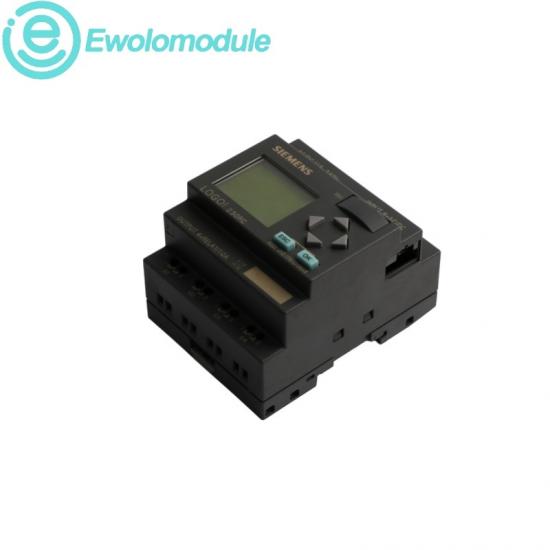

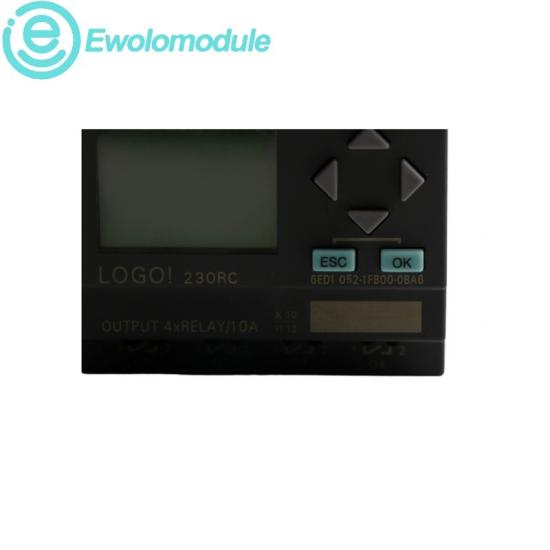

Siemens 6ED1052-1FB00-0BA6 LOGO! 230RC Logic Module

A compact DIN-rail logic controller for 115/230 V AC/DC systems, combining local display operation, relay outputs and modular expansion.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆Developed in accordance with IEC 61131

◆UL, CSA and FM approvals are documented for the LOGO! 230RC variant

◆Designed in accordance with VDE 0631 requirements

◆Marine approvals and EN 55011 Class B emissions are documented

COMPATIBILITY & INTEROPERABILITY

◆Expands through the LOGO! side-bus with supported digital and analog modules

◆Configured with the matching LOGO! Soft Comfort generation

◆Integrated display and keypad support local parameter and status access

◆Mounts on a 35 mm DIN rail and occupies four spacing units

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

LOGO! 230RC

DISPLAY

Integrated

RATED SUPPLY

115 / 230 V AC/DC

DC SUPPLY RANGE

100–253 V DC

LINE FREQUENCY

47–63 Hz

DIGITAL INPUTS

DIGITAL OUTPUTS

4 relay outputs

PROGRAM MEMORY

200 function blocks

RESISTIVE LOAD

10 A max.

DEGREE OF PROTECTION

IP20

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆No separate field-firmware update workflow is documented for this LOGO! 0BA6 base module

◆Create the logic program with the matching LOGO! Soft Comfort version

◆Back up the control program before device replacement or migration

◆Use function-block or ladder-based logic and download through the supported programming cable

◆Check expansion-module and project compatibility before moving to a newer LOGO! generation

◆Verify input voltage class and relay-load ratings before commissioning

6ED1052-1FB00-0BA6 Logic Module

LOGO Module Datasheet
