PRODUCT DETAILS · SIEMENS

6GK5204-0BA00-2BF2

SCALANCE XF204IRT Managed IRT Switch

PRODUCT SERIES

SIMATIC NET SCALANCE X-200IRT

PRODUCT IDENTITY

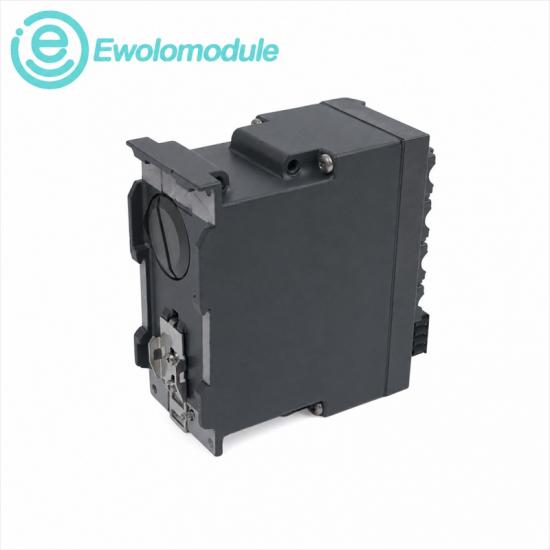

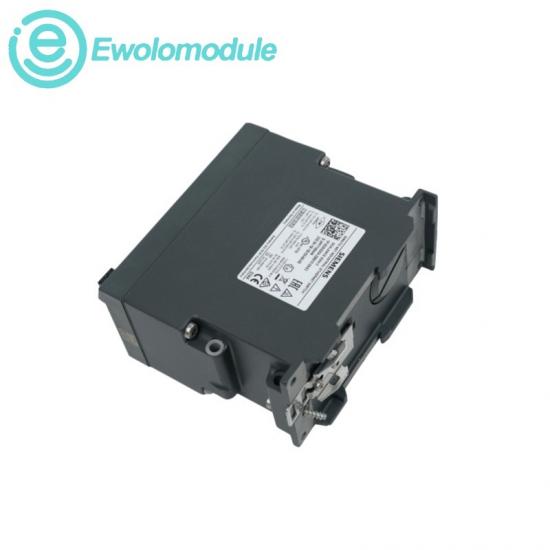

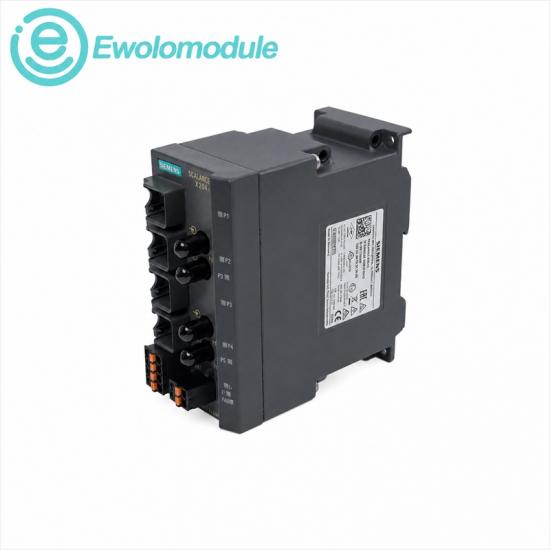

Siemens 6GK5204-0BA00-2BF2 SCALANCE XF204IRT Managed Industrial Ethernet IRT Switch is a flat managed Industrial Ethernet switch with four 10/100 Mbit/s RJ45 ports for deterministic PROFINET IRT networks.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The SCALANCE XF204IRT combines PROFINET IO device operation, Conformance Class C switching and integrated ring-redundancy management in a compact DIN-rail housing. Network management, redundant 24 V DC inputs, a signaling contact and optional C-PLUG storage support deterministic motion-control networks and service-friendly replacement.

CERTIFICATIONS & STANDARDS

CE marking

ATEX · KEMA 07 ATEX 0145 X

cULus HazLoc / FM Class I Division 2

Marine approvals · ABS, BV, DNV, LR, NK, RINA

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION SCALANCE XF204IRT	SWITCH TYPE Managed Layer 2 Industrial Ethernet IRT
TRANSFER RATE 10/100 Mbit/s	NETWORK PORTS 4 × RJ45
PROFINET CAPABILITY IO device; IRT; Conformance Class C	SUPPLY VOLTAGE 24 V DC; 18–32 V permissible
CURRENT CONSUMPTION Maximum 0.2 A	POWER LOSS 4.8 W
REMOVABLE STORAGE C-PLUG supported	REDUNDANCY MRP / HRP; integrated redundancy manager

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

LED diagnostics, a signaling contact, PROFINET alarms and managed-network functions support rapid isolation of port, power and ring-redundancy faults.

OPERATING ENVIRONMENT

The flat switch mounts on a 35 mm DIN rail and is specified for industrial operation from -40 to +60 °C in a suitable protected enclosure.

Model identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
