Product Details

SIEMENS

Official product name

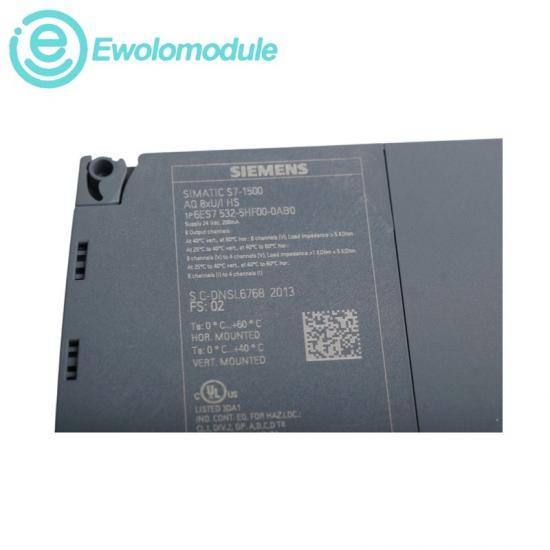

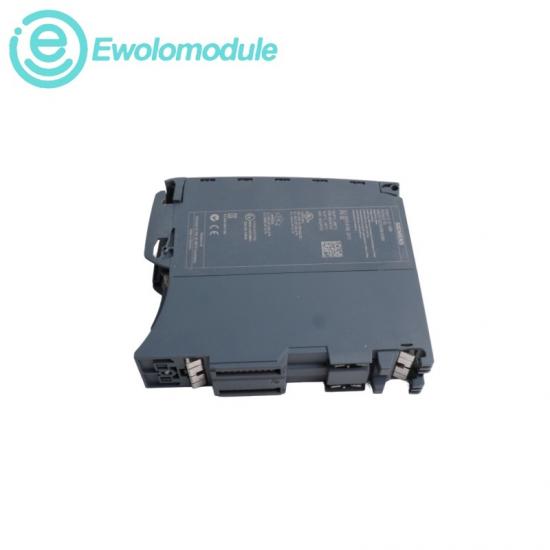

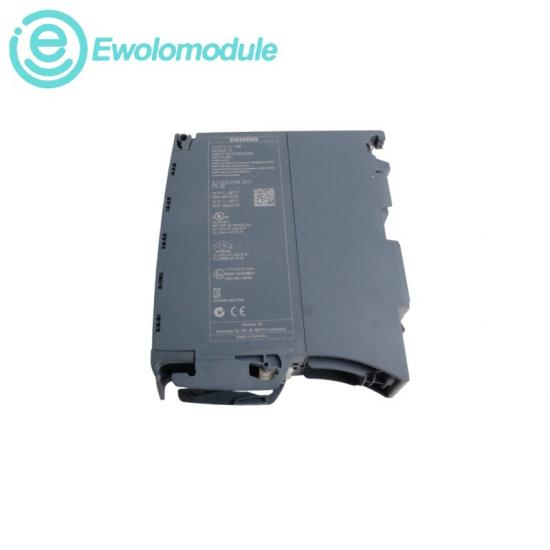

SIMATIC S7-1500 AQ8xU/I HS Analog Output Module

Article number
6ES7532-5HF00-0AB0

Series
SIMATIC S7-1500 / SM 532

Description
High-speed eight-channel voltage/current analog output module with 16-bit resolution and diagnostics.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule
6ES7351-1AH01-0AE0 6ES7511-1CK00-0AB0 6ES7331-7TF00-0AB0

Specifications / Official engineering data

AQ8xU/I HS official engineering profile

The AQ8xU/I HS module supplies eight configurable voltage or current outputs for high-speed SIMATIC S7-1500 applications. It combines 16-bit resolution, diagnostics, substitute values and 125 µs minimum cycle time with support for safety-oriented load-group shutdown.

Official technical data
Article number	6ES7532-5HF00-0AB0	Product type	AQ 8xU/I HS
Analog outputs	8	Resolution	16 bit
Accuracy	0.3%	Minimum cycle	125 µs
Supply voltage	24 V DC	Current consumption	320 mA max.
Power loss	7 W typical	Safety shutdown	SIL 2 / PL d

Product positioning	High-speed SIMATIC S7-1500 analog output module for precise voltage and current control.
Suffix meaning	The complete article number identifies the eight-channel high-speed SM 532 hardware configuration.
System relationship	Operates in central S7-1500 racks or ET 200MP stations and is configured with STEP 7 TIA Portal.

Recommand / Application and related models

Application & deployment
Process control Generates precise analog setpoints for valves and actuators.	Test systems Supports fast multi-channel signal updates and diagnostics.	Machine automation Controls drives and proportional devices in S7-1500 cells.

Installation

Install in an S7-1500 or ET 200MP station with the supplied infeed and shielding parts; order the compatible front connector separately.

Upgrade path

Confirm channel wiring, range configuration, TIA Portal version and safety-shutdown requirements before substitution.
