PRODUCT DETAILS

6GK5204-2AA00-2YF2

SCALANCE XF204-2BA DNA Managed Industrial Ethernet Y-Switch

PRODUCT IDENTITY

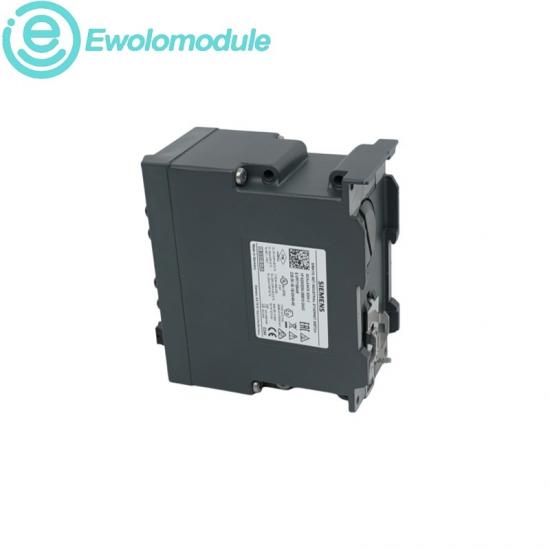

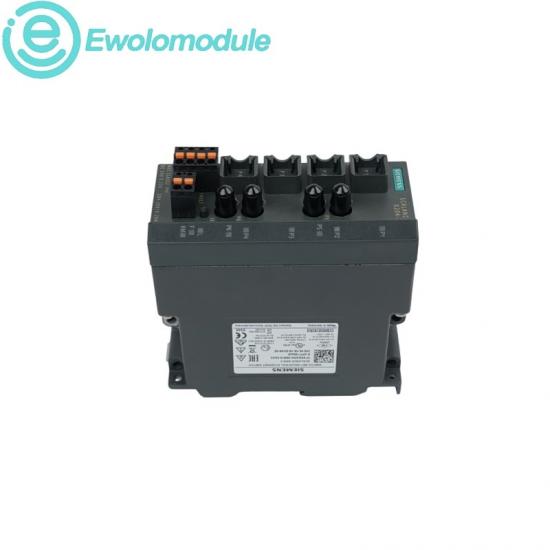

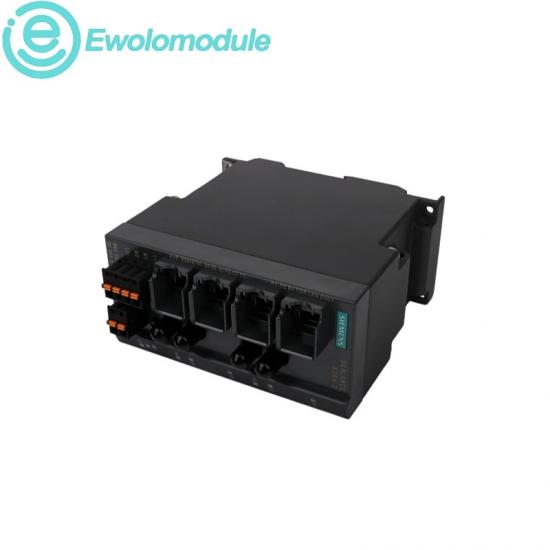

Siemens 6GK5204-2AA00-2YF2 SCALANCE XF204-2BA DNA Managed Industrial Ethernet Y-Switch

A managed four-port Fast Ethernet Y-switch for connecting PROFINET S2 devices to redundant R1 automation systems through two BusAdapter interfaces.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

Specifications

DIAGNOSTICS & PROTECTION

LEDs indicate supply, fault and redundancy status. The signaling contact supports a locally configurable mask, while PROFINET, SNMP and web diagnostics provide fault reporting and email alerts. Redundant supply, MRP and conformal coating improve availability.

INSTALLATION & UPGRADE

Snap the switch onto a standard 35 mm DIN rail and fit two approved BusAdapters for copper, fiber or VD media. An optional C-PLUG supports device replacement, and Siemens documents configuration changes in operation through CiR and H-CiR.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATIONSCALANCE XF204-2BA DNA

ETHERNET PORTS4 × 10/100 Mbit/s through 2 BusAdapters

NETWORK ROLEPROFINET IO device

POWER SUPPLYRedundant 24 V DC

INPUT VOLTAGE19.2 to 28.8 V DC

MAXIMUM CURRENT0.36 A

POWER LOSS8.6 W at 24 V

SIGNALING CONTACT24 V DC, maximum 0.1 A

CONFIGURATION MEDIUMC-PLUG optional

ENCLOSURE RATINGIP20

Recommand

OPERATING ENVIRONMENT

Operating range is -40 to +70 °C; storage and transport range is -40 to +85 °C. Relative humidity is up to 95% at 25 °C, non-condensing, with installation altitude up to 4000 m. Enclosure rating is IP20.

MONITORING & CONTROL

STEP 7, TIA Portal and PCS 7 support diagnostics. The device also provides a web server, CLI, SNMP v1/v2/v3, port and error statistics, and integration with SINEMA Server or SINEC NMS for centralized monitoring and firmware management.
