PRODUCT DETAILS

6SE7090-0XX84-3DB1

DTI Digital Tachometer Interface Board

PRODUCT IDENTITY

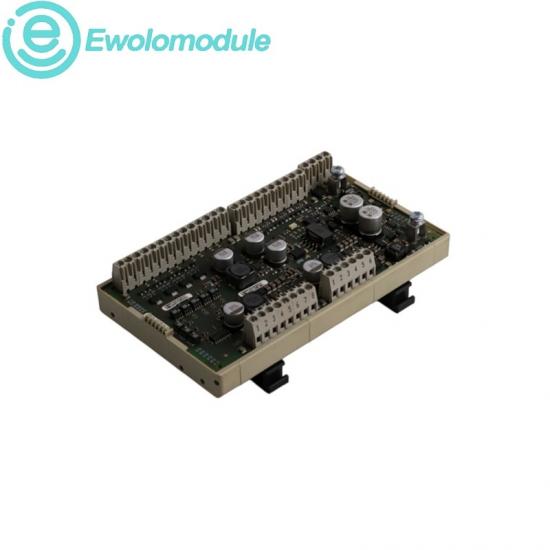

Siemens 6SE7090-0XX84-3DB1 SIMOVERT MASTERDRIVES DTI Digital Tachometer Interface Board

A DTI interface board for connecting galvanically isolated TTL or HTL digital tachometers to SIMOVERT MASTERDRIVES control electronics.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

Specifications

DIAGNOSTICS & PROTECTION

A dedicated tachometer-monitoring track supports encoder feedback supervision. Galvanically isolated inputs separate field signals from the controller. Use screened cables with shield grounding at both ends; enclosure protection must be provided by the host cabinet and condensation is not permitted.

INSTALLATION & UPGRADE

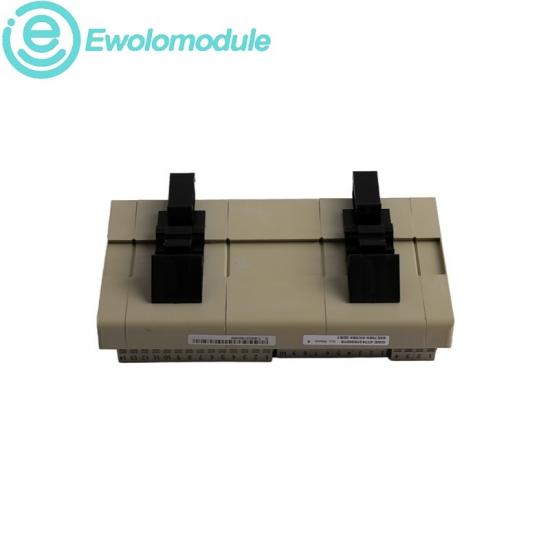

Snap the DTI board onto its mounting rail and connect either X401 for TTL or X402 for HTL, never both. Use screened cables and an isolated external 24 V supply where required. Configure the applicable SIMOVERT parameters for the installed controller and slot.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATIONDTI Digital Tachometer Interface

TTL INPUT5 V

HTL INPUT11 to 30 V

INPUT ISOLATIONGalvanically isolated

INTERNAL SUPPLY15 V DC, 160 mA

EXTERNAL SUPPLY24 V DC, -16% / +25%

MAXIMUM ENCODER LOAD300 mA HTL; 400 mA TTL

INPUT CURRENT12 mA HTL; 42 mA TTL

SIGNAL FREQUENCY LIMIT400 kHz

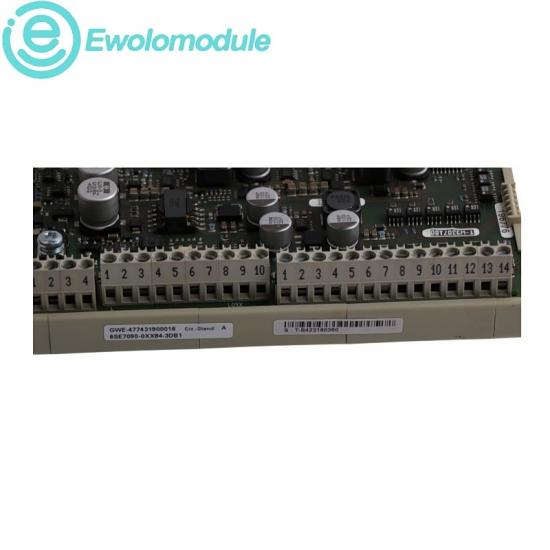

CONNECTORSX401, X402, X403, X404 and X405

Recommand

OPERATING ENVIRONMENT

Operating temperature is 0 to +55 °C; storage and transport range is -25 to +70 °C. Environmental classes are 3K3 and 3C2, pollution degree 2, overvoltage category II and IP00. Condensation is not permitted.

MONITORING & CONTROL

Pulse tracks A and B plus the tachometer-monitoring signal are forwarded to CU2, CUVC, CUVP or TSY electronics. Encoder status and speed feedback are evaluated through the configured SIMOVERT drive parameters.

6SE7090-0XX84-3DB1

Siemens 6SE7090-0XX84-3DB1

6SE7090-0XX84-3DB1 DTI Board

SIMOVERT MASTERDRIVES

Digital Tachometer Interface

Siemens DTI Datasheet
