PRODUCT DETAILS

6SE7041-3TL84-1JC0

IGD9 Inverter Control Board

PRODUCT IDENTITY

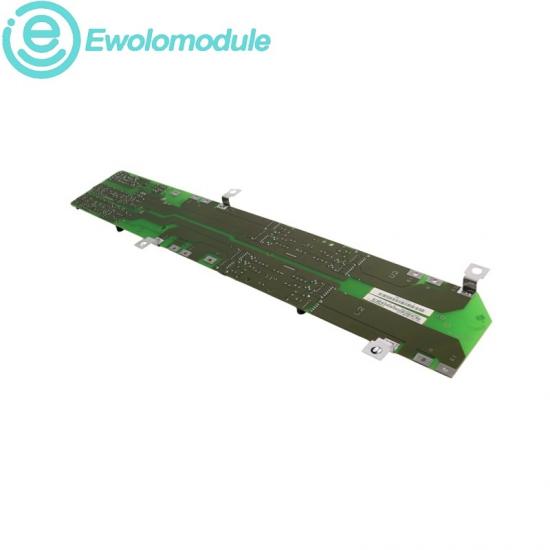

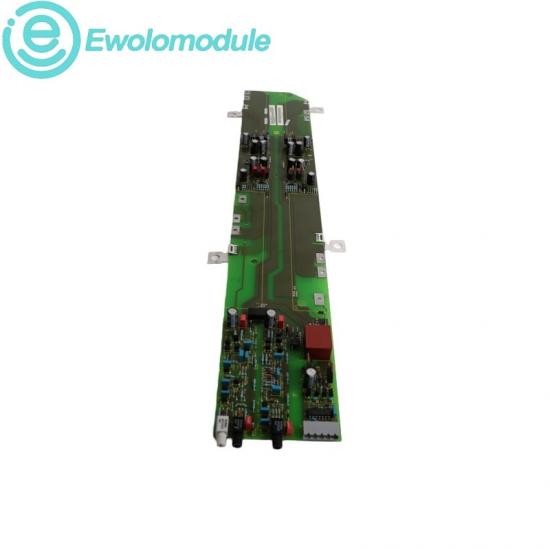

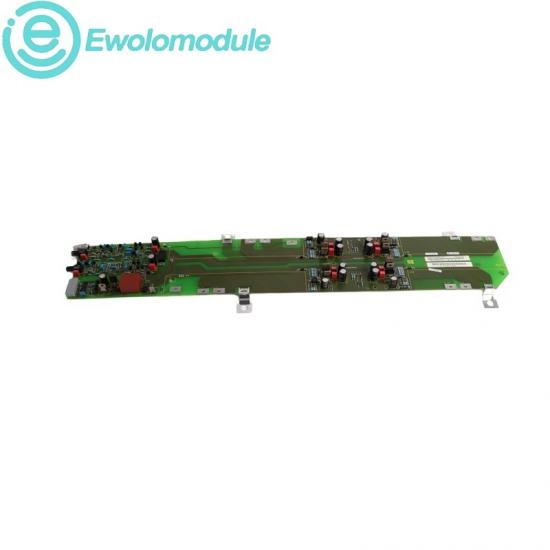

Siemens 6SE7041-3TL84-1JC0 SIMOVERT MASTERDRIVES IGD9 Inverter Control Board

A legacy IGD9 inverter-control spare board for a SIMOVERT MASTERDRIVES 510–620 V DC, 1300 A host drive configuration.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

Specifications

DIAGNOSTICS & PROTECTION

Drive fault monitoring and protection are handled by the connected SIMOVERT MASTERDRIVES host. Before service, isolate the equipment and fully discharge the DC link. Verify the exact host rating and hardware revision before installing a replacement board.

INSTALLATION & UPGRADE

Replace the board only in the documented 510–620 V DC, 1300 A host configuration and match the complete MLFB. Siemens identifies 6SE7041-3TL84-1JC1 as the successor, so replacement requires compatibility confirmation rather than one-code substitution.

OFFICIAL TECHNICAL DATA

ARTICLE NUMBER6SE7041-3TL84-1JC0

PRODUCT DESIGNATIONIGD9

PRODUCT TYPEInverter control board

HOST DC-LINK RANGE510 to 620 V DC

HOST CURRENT1300 A

SPARE-PART ROLEDrive inverter control and gating

SUCCESSOR6SE7041-3TL84-1JC1

LIFECYCLE STATUSDiscontinued legacy spare

DISCONTINUATION DATE2007-10-09

COUNTRY OF ORIGINGermany

Recommand

OPERATING ENVIRONMENT

The board operates inside its SIMOVERT MASTERDRIVES host. Apply the cabinet, cooling, contamination and electrical-isolation conditions specified for the complete drive; no independent product-level temperature limits were confirmed.

MONITORING & CONTROL

The board provides the inverter gating and control interface within the host drive. Operating state, faults and protective events are evaluated by the SIMOVERT MASTERDRIVES control electronics rather than by an independent network interface.

6SE7041-3TL84-1JC0

Siemens 6SE7041-3TL84-1JC0

6SE7041-3TL84-1JC0 IGD9

SIMOVERT MASTERDRIVES

Inverter Control Board

Siemens Drive Spare Board
