SIEMENS · SIMATIC NET · PROFIBUS

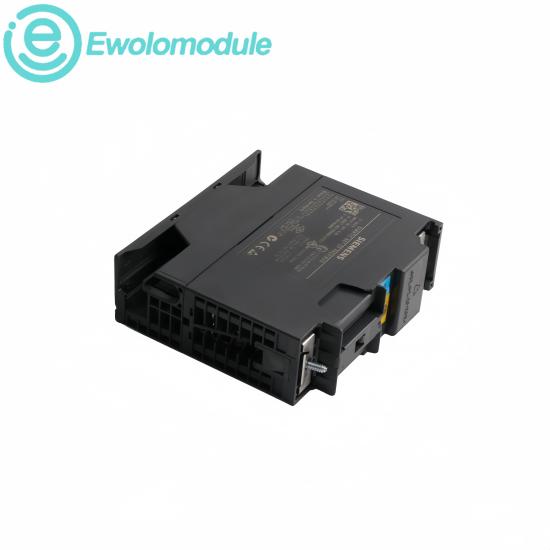

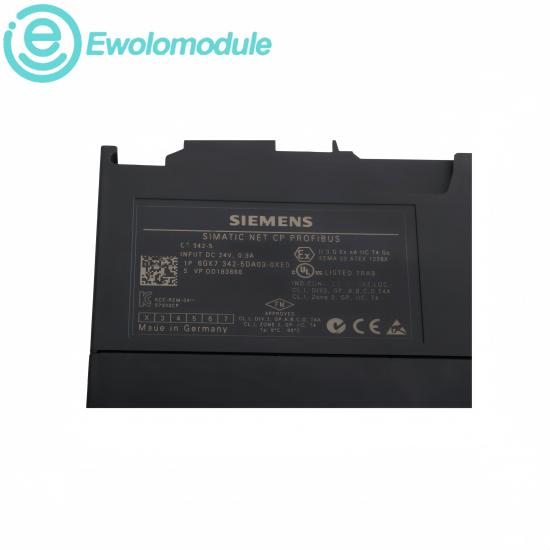

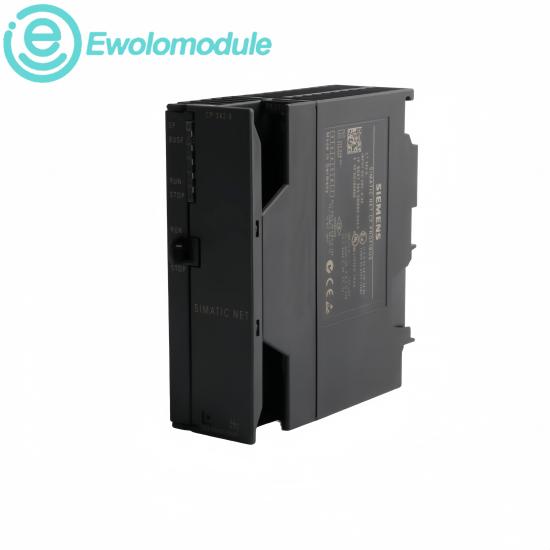

6GK7342-5DA03-0XE0

CP 342-5 Communications Processor

Siemens 6GK7342-5DA03-0XE0 is a SIMATIC NET communication processor that connects SIMATIC S7-300 systems to PROFIBUS for DP, S7 and PG/OP communication.

BRAND Siemens	PRODUCT SERIES SIMATIC NET CP 342-5 / S7-300
WARRANTY One year	AVAILABILITY In stock

RELATED MODELS ON EWOLOMODULE

6GK5124-0BA00-2AA3 ↗6GK1161-6AA00 ↗

02 · SPECIFICATIONS

PROFIBUS Coordination for Legacy S7-300 Systems

PRODUCT DESCRIPTION

Built as a dedicated fieldbus processor, the CP can operate as either a PROFIBUS DP master class 1 or a DP slave. It also handles S7, PG/OP and S5-compatible services, while configuration stored in the CPU can support module replacement without reloading from a programming device. Exact article number, firmware and STEP 7 compatibility should be checked before replacement.

SYSTEM COMPATIBILITY

SIMATIC S7-300 Standard, Compact and Modular CPUs
SIMATIC C7 compact units
SINUMERIK systems
S7-300, S7-400 and PG/PC communication partners

OFFICIAL TECHNICAL DATA

PRODUCT TYPE CP 342-5	TRANSFER RATE 9.6 kbit/s–12 Mbit/s
PROFIBUS PORT 1 electrical interface	CONNECTOR 9-pin Sub-D socket, RS485
POWER CONNECTION 4-pole terminal block	SUPPLY VOLTAGE 5 V backplane / 24 V DC external
TYPICAL CURRENT 0.15 A at 5 V / 0.25 A at 24 V	POWER LOSS 6.75 W
AMBIENT TEMPERATURE Operation: 0–60 °C; storage and transport: −40–+70 °C	ENVIRONMENTAL PROTECTION IP20; maximum 95% RH at 25 °C, non-condensing

PRODUCT FEATURES

◆ Selectable DP master class 1 or DP slave operation
◆ S7 communication and PG/OP engineering services
◆ S5-compatible SEND/RECEIVE communication
◆ Configuration storage for replacement without PG

CONNECTION PATH

S7-300 CPU

›

CP 342-5

›

PROFIBUS DP

Connects distributed I/O, drives, HMI/OP stations and compatible PROFIBUS devices to the S7-300 control layer.

Selectable DP role

CPU-stored configuration

Legacy S7-300 integration

03 · RECOMMAND

Fieldbus Continuity for Installed Automation

INDUSTRY APPLICATIONS

Used in manufacturing lines, process plants, material handling, packaging, water treatment and other installations where S7-300 controllers coordinate PROFIBUS I/O, drives and operator equipment.

INSTALLATION AND UPGRADE

Install in the S7-300 rack, connect the 24 V supply and 9-pin PROFIBUS interface, then load the verified STEP 7 configuration. For replacement, retain the exact article number and firmware context; CPU-stored configuration can support replacement without a programming device.
