PRODUCT DETAILS · SIEMENS SINAMICS S120

6SL3040-1MA00-0AA0

CU320-2 DP Control Unit

PRODUCT IDENTITY

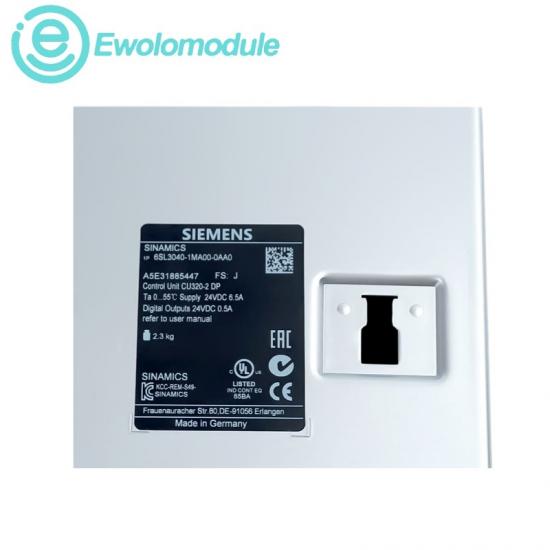

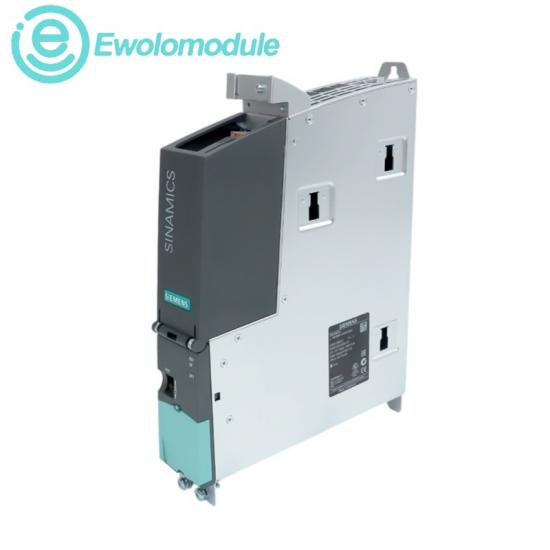

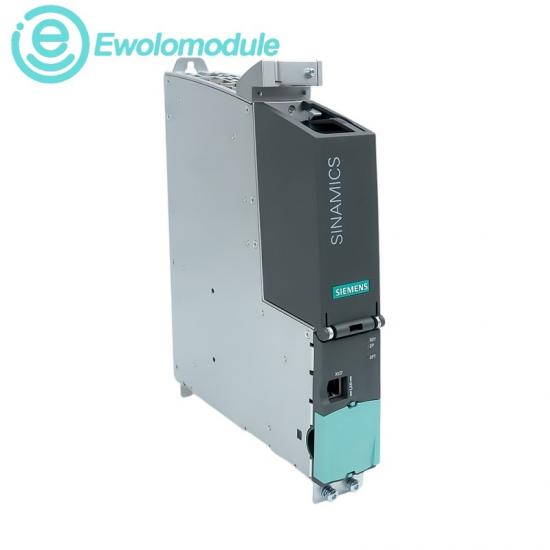

Siemens 6SL3040-1MA00-0AA0 SINAMICS CU320-2 DP Control Unit provides PROFIBUS-based coordination for connected SINAMICS drive components and is supplied without a CompactFlash card.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Control architecture and connectivity

PRODUCT DESCRIPTION

The CU320-2 DP is the central control component for SINAMICS S120 multi-axis drive systems. It processes drive-control functions, coordinates DRIVE-CLiQ components and exchanges automation data through its PROFIBUS DP interface. A separate SINAMICS CompactFlash card is required for firmware and parameter storage.

SYSTEM COMPATIBILITY

◆ SINAMICS S120 drive system

◆ PROFIBUS DP automation network

◆ DRIVE-CLiQ connected components

◆ Separate CompactFlash card required

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION CU320-2 DP	PRODUCT FAMILY SINAMICS S120
COMMUNICATION PROFIBUS DP	DRIVE-CLiQ INTERFACES 4
DIGITAL INPUTS 12	ELECTRONICS SUPPLY 24 V DC (20.4–28.8 V)
CURRENT CONSUMPTION Max. 1.0 A	POWER LOSS Max. 24 W
OPERATING TEMPERATURE 0–55 °C	INSTALLATION ALTITUDE Up to 2,000 m

RECOMMAND · APPLICATION GUIDANCE

Operation guidance and related models

DIAGNOSTICS & PROTECTION

Use status indicators and the connected engineering environment to identify PROFIBUS, DRIVE-CLiQ or configuration faults before replacing the control unit.

OPERATING ENVIRONMENT

Designed for cabinet installation in SINAMICS S120 drive systems; observe the official 0–55 °C operating range, grounding and ventilation requirements.

From identification to secure dispatch

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
