Product Details

Official product profile

6DL1136-6BA00-0PH1

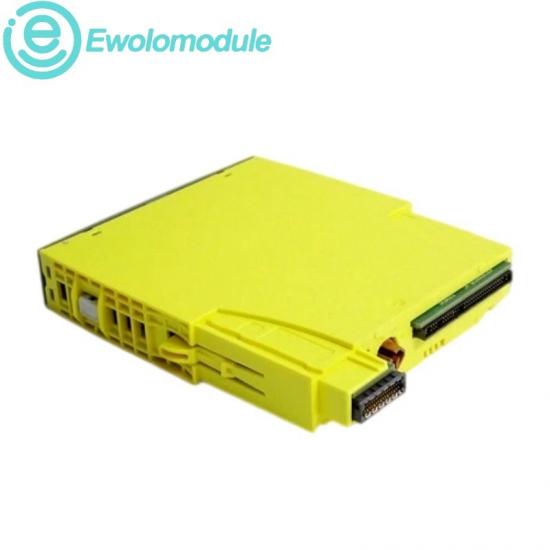

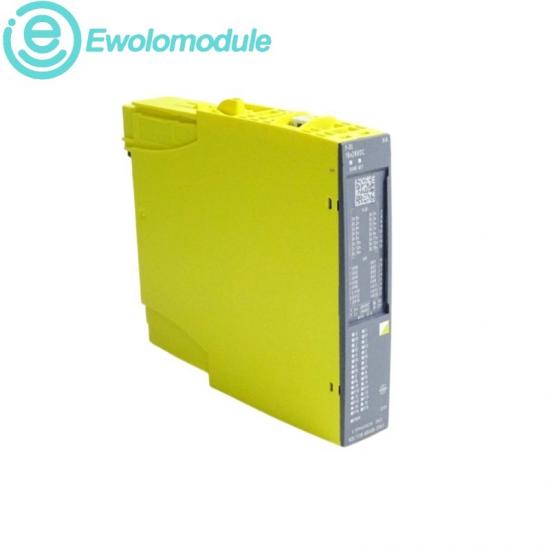

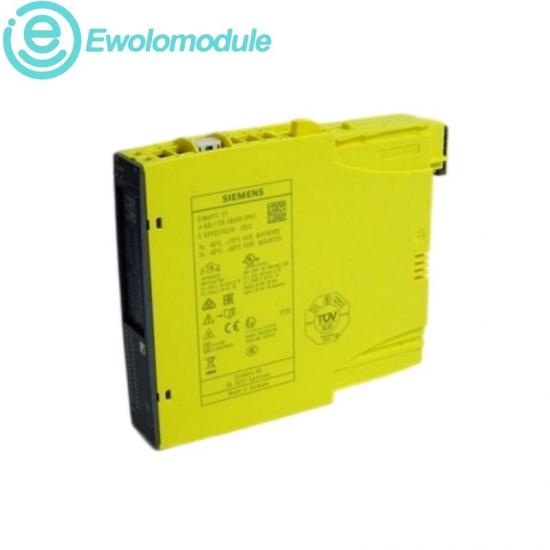

SIMATIC ET 200SP HA F-DI 16x24VDC HA Fail-safe Digital Input Module

Description

Fail-safe 16-channel 24 V DC digital input module for safety-related signal acquisition in SIMATIC ET 200SP HA systems.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule

6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / Fail-safe process I/O

DATAF-DI 16x24VDC HA official engineering profile

Designed for safety-related digital signal acquisition, this high-availability I/O module monitors sixteen 24 V DC input channels and provides channel-level diagnostics. It supports redundant station configurations with the specified terminal block and integrates into Siemens safety engineering environments.

Official technical data

Product type

F-DI 16x24VDC HA

Digital inputs

Rated supply voltage

24 V DC

Permissible supply range

19.2 to 28.8 V DC

Signal 1 input current

2.5 mA typical

Firmware version

V1.0

Usable terminal blocks

H1, M1, H0 and N0

Redundancy capability

Yes, with M1 terminal block

Functional safety

SIL 3 according to IEC 61508

Performance level

Up to PL e according to ISO 13849-1

Product positioning

Fail-safe digital input module for high-availability process I/O and safety-related field signals.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Operates in SIMATIC ET 200SP HA stations and is engineered with the documented terminal block, safety configuration and S7 F/FH system environment.

Recommand / Application and replacement

Application overview

Process safety

Emergency-stop, interlock and protective field signals.

Chemical and energy

Safety-related status acquisition in process plants.

High-availability automation

Redundant distributed I/O architectures.

Installation

Mount in a SIMATIC ET 200SP HA station using an approved H1, M1, H0 or N0 terminal block; verify 24 V DC supply and safety parameters before commissioning.

Upgrade path

Preserve the complete article number, terminal-block type, F-parameter assignment and project version when replacing an installed module.
