SIEMENS · DC-LINK COMPONENTS

6SL3100-1CE14-0AA0

SINAMICS Capacitor Module

PRODUCT IDENTITY

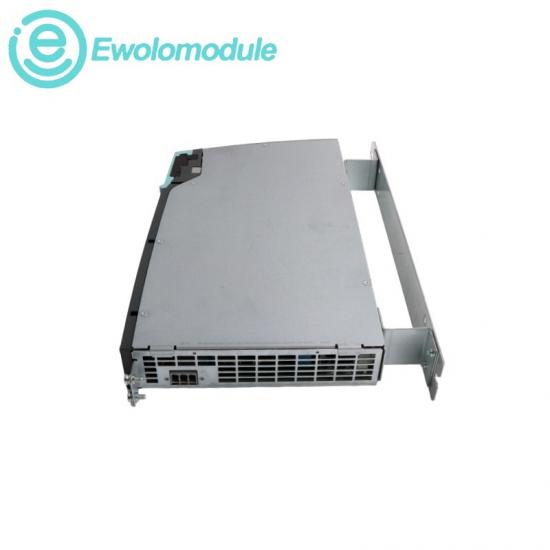

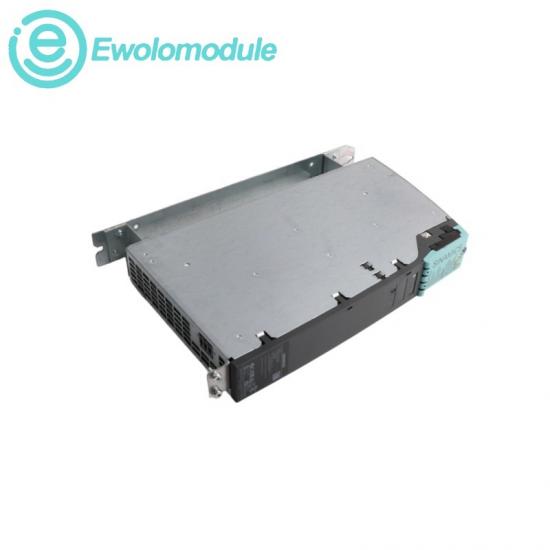

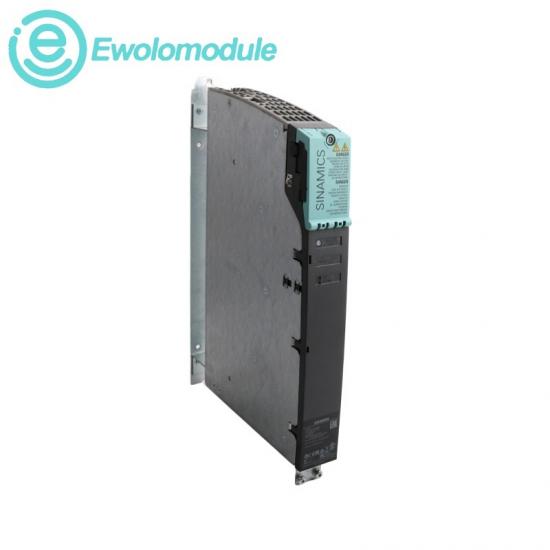

Siemens 6SL3100-1CE14-0AA0 SINAMICS Capacitor Module is a 600 V DC, 4000 µF booksize DC-link component that adds stored energy to the drive system to bridge momentary power losses.

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock · 3

OFFICIAL DATA SOURCE

Siemens Industry Mall product record and Siemens NC 82 Motion Control Catalog 2025.

02 · SPECIFICATIONS

DC-link energy buffering for SINAMICS booksize drive systems

PRODUCT DESCRIPTION

Installed on the common DC link through integrated busbars, the module increases available capacitance and functions autonomously. Several Capacitor Modules can operate in parallel when additional buffering is required, while internal air cooling supports the SINAMICS booksize arrangement.

SYSTEM COMPATIBILITY

SINAMICS S120 / S220 drive system
Booksize format with internal air cooling
Integrated DC-link busbar connection
Parallel operation supported

OFFICIAL TECHNICAL DATA

PRODUCT TYPE Capacitor Module in booksize format	CAPACITANCE 4000 µF
INPUT 600 V DC	DC LINK VOLTAGE 510–720 V DC
COOLING Internal air cooling	DC LINK CONNECTIONS 2 via integrated busbars
DC LINK BUSBAR CURRENT 100 A	24 V BUSBAR CURRENT 20 A
PE CONNECTION M5 screw; 2 PE connections	CERTIFICATE cULus

03 · RECOMMAND

Drive continuity applications and DC-link integration planning

DIAGNOSTICS & PROTECTION

◆ Monitor the shared DC-link voltage and verify complete discharge before service.

OPERATING ENVIRONMENT

◆ Cabinet installation in an internally air-cooled SINAMICS booksize drive lineup.

Siemens · SINAMICS and drive-system components

6SL3100-1CE14-0AA0	6SL3120-1TE13-0AD0	6SL3352-6TE32-1AA3	6SL3352-6TG33-3AA3
6SL3955-0TX00-1AA2	6SN1118-0DM33-0AA2	6SN1118-0DM31-0AA2	6SE7038-6GK84-1JC2
6SE7090-0XX85-1DA0	6SL3040-1MA00-0AA0	6SL3130-6AE15-0AB1	6SL3130-7TE21-6AA3
6SL3120-1TE15-0AD0	6SL3120-1TE21-0AD0	6SL3120-2TE13-0AD0	6SL3120-2TE15-0AD0
6SL3162-1AH00-0AA0	6SL3162-2AA00-0AA0	6SL3162-2MA00-0AA0	6SL3166-3AB00-0AA0

Beckhoff · Modular automation and I/O terminals

CX9020-0111	CX5130-0125	CX2040-0120	EL1008
EL2008	EL3008	EL4008	EL1809
EL2809	EL3314	EL3054	EL6695
EK1100	EK1122	BK1120	KL1408
KL2408	KL3204	CP6706-0001-0040	C6030-0060

04 · SERVICE & POLICY

Verification-led sourcing for SINAMICS DC-link components

01IdentifyConfirm the full order number, drive family, DC-link arrangement and destination.

02VerifyCheck label data, DC-link voltage, capacitance, busbars and system compatibility.

03QuoteProvide availability, commercial terms and delivery information.

04DispatchPrepare the confirmed module for protective industrial packing and shipment.
