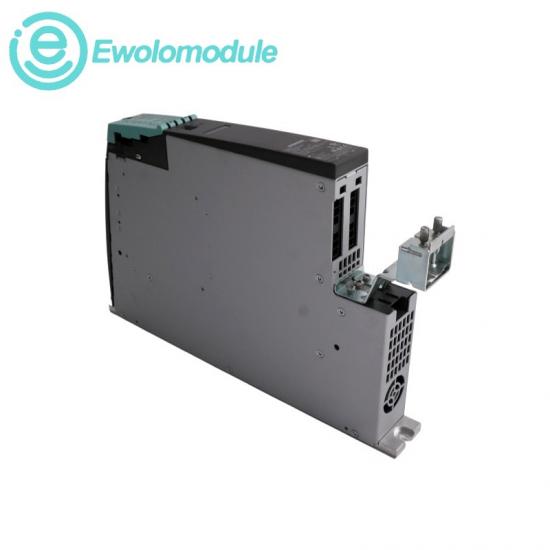

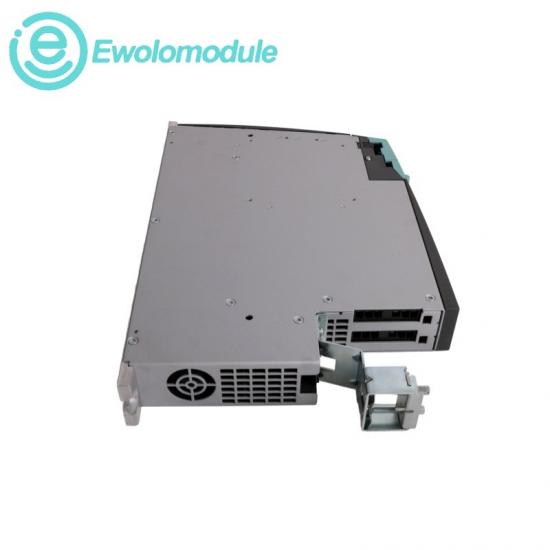

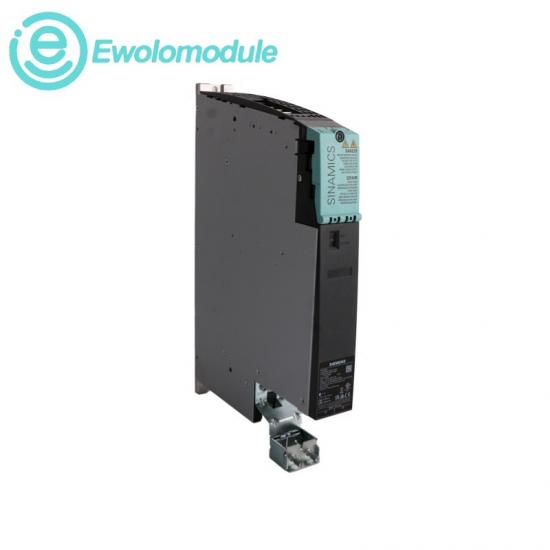

Product Details / Siemens 6SL3120-1TE13-0AD0 SINAMICS S120 Single Motor Module
Brief description Supplies one motor axis in modular SINAMICS S120 drive systems with integrated safety capability.
Warranty One year	Availability In stock	Related models on Ewolomodule 6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / Drive technology

SINAMICS S120 official engineering profile

This booksize motor module converts the common DC-link voltage of a SINAMICS S120 system into a controlled three-phase output for one motor. Drive-CLiQ communication links the power module to the control unit.

Official technical data

DC-link input

600 V DC nominal

Output voltage

3 AC 400 V

Output current

3 A

Design

Booksize D-type

Cooling

Internal air cooling

Electronics supply

24 V DC, -15% / +20%

Electronics current

Maximum 0.75 A

Shielded motor cable

Maximum 50 m

Degree of protection

IP20

Safety

SIL 2, PL d, Category 3

Product positioning

Single-axis power module for modular SINAMICS S120 motion and machine-drive systems.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Operates on the SINAMICS S120 DC link and communicates with the control unit through Drive-CLiQ.

Booksize single-axis design

Extended Safety Integrated

Drive-CLiQ connection

Recommand / Application and replacement

Where it fits

Machine tools

Controlled feed and spindle axes.

Packaging systems

Dynamic synchronized drives.

Material handling

Modular conveyor and positioning axes.

Installation

Mount in the S120 booksize line-up with specified clearances, DC-link connection and internal airflow.

Upgrade path

Match current rating, safety functions, Drive-CLiQ topology and motor feedback before exchanging the module.
