PRODUCT DETAILS

SIEMENS

6SL3210-1PE22-7AL0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

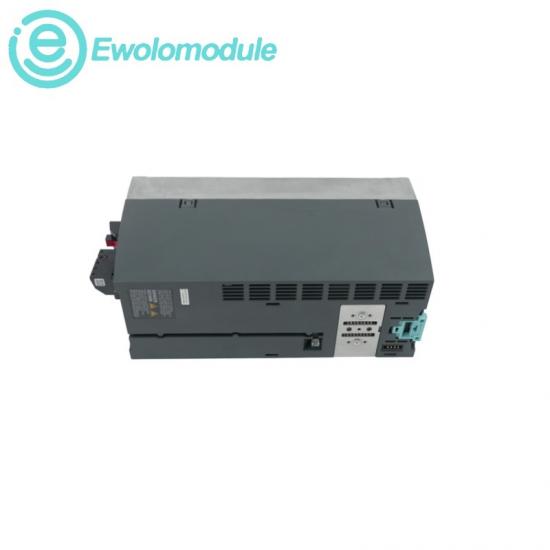

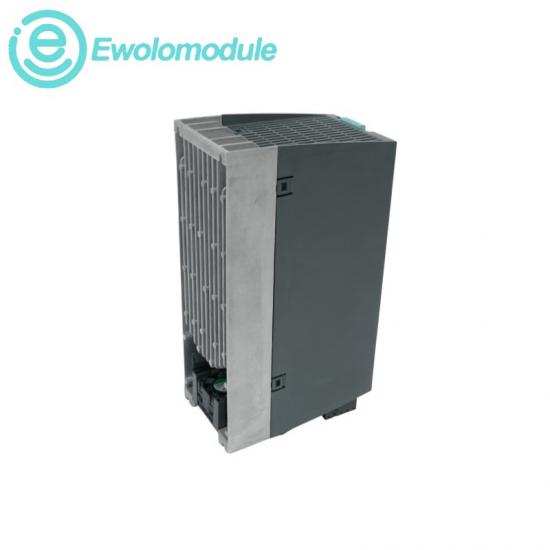

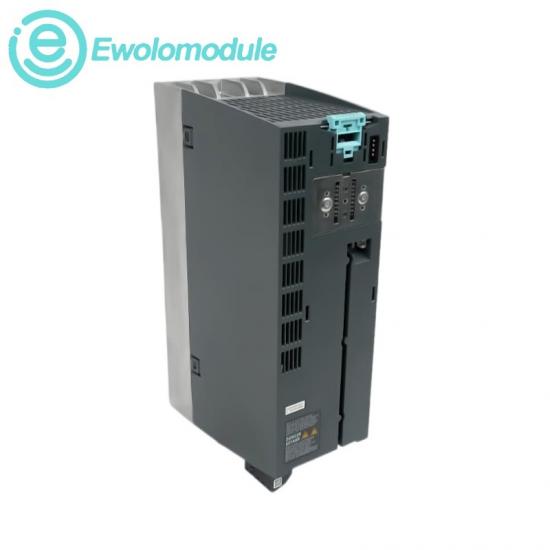

SINAMICS PM240-2 Power Module with Class A Filter

Series: SINAMICS G120 / PM240-2

Description: Air-cooled PM240-2 power module with an integrated Class A filter and braking chopper for SINAMICS G120 drives.

RELATED MODELS ON EWOLOMODULE
6ES7407-0RA02-0AA0 6AV2123-2JB03-0AX0 6GK7343-2AH11-0XA0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

Power Module engineering profile

This PM240-2 power stage converts a three-phase 380 to 480 V supply for variable-speed motor operation and supports both high-overload and low-overload duty ratings.

OFFICIAL TECHNICAL DATA

Article number

6SL3210-1PE22-7AL0

Product type

PM240-2, frame size FSC

Input voltage

3 AC 380 to 480 V ±10%

Line frequency

47 to 63 Hz

Rated power (LO)

11 kW

Rated power (HO)

7.5 kW

Rated current (LO)

32.6 A

Rated current (HO)

27.0 A

Degree of protection

IP20

Cooling

Internal air cooling

MONITORING & CONTROL

A compatible SINAMICS Control Unit provides current, temperature, DC-link and fault monitoring for the power stage.

COMMUNICATION & CONNECTION

The power module connects to the selected SINAMICS G120 Control Unit; fieldbus communication is determined by that Control Unit.

RECOMMAND

CERTIFICATION STANDARDS

Converter efficiency class IE2 is documented according to IEC 61800-9-2, with RoHS compliance stated by Siemens.

CONFIGURATION & PROGRAMMING

Commission with a compatible Control Unit using SINAMICS engineering tools such as STARTER or Startdrive; Siemens approves this module for Control Unit firmware V4.6 and later.
