PRODUCT DETAILS

6SL3210-5HE11-5UF0

SINAMICS S210 Servo Converter

PRODUCT IDENTITY

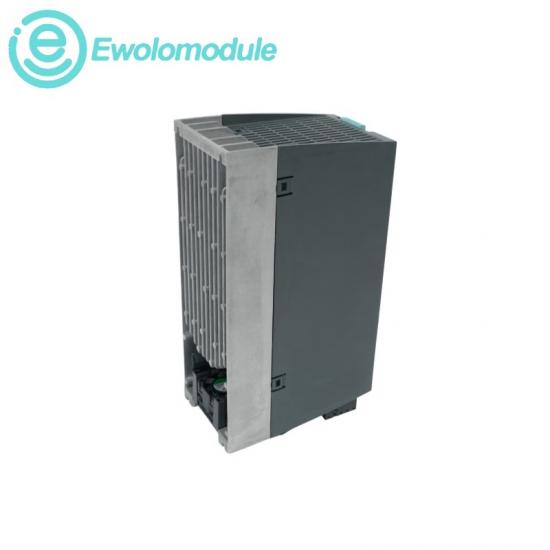

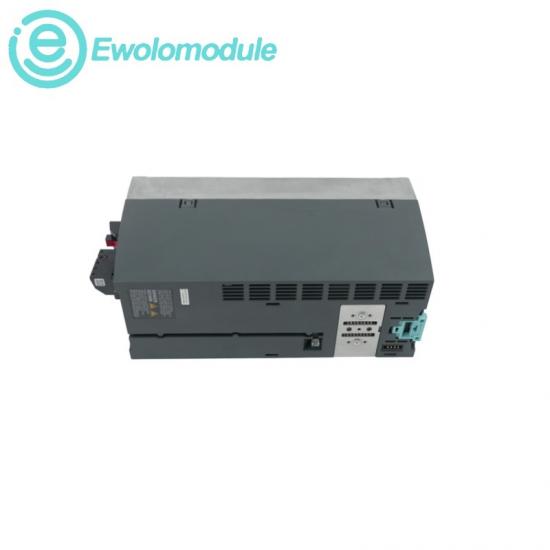

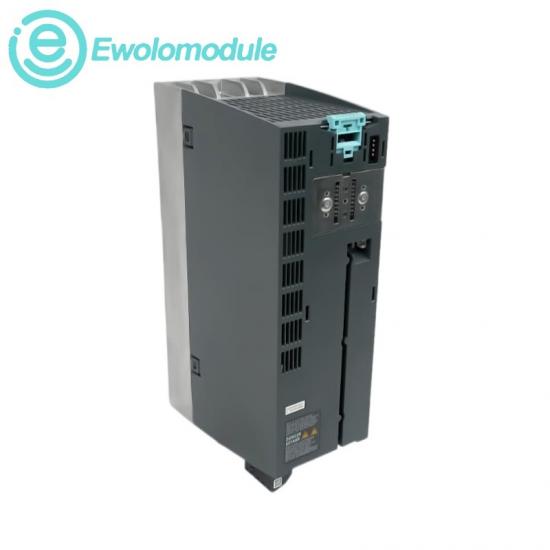

Siemens 6SL3210-5HE11-5UF0 SINAMICS S210 Servo Converter

A frame-size B SINAMICS S210 servo converter rated for 1.5 kW at 400 V, with 5.0 A output and PROFINET-based motion integration.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆CE and UKCA conformity for the SINAMICS S210 converter family

◆cULus listing under UL file E192450 for the 3 AC series

◆RCM, EAC and KC certificates of suitability

◆Integrated safety designed for SIL 3, PL e and Category 4 applications

COMPATIBILITY & INTEROPERABILITY

◆PROFINET interface with two RJ45 ports and PROFIdrive V4 profile

◆Designed for SINAMICS S210 systems with SIMOTICS S-1FK2 servomotors

◆Commissioning access through the converter Ethernet service interface

◆Fail-safe input supports the integrated STO / SS1 safety functions

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SINAMICS S210

RATED MOTOR POWER

1.5 kW at 400 V

LINE INPUT

3 AC 200–480 V ±10%

LINE FREQUENCY

45–66 Hz

RATED INPUT CURRENT

6.0 A

RATED OUTPUT CURRENT

5.0 A

OUTPUT FREQUENCY

0–550 Hz

PULSE FREQUENCY

8 kHz

DIGITAL INPUTS

5; including 2 for F-DI

DEGREE OF PROTECTION

IP20

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆Back up converter parameters and record the installed firmware before an update

◆Commission the drive through the integrated web server and Ethernet service interface

◆Use only the Siemens firmware package released for the S210 hardware generation

◆Set motor, control and safety data before enabling the axis

◆After a motor-component update, perform the documented 24 V power cycle when requested

◆Integrate cyclic control through PROFINET using the PROFIdrive V4 profile

6SL3210-5HE11-5UF0 Servo Converter

Servo Converter Datasheet
