PRODUCT PROFILE

WOODHEAD SST · INDUSTRIAL CONTROL

WOODHEAD SST

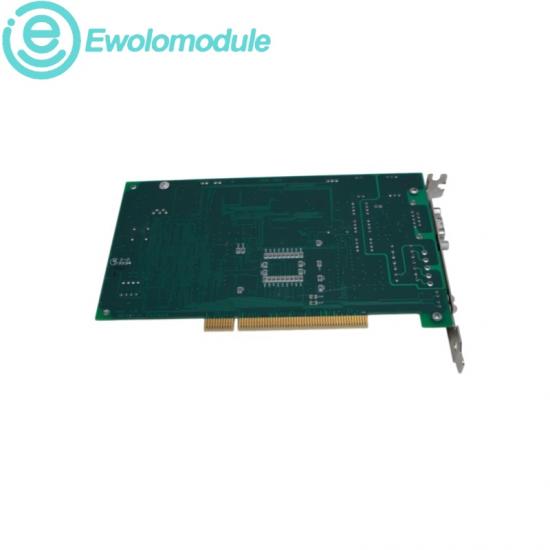

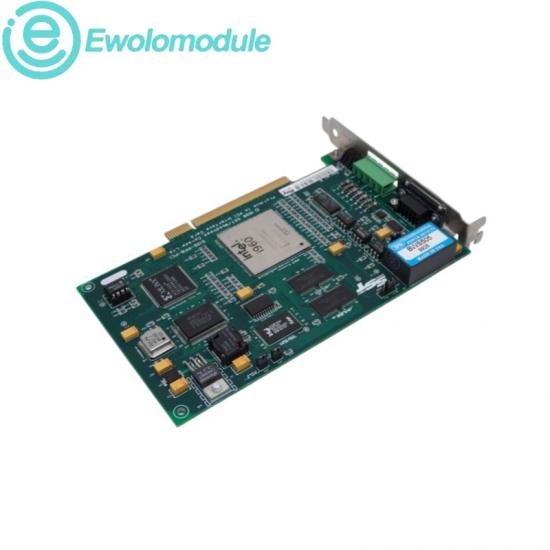

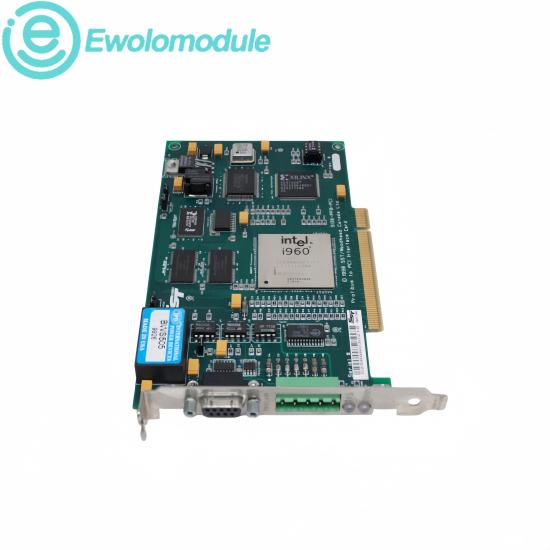

5136-PFB-PCI

PROFIBUS Interface Card

SYSTEM CONTEXT

PCI-to-PROFIBUS Gateway

Connects an industrial computer directly to a PROFIBUS DP field network.

PRODUCT OVERVIEW

Half-length PCI communication card for installed PC-based control and data-acquisition systems. Match the slot voltage, network connector and software driver before commissioning.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other Woodhead SST products →

COMMUNICATION & APPLICATIONS

SYSTEM PLANNING

Communication & Connectivity

Application Scenarios

HOST BUS

Uses a 32-bit universal PCI interface for data exchange with the host computer.

PC-BASED CONTROL

Machine-control computers coordinating distributed drives, sensors and remote I/O.

FIELD NETWORK

Supports PROFIBUS DP master, DP slave and FDL services on the fieldbus side.

SYSTEM INTEGRATION

Bridging legacy PROFIBUS equipment into supervisory and test platforms.

COMMISSIONING

Load the matching card driver and verify node address, baud rate and termination.

NETWORK SERVICE

Like-for-like replacement of an installed SST communication interface.

Technical data

PCI FORMAT

Half-length 32-bit PCI

PROTOCOL MODES

DP master / slave / FDL

NETWORK RATE

9.6kbps to 12Mbps

SHARED MEMORY

2MB 32-bit RAM

FIRMWARE STORAGE

512KB flash

OPERATING RANGE

0°C to +50°C

BRAND & APPLICATIONS

PRODUCT REFERENCES

Brand characteristics

Application fields

Industrial networking

Woodhead SST interfaces support deterministic links between computers and fieldbus devices.

Machine automation

PC-based control of distributed I/O, drives and production equipment.

Protocol coverage

Dedicated communication hardware handles PROFIBUS timing independently of the host application.

Process integration

Data exchange between supervisory computers and PROFIBUS instruments.

Legacy support

PCI products help maintain established automation and test installations.

Test systems

Deterministic acquisition and control in industrial test benches.

Service traceability

Complete card and firmware identities simplify controlled spare selection.

Modernization

Retention of installed field devices during staged control-system upgrades.
