TECHNICAL PRODUCT FILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

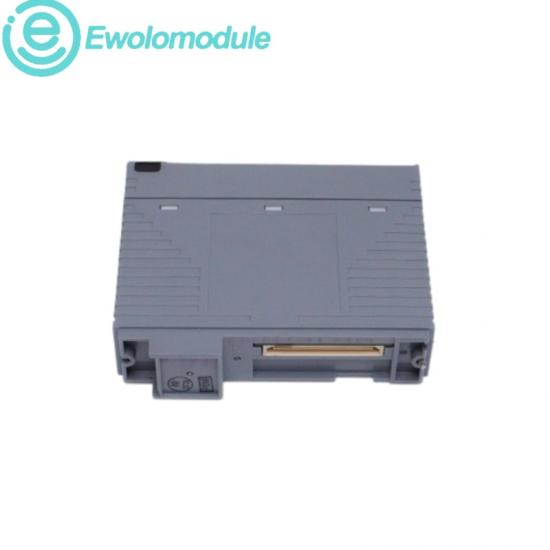

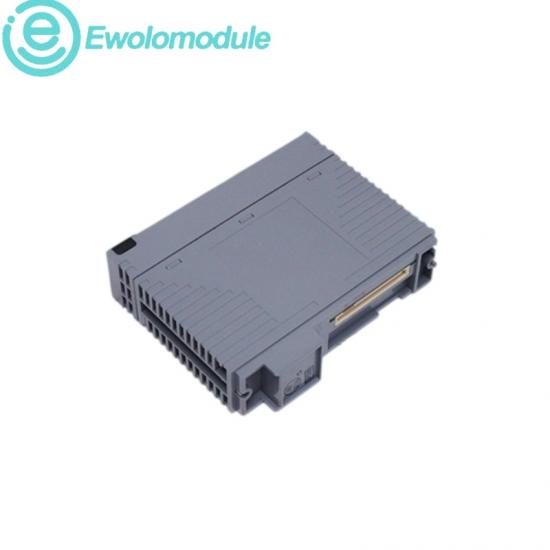

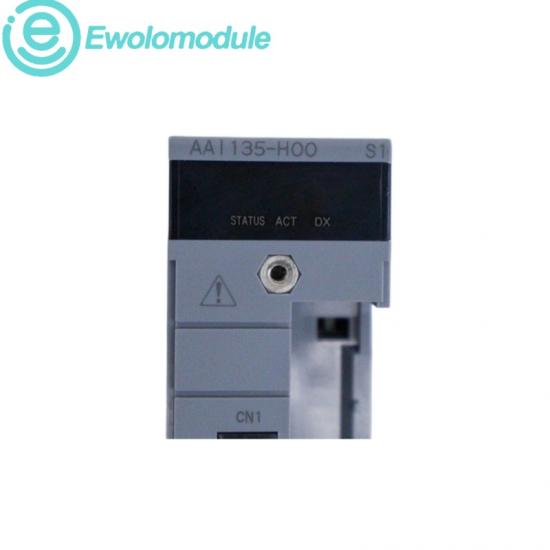

MODEL IDENTIFICATION

AAI135-H00

Style S1

OFFICIAL PRODUCT NAME

8-Channel Isolated Analog Input Module

8 CHANNELS4–20 MAHART

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

ISOLATED INPUTS

HART DATA

LOOP MONITORING

REDUNDANCY READY

TECHNICAL SPECIFICATIONS

Identity, installation and commissioning reference

CALL +86 17359287459 EMAIL sales9@apterpower.com

Manufacturer

Yokogawa

Model

AAI135-H00

Style

Module type

Analog input

Input channels

8 isolated

Input signal

4–20mA DC

Digital protocol

HART

Allowable current

25mA

Accuracy

±16µA

Update period

10ms

Withstand voltage

500VAC / 1min

Configuration

Dual redundant supported

OPERATING ENVIRONMENT

Install in a documented CENTUM FIO node with clean cabinet air, stable grounding and controlled temperature. Keep field loops separated from noise sources and isolate the applicable loop power before terminal or module service.

CONTROLLED CABINETCLEAN & DRYPOWER ISOLATION

MONITORING & CONTROL

Monitor channel diagnostics, 4–20mA loop values and HART device status through the configured Yokogawa engineering environment. Verify transmitter wiring, terminal adapter, redundancy assignment and the full AAI135-H00 S1 identity.

SYSTEM STATUSSIGNAL CHECKDEVICE RESPONSE

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Yokogawa CENTUM I/O combines deterministic scan performance, documented suffix coding and integrated device diagnostics for precise, lifecycle-controlled process measurement.

TRACEABLEENGINEEREDSERVICE READY

APPLICATION FIELDS

Applied to isolated 4–20mA transmitter loops in refining, chemicals, power generation, water treatment and other continuous-process plants.

PROCESS LOOPSREFININGWATER TREATMENT

RELATED MODELS

Yokogawa

AAI135-H03AAI141-H00AAI141-H03AAI835-H00AAI835-H03AAI143-H00AAI143-H03AAI841-S00AAI543-S00AAV141-S00AAV144-S00ADV151-P00ADV551-P00ADV161-P00ADV561-P00ALR121-S00ALP121-S00ALE111-S00ANB10D-420ANT502-50

Koyo Electronics

D2-230D2-240D2-250-1D2-260D2-430D2-440D2-450D2-16ND3-2D2-16NAD2-16TD1-2D2-08NA-1D2-04ADD2-08AD-1D2-02DAD2-08TRD4-450D4-16ND2D4-16TD2F2-04AD-1F2-08DA-1

PROCUREMENT & SUPPLY PATH

01 · IDENTIFY

Provide the complete AAI135-H00 code, installed node, terminal arrangement and required quantity.

02 · VERIFY

Confirm eight isolated channels, HART communication, suffix H00, Style S1, terminal adapter and current CENTUM node compatibility.

03 · QUOTE

Review pricing, lead time, warranty and delivery terms for the requested quantity.

04 · DISPATCH

Complete order checks, protective packing and destination-based shipment planning.
