TECHNICAL PRODUCT FILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

MODEL IDENTIFICATION

AAI135-H03

Style S1

OFFICIAL PRODUCT NAME

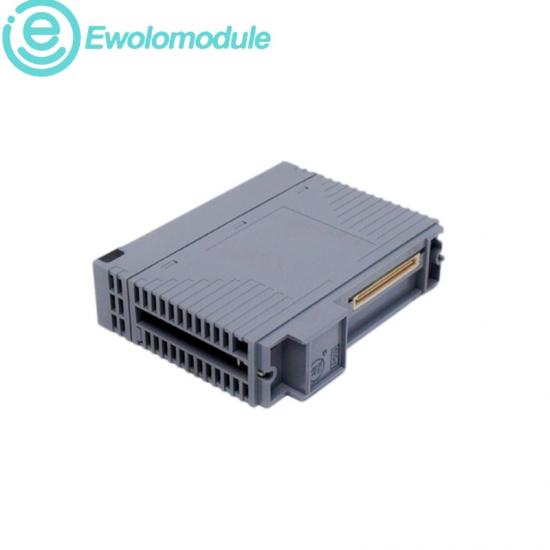

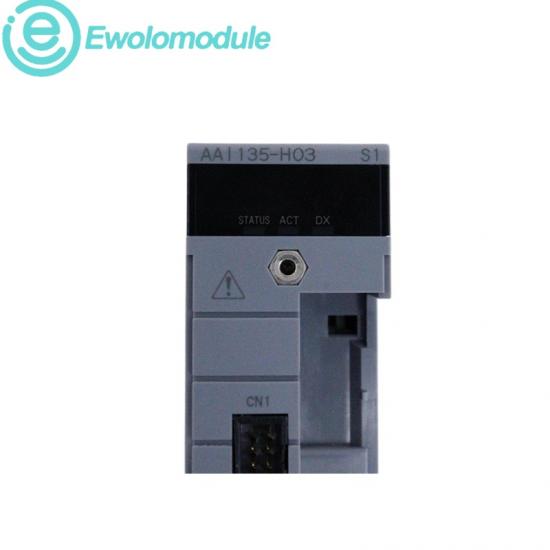

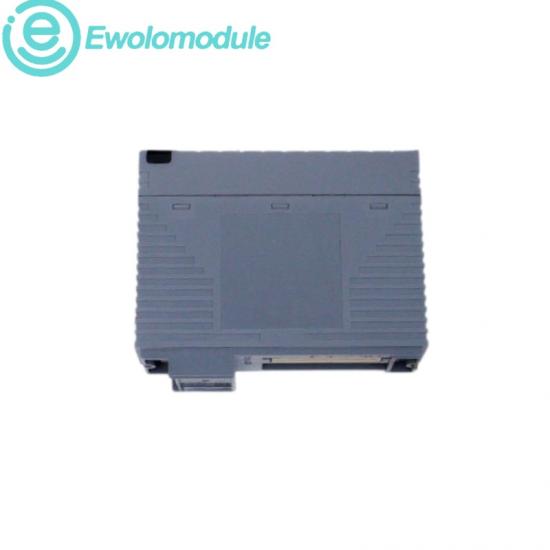

8-Channel Isolated HART Analog Input Module

8 CHANNELSHARTG3 OPTION

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

ISOLATED INPUTS

HART DATA

WIDE TEMPERATURE

REDUNDANCY READY

TECHNICAL SPECIFICATIONS

Identity, installation and commissioning reference

CALL +86 17359287459 EMAIL sales9@apterpower.com

Manufacturer

Yokogawa

Model

AAI135-H03

Style

Module type

Analog input

Input channels

8 isolated

Input signal

4–20mA DC

Digital protocol

HART

Environmental option

ISA G3 / -20 to +70°C

Accuracy

±16µA

Update period

10ms

Withstand voltage

500VAC / 1min

Configuration

Dual redundant supported

OPERATING ENVIRONMENT

Install in the assigned CENTUM FIO node with cabinet ventilation, protective grounding and environmental control consistent with the H03 G3 / -20 to +70°C option. Isolate loop power before wiring or module replacement.

CONTROLLED CABINETCLEAN & DRYPOWER ISOLATION

MONITORING & CONTROL

Use CENTUM diagnostics and HART status to verify loop quality, channel health and smart-transmitter communication. Confirm terminal adapter, redundancy assignment, environmental suffix and the complete AAI135-H03 S1 marking.

SYSTEM STATUSSIGNAL CHECKDEVICE RESPONSE

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Yokogawa CENTUM I/O combines precise signal conversion, digital HART communication and documented environmental suffixes for dependable process instrumentation.

TRACEABLEENGINEEREDSERVICE READY

APPLICATION FIELDS

Used for isolated smart-transmitter loops in corrosive or extended-temperature cabinets serving refineries, chemicals, power plants and utility processes.

SMART DEVICESHARSH CABINETSPROCESS PLANTS

RELATED MODELS

Yokogawa

AAI135-H00AAI141-H00AAI141-H03AAI835-H00AAI835-H03AAI143-H00AAI143-H03AAI841-S00AAI543-S00AAV141-S00AAV144-S00ADV151-P00ADV551-P00ADV161-P00ADV561-P00ALR121-S00ALP121-S00ALE111-S00ANB10D-420ANT502-50

Koyo Electronics

D2-230D2-240D2-250-1D2-260D2-430D2-440D2-450D2-16ND3-2D2-16NAD2-16TD1-2D2-08NA-1D2-04ADD2-08AD-1D2-02DAD2-08TRD4-450D4-16ND2D4-16TD2F2-04AD-1F2-08DA-1

PROCUREMENT & SUPPLY PATH

01 · IDENTIFY

Provide the complete AAI135-H03 code, installed node, terminal arrangement and required quantity.

02 · VERIFY

Confirm eight isolated channels, HART communication, H03 G3 environmental option, Style S1, terminal hardware and node compatibility.

03 · QUOTE

Review pricing, lead time, warranty and delivery terms for the requested quantity.

04 · DISPATCH

Complete order checks, protective packing and destination-based shipment planning.
