TECHNICAL PRODUCT FILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

MODEL IDENTIFICATION

AAI835-H00

Style S1

OFFICIAL PRODUCT NAME

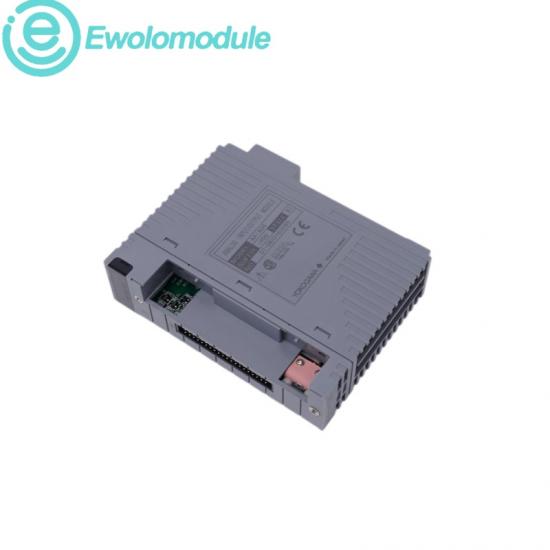

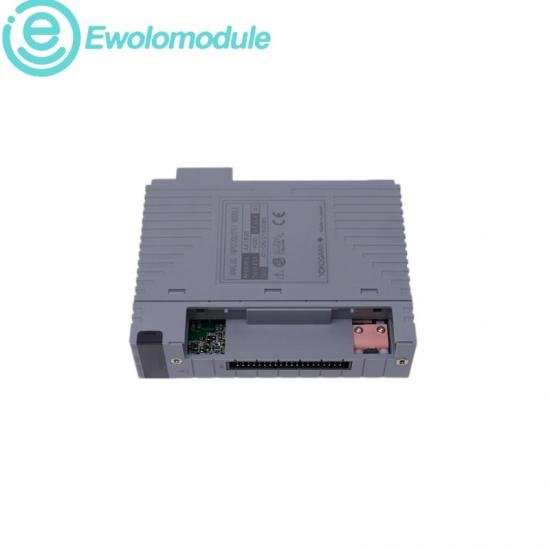

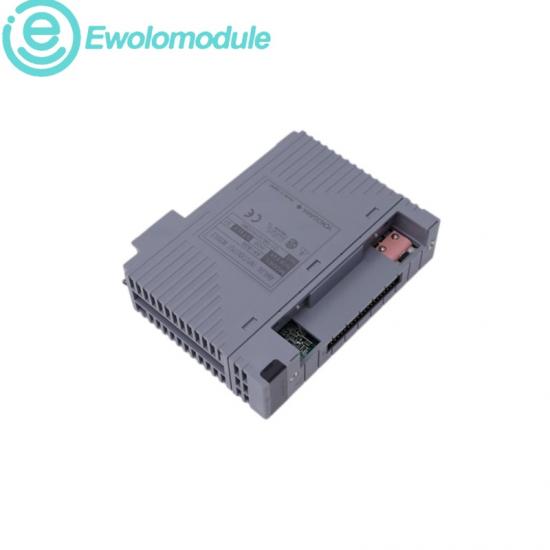

4-Input / 4-Output Isolated Analog I/O Module

4 IN / 4 OUT4–20 MAHART

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

ISOLATED I/O

HART DATA

LOOP CONTROL

REDUNDANCY READY

TECHNICAL SPECIFICATIONS

Identity, installation and commissioning reference

CALL +86 17359287459 EMAIL sales9@apterpower.com

Manufacturer

Yokogawa

Model

AAI835-H00

Style

Module type

Analog I/O

I/O channels

4 input / 4 output

Signal range

4–20mA DC

Channel isolation

Input/output isolated

Digital protocol

HART

Input accuracy

±16µA

Output accuracy

±48µA

Update period

10ms

Output load

0–750Ω

OPERATING ENVIRONMENT

Install in the documented CENTUM FIO node with controlled cabinet temperature, clean air and protective grounding. Separate input and output loop wiring from noise sources and isolate applicable field power before service.

CONTROLLED CABINETCLEAN & DRYPOWER ISOLATION

MONITORING & CONTROL

Monitor input measurements, output commands, loop diagnostics and HART device health through the Yokogawa engineering environment. Verify channel direction, terminal adapter, load resistance, redundancy assignment and AAI835-H00 S1 identity.

SYSTEM STATUSSIGNAL CHECKDEVICE RESPONSE

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Yokogawa isolated analog I/O combines precise measurement, stable current output and digital device communication in a compact, lifecycle-documented module.

TRACEABLEENGINEEREDSERVICE READY

APPLICATION FIELDS

Applied to mixed measurement and control loops for transmitters, positioners and actuators in refining, chemicals, power generation, water and utility processes.

MIXED ANALOG I/OLOOP CONTROLPROCESS PLANTS

RELATED MODELS

Yokogawa

AAI135-H00AAI135-H03AAI141-H00AAI141-H03AAI835-H03AAI143-H00AAI143-H03AAI841-S00AAI543-S00AAV141-S00AAV144-S00ADV151-P00ADV551-P00ADV161-P00ADV561-P00ALR121-S00ALP121-S00ALE111-S00ANB10D-420ANT502-50

Koyo Electronics

D2-230D2-240D2-250-1D2-260D2-430D2-440D2-450D2-16ND3-2D2-16NAD2-16TD1-2D2-08NA-1D2-04ADD2-08AD-1D2-02DAD2-08TRD4-450D4-16ND2D4-16TD2F2-04AD-1F2-08DA-1

PROCUREMENT & SUPPLY PATH

01 · IDENTIFY

Provide the complete AAI835-H00 code, installed node, terminal arrangement and required quantity.

02 · VERIFY

Confirm four input/four output channel assignment, HART use, output load, suffix H00, Style S1 and installed node compatibility.

03 · QUOTE

Review pricing, lead time, warranty and delivery terms for the requested quantity.

04 · DISPATCH

Complete order checks, protective packing and destination-based shipment planning.
