01PRODUCT PROFILECENTUM VP / FIELD I/O
|
YOKOGAWA

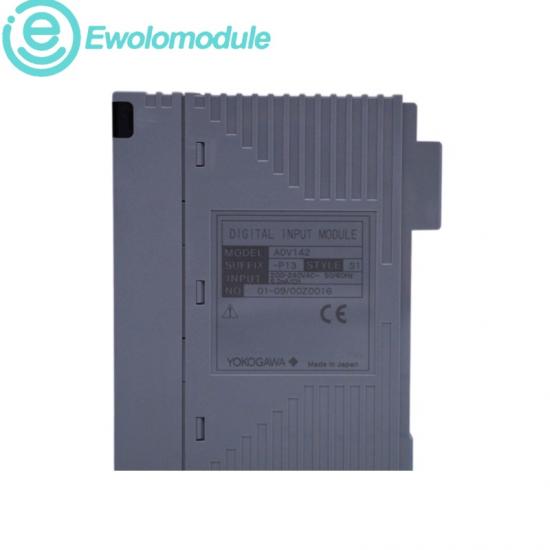

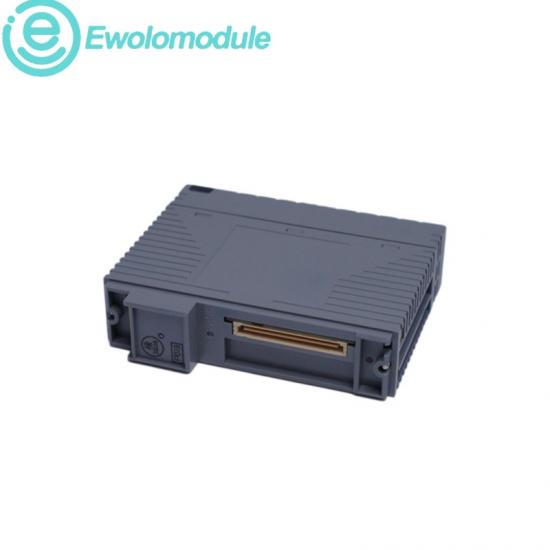

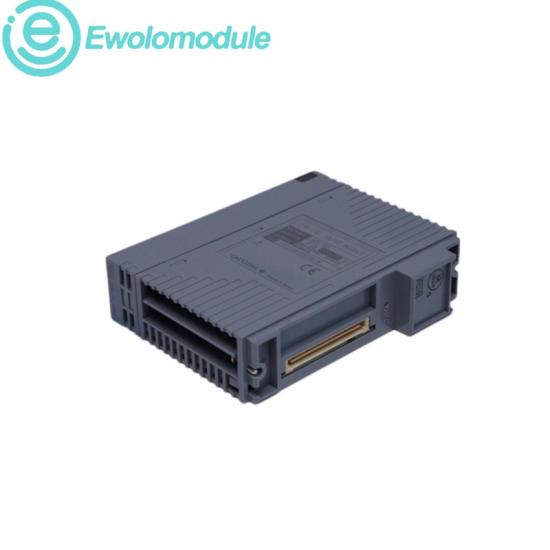

ADV142-P13 S1
Isolated AC Digital Input Module
|
SYSTEM POSITION
High-voltage discrete input acquisition for CENTUM VP
Interfaces field-side AC status signals with compatible Yokogawa field control stations while maintaining channel isolation and documented system architecture.
|
02PERFORMANCE & APPLICATIONSEFFICIENCY / USE CASES
Performance & Efficiency
Sixteen isolated AC input channels consolidate high-voltage field status signals in one FIO slot, reducing cabinet footprint and simplifying channel-level fault separation.
Pressure-clamp termination shortens point-to-point wiring, while direct CENTUM integration keeps signal handling inside the documented control-system lifecycle.
|
Application Scenarios
Suitable for breaker status, motor-starter feedback, permissive contacts and other 220–240 VAC discrete signals in continuous-process facilities.
Applied in CENTUM VP and compatible CS 3000 field I/O nodes where exact suffix, terminal arrangement and system revision are maintained.
|
Technical data
| Input signal |
220–240 VAC |
Input channels |
16, isolated |
| Connection |
Pressure-clamp terminal |
Terminal block |
ATC4S |
| Dedicated cable |
AKB333 |
Terminal board |
AEC4D |
| Module current |
500 mA max. at 5 VDC |
Node support |
AFV / ANB FIO nodes |
Confirm the complete suffix, terminal method and installed FCS revision against Yokogawa project documentation before commissioning.
03BRAND & APPLICATIONSPROCESS AUTOMATION
| Brand characteristics |
Application fields |
| System integration |
Yokogawa FIO modules are engineered for coordinated operation with CENTUM field control stations. |
Oil & gas |
Discrete plant-status acquisition in production, pipeline and refining units. |
| Channel isolation |
Isolated input design separates field-side AC circuits from internal control-system logic. |
Power generation |
Breaker, starter and auxiliary-equipment feedback in plant control cabinets. |
| Terminal discipline |
Documented terminal blocks and cables support repeatable installation and maintenance. |
Chemical processing |
Interlock and permissive monitoring in continuous batch and process areas. |
| Lifecycle control |
Exact suffix and revision matching helps preserve validated control-system configurations. |
Plant modernization |
Revision-controlled replacement while retaining installed FIO architecture. |
Product references
Yokogawa
| ADV151-P00 |
ADV151-P10 |
ADV551-P00 |
ADV551-P10 |
ADV141-P10 |
| ADV142-P13 |
ADV157-P00 |
ADV161-P00 |
ADV561-P11 |
ADR541-P10 |
| AAI141-S00 |
AAV141-S00 |
AAI841-S00 |
AAB841-S00 |
AAR145-S00 |
| AAP135-S00 |
ALR111-S00 |
ALR121-S00 |
ALE111-S00 |
ALF111-S00 |
Bachmann
| DI232 |
DO232 |
AI204 |
AO202 |
CM202 |
| M1 |
MPC240 |
MX207 |
FM211 |
FS221 |
| CNT204/R |
NT255 |
FS212 |
DIO216 |
PATI216 |
| PTAI216 |
BS210 |
BS212 |
AIO288/1 |
ME203 |
04SERVICE & POLICYQUOTATION SUPPORT
| Quote |
Disclaimer |
| IDENTIFYProvide ADV142-P13 S1, the installed FIO node reference, terminal arrangement and required quantity. |
INDEPENDENT SUPPLYThis website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website. |
| VERIFYConfirm the 220–240 VAC field signal, 16-channel assignment, P13 pushbutton-input function and G3 environmental suffix and installed FCS revision. |
TRADEMARK OWNERSHIPAll product names, trademarks, brands, and logos used on this website are the property of their respective owners. |
| QUOTE & DELIVERYState the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation. |
IDENTIFICATION PURPOSEThe description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder. |
