Description

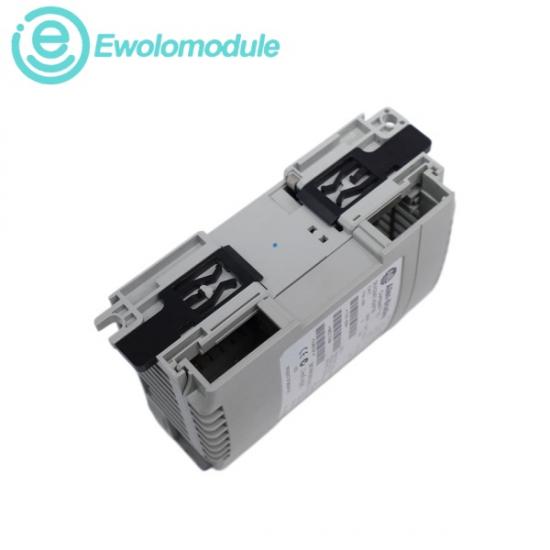

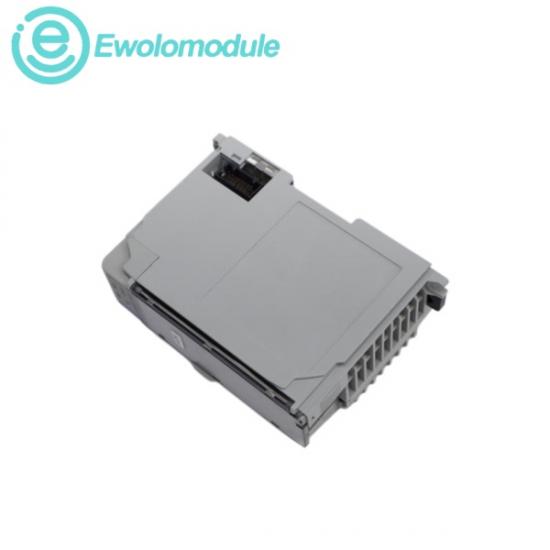

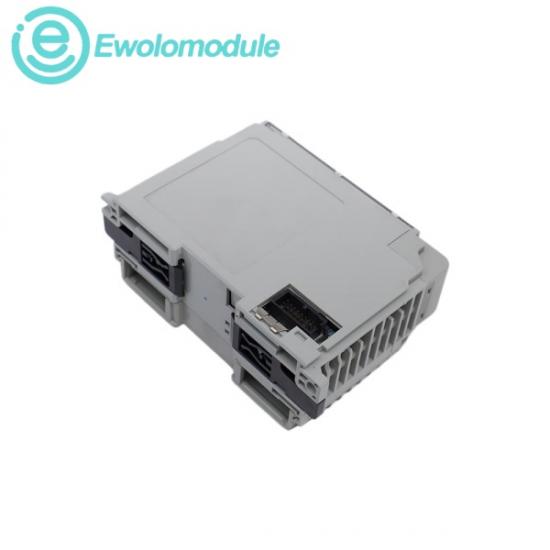

The 1769-ADN functions as an intelligent distributed communication gateway within industrial control topologies. It interfaces a local bank of up to 30 1769 Compact I/O modules directly with a plant-wide DeviceNet network, making the entire assembly appear as a single, coordinated node to a centralized master controller. The adapter supports expanding a single node setup into up to three separate physical I/O banks using bus expansion cables, which offers tremendous modular control flexibility on the factory floor. It natively handles up to 502 bytes of input data and 480 bytes of output data, distributing these packets dynamically across connected digital, analog, or specialty I/O modules. For ease of physical setup, it features front-accessible rotary switches that allow field engineers to quickly set the unique DeviceNet Node Address (MAC ID) without needing any programming software. Additionally, the front panel integrates dedicated LED status indicators for Module, Network, and I/O status to instantly signal bus communication health or hardware validation errors.

Data informations

l Internal Backplane Current Load (5V DC): 450 mA (Amperes) typical consumption

l Internal Backplane Current Load (24V DC): 0 mA

l DeviceNet Voltage Input Range: 11 ... 25 VDC

l Operational Temperature Range: 0°C to 60°C (32°F to 140°F)

l Non-Operating Storage Temp: -40°C to 85°C (-40°F to 185°F)

l Relative Operational Humidity: 5% to 95% non-condensing atmosphere
