Description

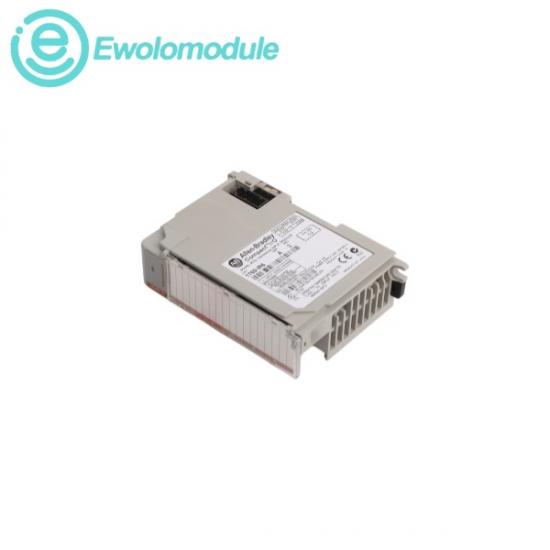

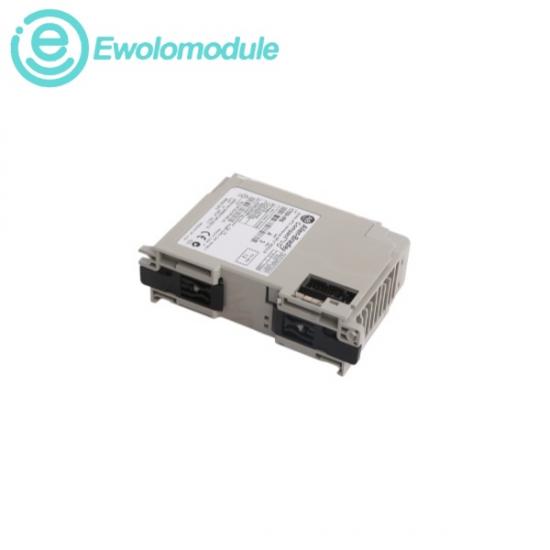

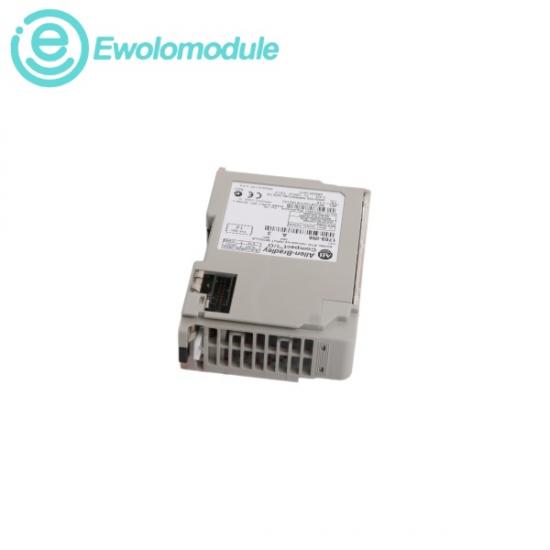

The 1769-IR6 is a high-performance, 6-channel analog temperature input module designed for precision industrial process monitoring. Based on the official technical documentation provided in your image, the module supports any combination of up to six independent temperature or direct resistance sensors simultaneously, digitally converting the analog field inputs into linearized data tables for direct controller utilization. It natively accommodates 2-wire, 3-wire, or 4-wire RTD or direct resistance devices, though for 4-wire sensors, the fourth sense wire is physically attached but remains unused by the module's internal circuitry. To prevent thermal dissipation and limit self-heating errors on small RTD elements, the hardware features two software-selectable, programmable excitation current values of 0.5 mA and 1.0 mA.

Data informations

l Backplane Current Draw at 5.1V DC: 100 mA (Milliamperes) typical

l Backplane Current Draw at 24V DC: 45 mA (Milliamperes) typical

l Maximum Power Consumption / Dissipation: 1.5 W (Watts)

l Maximum Cable Loop Impedance: 25Ω total

l Wiring Interface Model: 18-point Removable Terminal Block

l Terminal Screw Tightening Torque: 0.68 N·m (6 lb·in)

l Power Supply Distance Rating: Strict position rating of 8

More models with different options

The advantage brands and series of our company

FAQ➤frequently asked questions

Q1. What is your MOQ?

We could provide you very small MOQ for each item.

Q2. What about your shipping package?

Most of our products is ship with original factory new package, we will cover our our professional foam protective packaging to keep worldwide shipping no damaged.

Q3. Can you tell me the transportation mode of delivery?

We use DHL,FEDEX,TNT,UPS,EMS to delivery goods. If you have the shipping account, pls contact us directly and we will ship as your requirement.

Q4. How is the quality of your products? How long is the warranty period?

We guarantee that the products provided are original products of , and the warranty period of all products is 12 months
