Overview

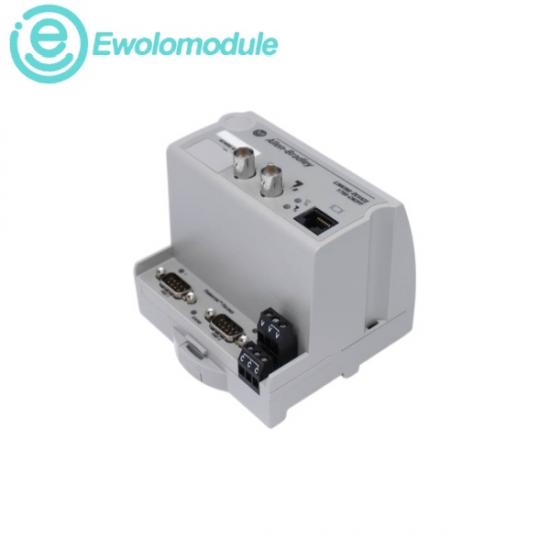

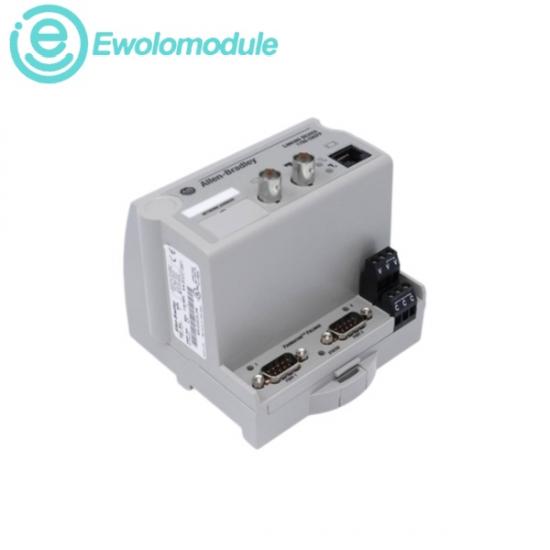

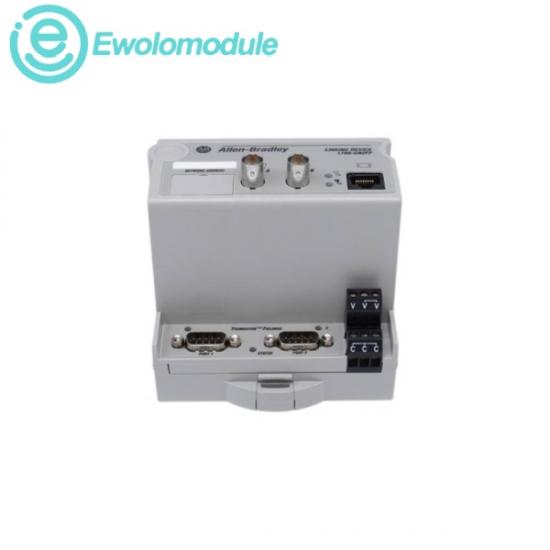

The 1788-CN2FF is an intelligent communication bridging and gateway device developed by Rockwell Automation under the Allen-Bradley brand. This linking device serves as a transparent physical and network-layer gateway between high-speed ControlNet networks and process-oriented FOUNDATION Fieldbus H1 fieldbus segments. By embedding this device into a control architecture, industrial facilities can link their Logix-based control systems (such as ControlLogix or CompactLogix) straight to field instrumentation, bypassing the need for specialized standalone controllers or complex backplane routing modules. Structurally, the unit features an open, compact form factor designed for immediate 35 mm DIN rail mounting within an electrical enclosure.

Specifications

u Input Voltage Range (External Power): 18…32V DC (24V DC nominal)

u Max Input Current Draw: 450 mA @ 24V DC

u Power Consumption / Dissipation: Approximately 11 Watts maximum

u FOUNDATION Fieldbus H1 Voltage Output: Up to 32V DC supplied to the fieldbus cable segment depending on the external power conditioner used

u FOUNDATION Fieldbus Segment Current: Supports individual fieldbus devices drawing a typical baseline current of 20 mA each

u Maximum Connected Field Devices: Supports up to 16 FOUNDATION Fieldbus H1 field instruments per segment

u Isolation Voltage: Tested to provide continuous galvanic isolation of 50V between the communication networks and the input power circuitry

u Operating Temperature: 0…60 °C (32…140 °F)
