Overview

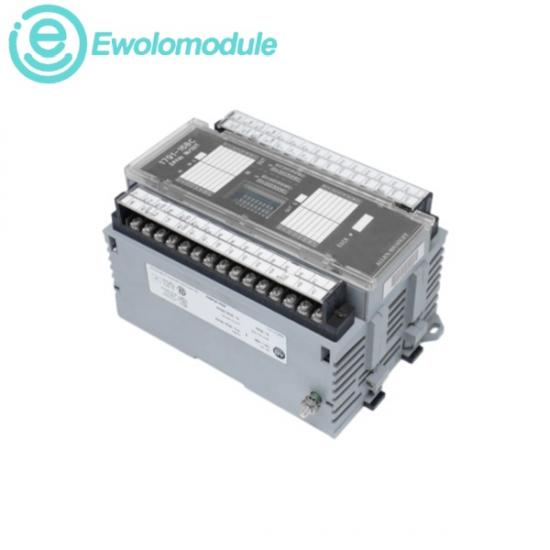

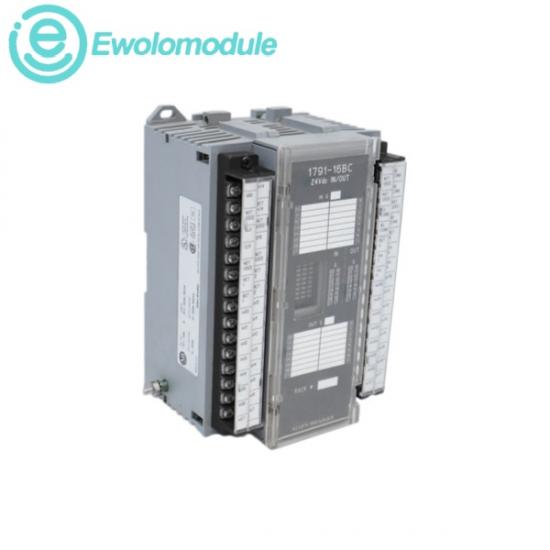

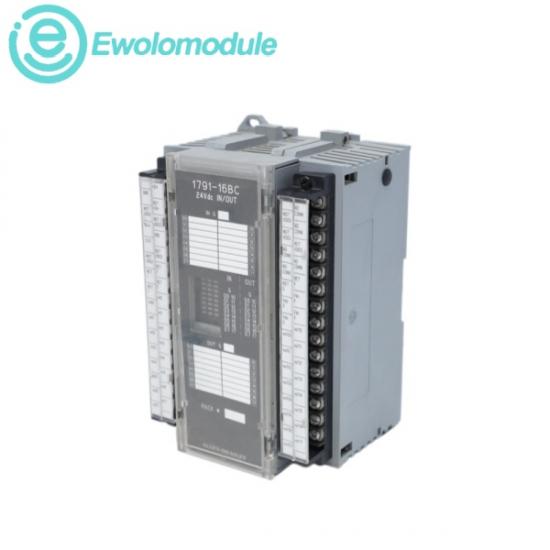

The 1791-16BC is a legacy, self-contained remote intelligent electronic hardware unit engineered by Allen-Bradley brand. Classified as a classic "Block I/O" device, this module integrates the functionalities of a remote I/O chassis, an adapter, an internal power supply, and standard signal conditioning circuits into a single standalone enclosure. It is designed to act as a cost-effective distributed I/O solution on Allen-Bradley Remote I/O (RIO) networks. The module enables direct control over field automation points from central processing controllers, establishing backward compatibility with legacy Allen-Bradley system families such as the PLC-2, PLC-3, PLC-5, and SLC 5/02 platforms. Enclosed in a compact IP20 housing, the device offers physical layout flexibility by allowing users to mount it either horizontally or vertically onto a standard 35 mm DIN rail or directly to a cabinet subpanel via mounting screws. The main purpose of the 1791-16BC is to place point-to-point interfacing closer to industrial actuators and sensors.

Specifications

u Line Power Supply Voltage Range: 19.2…30V DC (24V DC nominal)

u Max Line Power Current Draw: 300 mA @ 24V DC

u Number of Inputs: 16 discrete inputs, split into 2 isolated groups of 8 points each

u Input Voltage Range (On-State): 10…30V DC

u On-State Input Current: 2.5 mA @ 10V DC minimum up to 11.0 mA @ 30V DC maximum

u Max Input Signal Delay: Fast configuration: 1.0 ms ON / 5.0 ms OFF; Slow configuration: 1.0 ms ON / 18.0 ms OFF

u Output Voltage Range: 10…30V DC
