Overview

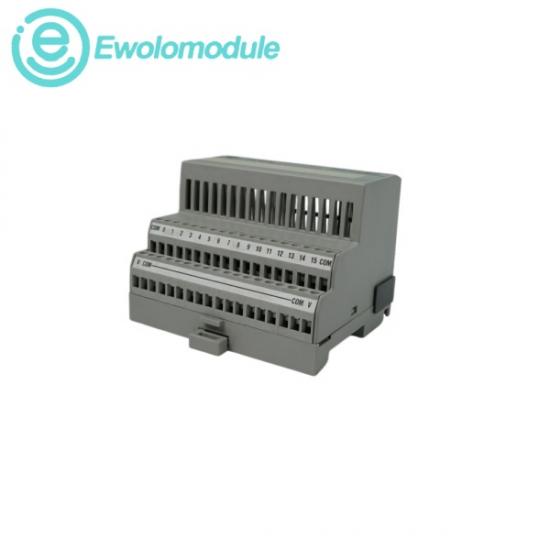

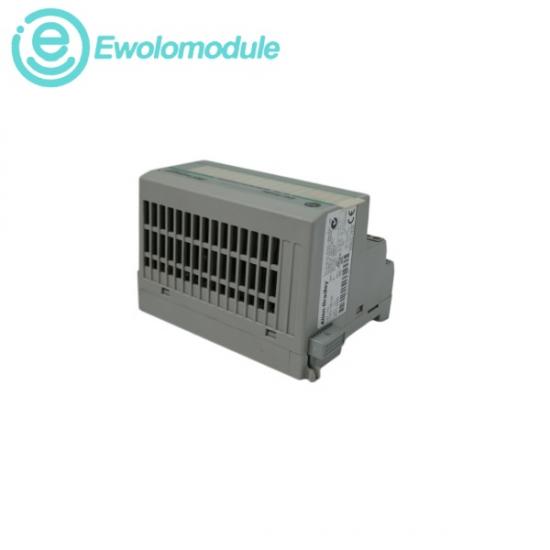

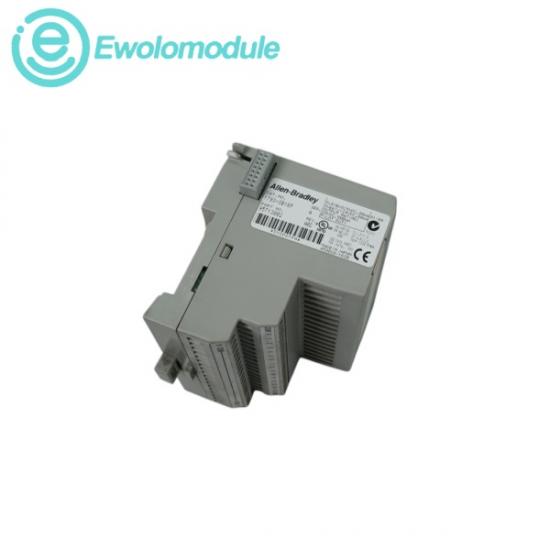

The 1793-OB16P is an industrial distributed automation component designed by Rockwell Automation under the Allen-Bradley brand. As a prominent module in the FLEX Integra lineup, it streamlines field installation by combining the traditional I/O module and the wiring terminal strip into a single, cohesive, and compact unit. This hardware integration removes the need for independent terminal bases or separate marshalling panels, significantly lowering cabinet space requirements, testing durations, and overall commissioning costs on the plant floor. Operating as a high-density digital interface, the module provides 16 sourcing outputs engineered to drive discrete industrial loads such as solenoid valves, indicators, and small motor starters. The "P" suffix highlights its built-in electronic protection, which guards internal circuitry against short circuits and heavy overcurrent surges without requiring external fuses.

Specifications

u External DC Power Voltage: 19.2…31.2V DC (24V DC nominal)

u External DC Power Current: 60 mA maximum

u On-State Voltage Range: 10V DC minimum to 31.2V DC maximum

u On-State Current Capacity: 1 mA minimum up to 500 mA maximum per channel

u Surge Current Rating: 1.5 Amps per channel lasting up to 50 milliseconds

u Off-State Leakage Current: 0.5 mA maximum

u On-State Voltage Drop: 0.5V DC maximum across the module

u Flexbus Backplane Current Draw: 80 mA maximum
