Overview

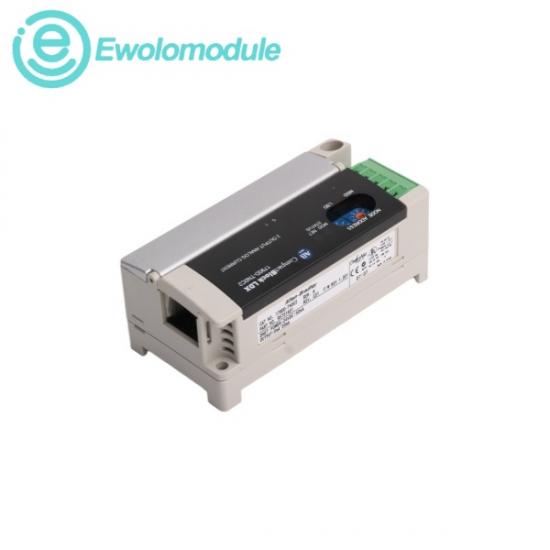

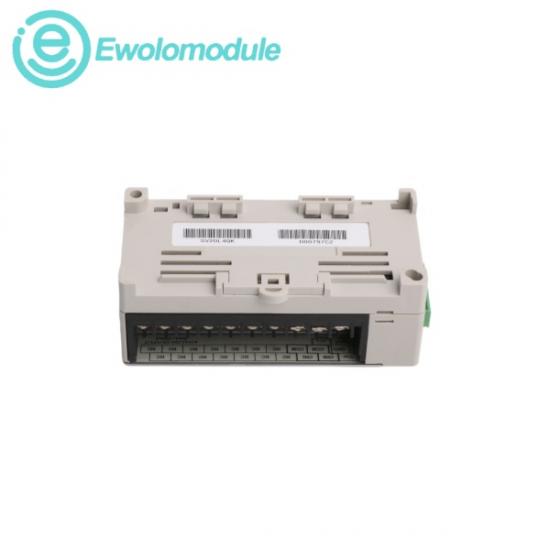

The 1790D-TN4V0 is a low-profile distributed analog base block engineered by Allen-Bradley brand. Operating as an all-in-one distributed node on DeviceNet industrial networks, this compact hardware module integrates network adapter functionality, an internal processing engine, and analog field-side signal conditioning into a single open-style housing. It is explicitly designed for machine builders and control panel designers who require high-accuracy voltage data acquisition while operating in highly restricted physical environments, such as narrow wireways, terminal enclosures, or localized operator station enclosures. As a master network base block, the module natively hosts 4 channels of single-ended analog voltage inputs, capturing real-time instrumentation telemetry from sensors and delivering it back to a centralized programmable logic controller (PLC) over a DeviceNet bus line. The "T" in the part number indicates it features built-in fixed screw-clamp terminals for direct field instrumentation termination. The 1790D-TN4V0 can support up to two adjacent CompactBlock LDX expansion blocks plugged directly into its expansion port, allowing a single DeviceNet network node to scale up effectively based on growing process needs.

Specifications

u DeviceNet Network Power Voltage: 24V DC nominal

u Field-Side External I/O Power Supply: 24V DC nominal

u Analog Input Signal Range: 0…10V DC

u Analog-to-Digital Converter Resolution: 12-bit unsigned/unipolar resolution

u Data Bus Format: 16-bit signed integer data structure

u Operating Ambient Temperature Range: 0…60 °C (32…140 °F)
