ALLEN-BRADLEY · PRODUCT DETAILS

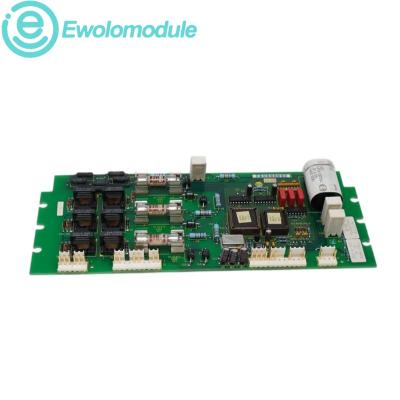

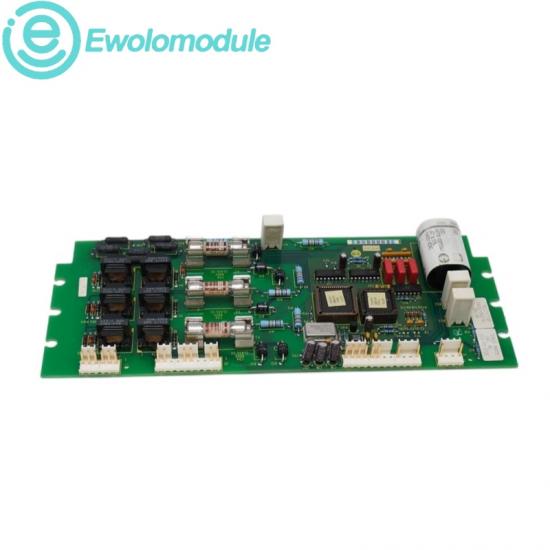

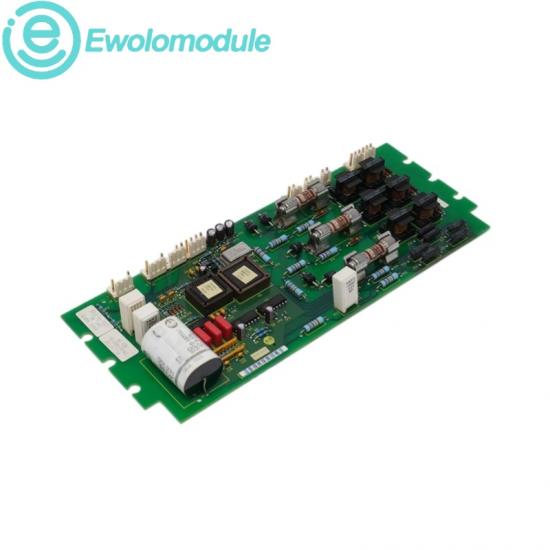

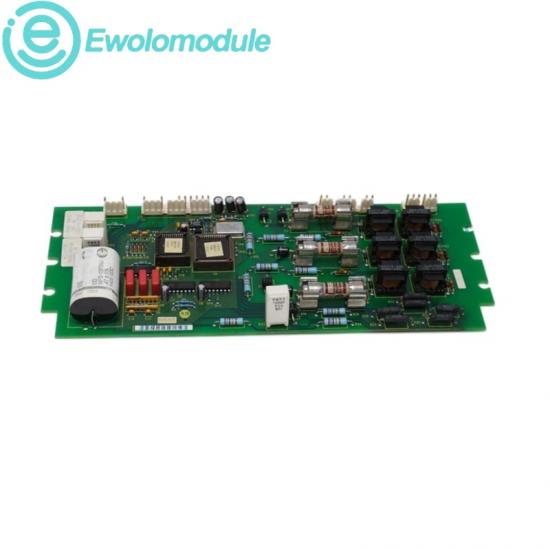

1336-PB-SP2B 74101-502-51
Precharge PC Board
An internal circuit board that manages DC-bus precharge sequencing in compatible 1336 adjustable-frequency drives.
|
OPERATING PURPOSE
DC-bus charging sequence
Coordinates the precharge path before the drive establishes its normal power connection.
|
SYSTEM POSITION
Internal drive assembly
Connects to the compatible 1336 power structure through designated board interfaces.
|
| 02 |
DIAGNOSTICS, PROTECTION & INSTALLATION |
SERVICE PLANNING |
|
Diagnostics & Protection
For precharge or DC-bus faults, lock out the drive and verify complete discharge before inspection. Check the charging resistors, contactor or relay, fuses, connectors and board condition against the drive fault history.
Do not replace the board until shorted power components or failed precharge hardware have been ruled out; never bypass protective sequencing.
|
Installation & Upgrades
Match catalog number 1336-PB-SP2B and board number 74101-502-51, then confirm the exact drive frame and revision. Preserve all connector identification and mounting hardware.
Use grounded ESD protection, avoid PCB flexing, seat every connector fully and complete the documented drive checks before applying power.
|
Technical data
| Catalog number |
1336-PB-SP2B |
Board number |
74101-502-51 |
| System family |
1336 drive |
Control role |
DC-bus precharge sequencing |
| Installation |
Drive internal assembly |
Handling |
ESD-sensitive board |
Verify all ratings, connections and installed-system documentation before commissioning.
| 03 |
BRAND CHARACTERISTICS & APPLICATION FIELDS |
USE-CASE OVERVIEW |
|
Brand characteristics
| Drive-specific sequencing |
Circuit design aligns with 1336 DC-bus charging logic. |
| Traceable board number |
Catalog and PCB codes support hardware verification. |
| Connectorized service |
Internal interfaces support controlled board replacement. |
| Legacy platform support |
Maintains established drive assemblies during lifecycle service. |
|
Application fields
| Adjustable-frequency drives |
Precharge control in compatible 1336 systems. |
| Industrial motors |
Drive maintenance for pumps, fans and conveyors. |
| Process plants |
Lifecycle support for installed variable-speed equipment. |
| Repair programs |
Board replacement after power-stage diagnosis. |
|
Product references
Siemens
| S7-1200 |
S7-1500 |
ET 200SP |
ET 200M |
| SM 1221 |
SM 1222 |
SM 1223 |
SM 1231 |
| SM 1232 |
SM 1234 |
CM 1241 |
CM 1243-5 |
| 6ES7321 |
6ES7322 |
6ES7331 |
6ES7332 |
| 6ES7131 |
6ES7132 |
6ES7134 |
6ES7155 |
Bachmann
| MX213 |
MX220 |
MC210 |
MC212 |
| DI232 |
DO232 |
AI204 |
AI208 |
| AO202 |
DIO248 |
NT255 |
FS212 |
| PTAI216 |
AIO288 |
CNT204 |
RS204 |
| EM213 |
MIO106 |
MPC270 |
SCT202 |
| 04 |
SERVICE & POLICY |
QUOTATION SUPPORT |
|
Quote
|
IDENTIFY
Provide 1336-PB-SP2B 74101-502-51, the installed equipment reference, connection or mounting details and required quantity.
|
|
ORDER DETAILS
State the delivery destination, required date and preferred transport method.
|
|
VERIFY & DELIVER
A clear nameplate or installed-product photo and equipment condition help verify compatibility. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
|
|
