VERIFIED CONFIGURATION FILE

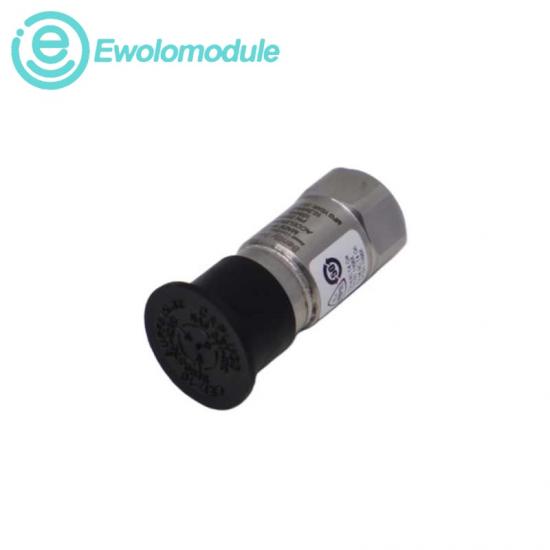

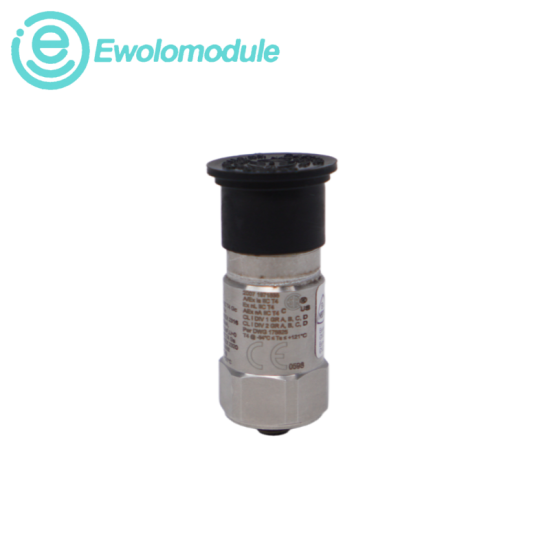

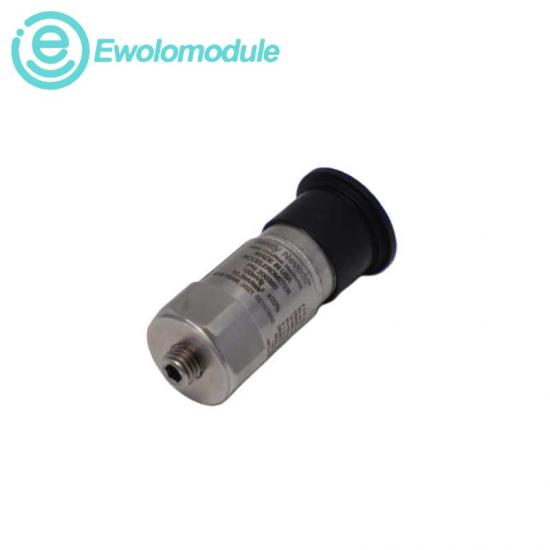

Accelerometer with 1/4-28 Mounting Stud, ±5% Sensitivity, No Approvals
A hermetically sealed general-purpose accelerometer ordered with the 1/4-28 stainless-steel mounting stud, ±5% sensitivity tolerance and no approvals.
|
200355-00-00-00
Bently Nevada · New Original
|
PART NUMBER STRUCTURE
Every suffix, decoded
| 200355 |
Sensor
General-purpose accelerometer
|
|
| 00 |
Mounting stud
1/4-28 SS with brass tip
|
|
| 00 |
Tolerance
100 mV/g ±5%
|
|
|
|
PROCUREMENT CHECK
What a buyer should verify before ordering
Use these four checkpoints to confirm fit, scaling and documentation.
|
|
01
|
Tolerance
The 200355 uses the tighter ±5% sensitivity option.
|
|
02
|
Low-frequency response
Confirm the channel requires the official 0.2 Hz lower frequency.
|
|
03
|
Mounting
Use the supplied 1/4-28 stud and observe 2.7 to 6.8 N·m torque.
|
|
04
|
Cable
Use the top-mounted 2-pin MIL-C-5015 connection.
|
|
|
OFFICIAL DATA REGISTER
200355-00-00-00 specifications
Published values arranged as a clean engineering reference.
|
23
OFFICIAL FIELDS
|
| 01 |
Mounting stud |
1/4-28 stainless steel with brass tip; 1.27 cm |
| 02 |
Sensitivity tolerance |
100 mV/g ±5% |
| 03 |
Agency approval |
No approvals (00) |
| 04 |
Sensitivity |
100 mV/g ±5% (10.2 mV/m/s² ±5%) |
| 05 |
Frequency range |
0.2 Hz to 10 kHz (±3 dB) |
| 06 |
Measurement range |
±50 g |
| 07 |
Transverse sensitivity |
≤5% |
| 08 |
Amplitude linearity |
±1% |
| 09 |
Mounted resonance |
20.8 kHz |
| 10 |
Broadband electrical noise |
50 µg (1 Hz to 10 kHz) |
| 11 |
Output bias voltage |
8 to 12 VDC |
| 12 |
Excitation voltage |
18 to 28 VDC |
| 13 |
Constant-current excitation |
2 to 20 mA |
| 14 |
Settling time |
≤5.0 s |
| 15 |
Output impedance |
<100 Ω |
| 16 |
Discharge time constant |
≥0.8 s |
| 17 |
Operating temperature |
-54°C to +121°C |
| 18 |
Shock survivability |
5,000 g peak |
| 19 |
Enclosure rating |
IP68 |
| 20 |
Typical weight |
94 g |
| 21 |
Dimensions |
2.20 cm hex × 5.23 cm high |
| 22 |
Mounting thread |
1/4-28 female |
| 23 |
Electrical connector |
2-pin MIL-C-5015 |
Engineering note: The 200355 is not interchangeable with the 200350 in low-frequency response, transverse sensitivity, noise and physical size.
