VERIFIED CONFIGURATION FILE

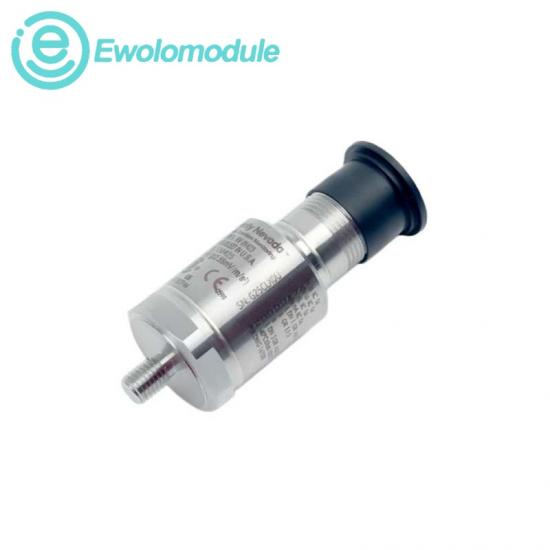

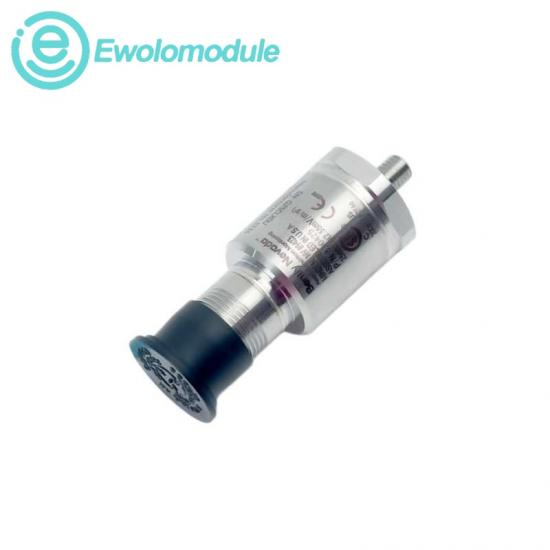

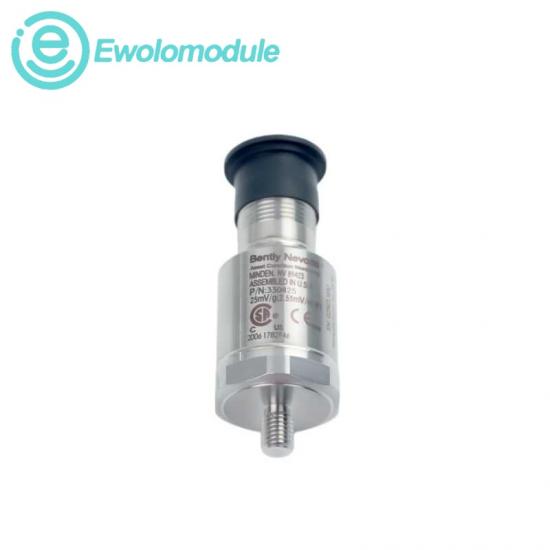

Accelerometer, 1/4-28 UNF Integral Stud, No Approval
A 25 mV/g, 75 g peak accelerometer with a 1/4-28 UNF integral stud and no agency approval option.
|
330425-01-00
Bently Nevada · New Original
|
PART NUMBER STRUCTURE
Every suffix, decoded
| 330425 |
Sensor
25 mV/g accelerometer
|
|
| 01 |
Mounting
1/4-28 UNF integral stud
|
|
|
|
|
|
PROCUREMENT CHECK
What a buyer should verify before ordering
Use these four checkpoints to confirm fit, scaling and documentation.
|
|
01
|
Channel scaling
Configure 25 mV/g; do not use the 330400 100 mV/g scale.
|
|
02
|
High-range input
Confirm the application needs the official 75 g peak range.
|
|
03
|
Mounting
Option 01 is the integral 1/4-28 UNF stud.
|
|
04
|
Approval
Option 00 carries no agency approval package.
|
|
|
OFFICIAL DATA REGISTER
330425-01-00 specifications
Published values arranged as a clean engineering reference.
|
20
OFFICIAL FIELDS
|
| 01 |
Mounting stud |
1/4-28 UNF integral stud |
| 02 |
Agency approval |
Not required (00) |
| 03 |
Sensitivity |
2.5 mV/m/s² (25 mV/g) ±5% |
| 04 |
Acceleration range |
735 m/s² (75 g) peak, 10 Hz to 15 kHz |
| 05 |
Amplitude linearity |
±1% to 735 m/s² (75 g) peak |
| 06 |
Broadband noise floor |
0.098 m/s² (0.01 g) rms |
| 07 |
Frequency response |
10 Hz to 15 kHz ±3 dB |
| 08 |
Precision response |
30 Hz to 10 kHz ±10% |
| 09 |
Mounted resonance |
>30 kHz |
| 10 |
Transverse sensitivity |
<5% of axial sensitivity |
| 11 |
Input voltage |
-24 ±0.5 VDC |
| 12 |
Bias current |
2 mA nominal |
| 13 |
Operating temperature |
-55°C to +121°C |
| 14 |
Shock survivability |
5,000 g peak maximum |
| 15 |
Ingress rating |
Equivalent to IP68, sensor only |
| 16 |
Typical weight |
100 g without cable |
| 17 |
Dimensions |
2.30 cm diameter × 5.90 cm high |
| 18 |
Connector |
3-pin MIL-C-5015 |
| 19 |
Case material |
316L stainless steel |
| 20 |
Maximum cable length |
30,500 cm |
Engineering note: The official sensitivity is 25 mV/g (2.5 mV/m/s²), not 2500 mV/g.
