INSTRUMENT CONTROL FILE

2300/25-02

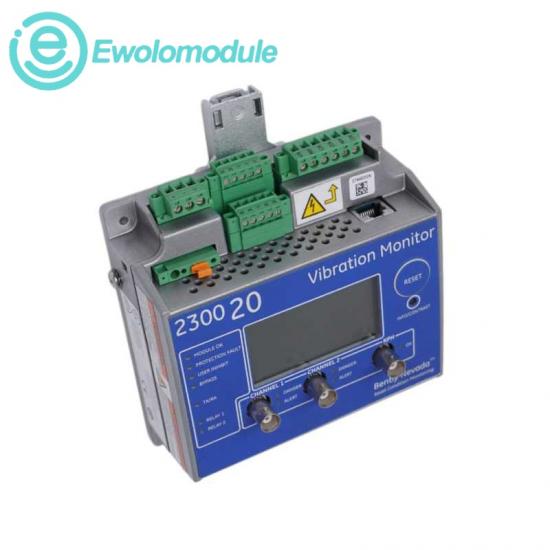

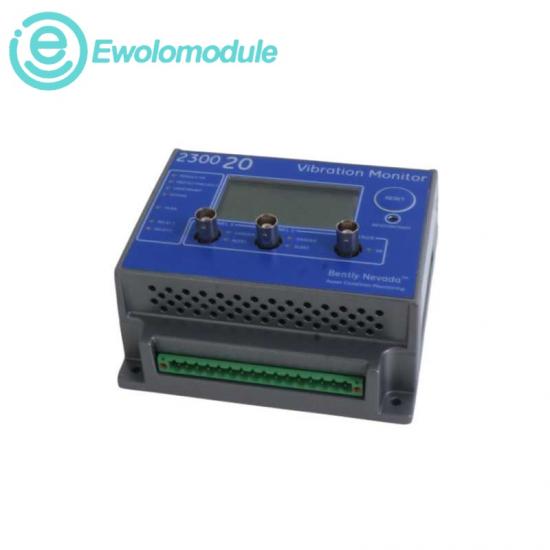

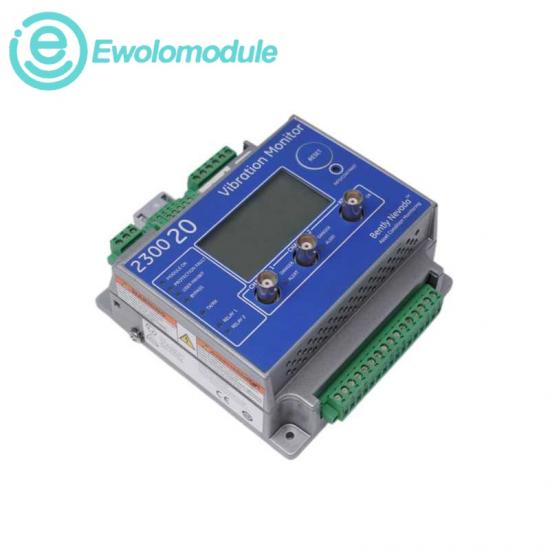

2300 Vibration Monitor with SPA Outputs

CONFIGURATION

Trendmaster SPA Output · ATEX/IECEx/CSA

CONDITION

New Original

OFFICIAL IDENTITY

2300 Series

A compact continuous-monitoring and protection unit for medium- to low-criticality machinery. It accepts acceleration, velocity or proximity inputs and supports synchronized sampling, alarm capture and Modbus over Ethernet.

BUYER DECISION LENS

What matters in this configuration

LEGACY LINK

Trendmaster SPA compatibility

The 2300/25 interface supports existing DSM SPA infrastructure and System 1 Classic connectivity.

MEASUREMENT

Two synchronized vibration channels

Independent 24-bit conversion supports acceleration, velocity, displacement and process-variable measurements.

PROTECTION

Relays, display and alarm capture

Two programmable relays, local LCD/LED status and stored alarm data support autonomous protection decisions.

APPLICATION MAP

Typical operating roles

Pumps, motors and fans with limited monitoring points

Medium- and low-criticality rotating machinery

Retrofit panels requiring compact DIN mounting

Existing Trendmaster SPA installations

ORDERING-CODE DECODE

2300/25 identifies the monitor with SPA outputs; 02 selects multiple ATEX/IECEx/CSA explosive-atmosphere certifications.

PURCHASE-GATE FAQ

Questions to close before release

Why choose the 2300/25 instead of the 2300/20?

Choose the 2300/25 when the project needs Trendmaster SPA output rather than the 2300/20's two 4–20 mA outputs.

Which hazardous-location package is selected?

Code 02 identifies multiple explosive-atmosphere certifications covering ATEX, IECEx and CSA listings in the ordering table.

What SPA frequency range is published?

The official SPA output frequency response is 10 Hz to 3000 Hz within ±5%.

Can it monitor machine speed?

Yes. A dedicated speed channel supports proximity probes, magnetic pickups and proximity switches.

Is Ethernet still available on the SPA version?

Yes. The 2300/25 retains 10/100 Ethernet for configuration and Modbus communications.

What must be checked before replacing a DSM SPA point?

Confirm the existing SPA wiring, signal range, sensor type and System 1/Trendmaster integration details.

OFFICIAL DATA LEDGER

2300/25-02 Technical Record

Values normalized to cm where dimensional

Complete model	2300/25-02
Monitor variant	2300/25 — SPA outputs
Approval option	02 — Multiple ATEX/IECEx/CSA certifications
SPA input range	High AC 8 Vpp; Low AC 1.6 Vpp; DC gap 0 to -20 Vdc
SPA frequency response	10 Hz to 3000 Hz, ±5%
Manufacturer	Bently Nevada
Product family	2300 Vibration Monitor
DC power input	18 to 36 Vdc
Maximum power	7.5 W
Primary measurement inputs	2 synchronized acceleration/velocity/proximity channels
Dedicated speed channel	1
Relay outputs	2 programmable relays
Buffered outputs	3 BNC transducer outputs including Keyphasor
Ethernet	10Base-T / 100Base-TX, IEEE 802.3
Maximum Ethernet cable length	100 m
Communications	Modbus over Ethernet
Input ADC	Independent 24-bit ADCs
Configurable bandpass	0.2 Hz to 20 kHz
RPM range with proximity input	1 to 120,000 rpm
Dimensions	12.7 × 12.7 × 7.62 cm
Weight	1.03 kg
Mounting	Panel mount or DIN rail; DIN adapter included
Operating temperature	-30°C to +65°C
Storage temperature	-40°C to +85°C
Humidity	Up to 95%, non-condensing

The table consolidates official model-specific ordering details and published system specifications. Confirm the complete suffix when requesting a quotation.
