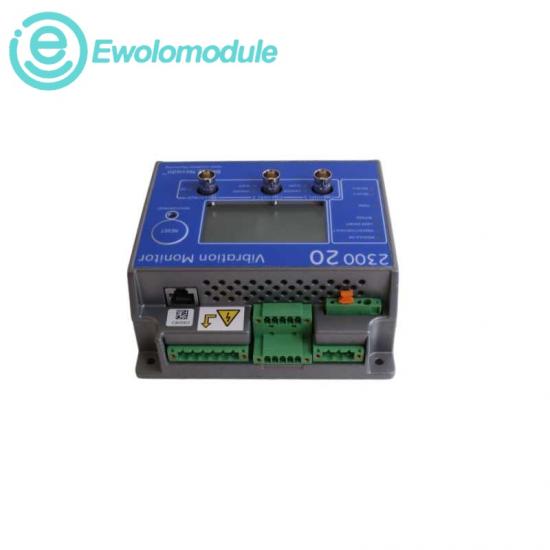

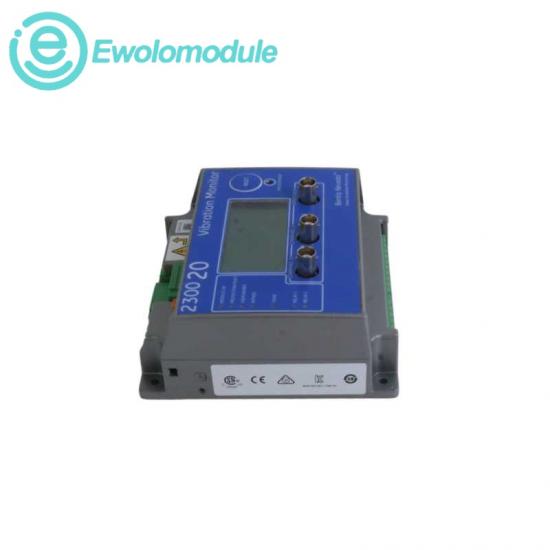

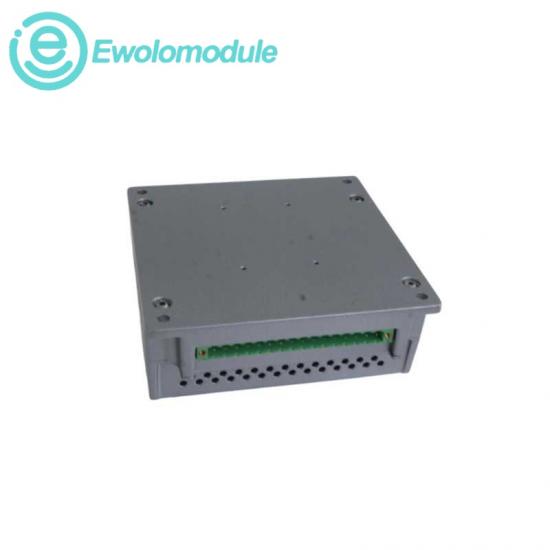

2300 Vibration Monitor with SPA Outputs
The 2300/25 interface supports existing DSM SPA infrastructure and System 1 Classic connectivity.
Independent 24-bit conversion supports acceleration, velocity, displacement and process-variable measurements.
Two programmable relays, local LCD/LED status and stored alarm data support autonomous protection decisions.
2300/25 identifies the monitor with SPA outputs; 00 selects no approval option.
| Complete model | 2300/25-00 |
| Monitor variant | 2300/25 — SPA outputs |
| Approval option | 00 — None |
| SPA input range | High AC 8 Vpp; Low AC 1.6 Vpp; DC gap 0 to -20 Vdc |
| SPA frequency response | 10 Hz to 3000 Hz, ±5% |
| Manufacturer | Bently Nevada |
| Product family | 2300 Vibration Monitor |
| DC power input | 18 to 36 Vdc |
| Maximum power | 7.5 W |
| Primary measurement inputs | 2 synchronized acceleration/velocity/proximity channels |
| Dedicated speed channel | 1 |
| Relay outputs | 2 programmable relays |
| Buffered outputs | 3 BNC transducer outputs including Keyphasor |
| Ethernet | 10Base-T / 100Base-TX, IEEE 802.3 |
| Maximum Ethernet cable length | 100 m |
| Communications | Modbus over Ethernet |
| Input ADC | Independent 24-bit ADCs |
| Configurable bandpass | 0.2 Hz to 20 kHz |
| RPM range with proximity input | 1 to 120,000 rpm |
| Dimensions | 12.7 × 12.7 × 7.62 cm |
| Weight | 1.03 kg |
| Mounting | Panel mount or DIN rail; DIN adapter included |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Humidity | Up to 95%, non-condensing |
A balanced reference list spanning machinery monitoring and safety-control hardware. Send the exact suffix for availability checks.
We verify the complete model, suffix, quantity, destination and required certification before quoting.
Condition, availability, lead time, price, payment and shipment method are aligned in one quotation.
Order details are approved before warehouse release, followed by traceable dispatch information.
