INSTRUMENT CONTROL FILE

990-04-70-01-01

990 Two-Wire Vibration Transmitter for 3300 NSv System

CONFIGURATION

0–4 mils pp · 7 m System · DIN Mount

CONDITION

New Original

OFFICIAL IDENTITY

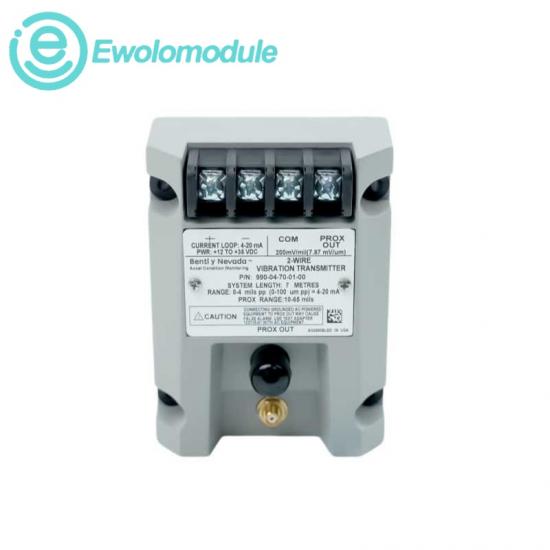

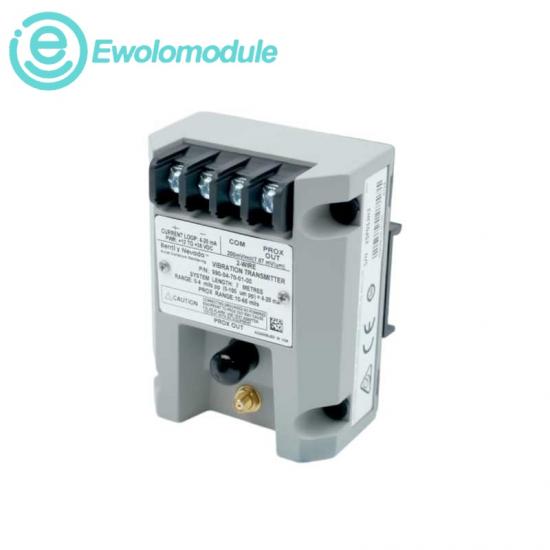

990 Vibration Transmitter

A two-wire 4–20 mA transmitter with an integrated Proximitor Sensor. It accepts one 3300 NSv probe and matching extension cable, conditions peak-to-peak vibration and provides diagnostic Prox Out and gap-voltage access.

BUYER DECISION LENS

What matters in this configuration

LOOP SIGNAL

Direct 4–20 mA vibration output

A two-wire proportional signal integrates easily with machinery control or protection logic.

DIAGNOSTICS

Dynamic Prox Out connection

The non-isolated diagnostic output supports waveform and gap-voltage checks with the specified test practices.

INSTALLATION

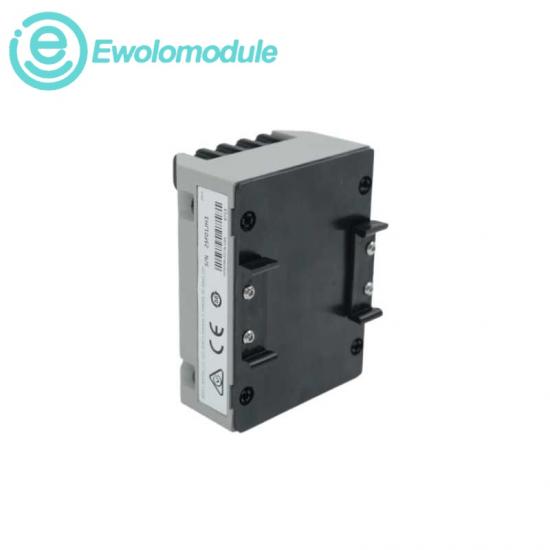

35 mm DIN-rail clips

Mounting option 01 provides the official DIN-rail hardware for compact OEM panels.

APPLICATION MAP

Typical operating roles

Centrifugal air-compressor monitoring

Small pump, motor and fan protection

OEM machinery panels with PLC or DCS input

Retrofits needing a simple proportional vibration loop

ORDERING-CODE DECODE

990-04-70-01-01 decodes as 04 = 0–4 mils pp (0–100 µm pp); 70 = 7.0 m system length; 01 = 35 mm DIN-rail clips; 01 = CSA Division 2 approval.

PURCHASE-GATE FAQ

Questions to close before release

What differentiates this page from 990-04-70-01-00?

The final 01 code adds the CSA Division 2 approval option.

Is the full-scale value 100 µm or 125 µm?

It is 100 µm peak-to-peak because the first code is 04.

Which 3300 NSv length must be ordered?

Select probe and extension-cable components totaling 7.0 m.

Does CSA approval remove the need to check the installation drawing?

No. Verify the exact marking, wiring method, barriers and destination requirements before release.

Can the diagnostic output drive a long cable?

The official maximum lead length for the Prox Out BNC connection is 3 m.

What happens during transmitter power-up?

The signal remains below 3.6 mA for approximately 2–3 seconds before normal operation.

OFFICIAL DATA LEDGER

990-04-70-01-01 Technical Record

Values normalized to cm where dimensional

Manufacturer	Bently Nevada
Complete model	990-04-70-01-01
Product family	990 Vibration Transmitter
Component type	Two-wire loop-powered vibration transmitter
Full-scale range	0–4 mils pp (0–100 µm pp)
System length	700 cm
Mounting option	01 — 35 mm DIN-rail clips
Agency approval option	01 — CSA Division 2
Dimensions with DIN clips	10.01 × 7.39 × 5.33 cm
Transmitter weight	0.43 kg
Typical total system weight	0.82 kg
Sensor input	One 3300 NSv proximity probe and matching extension cable
Power input	+12 to +35 Vdc at transmitter terminals
Signal output	4–20 mAdc, two-wire
Loop accuracy	±1.5% over specified full-scale range
Maximum loop resistance	1000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Required probe gap	0.05 to 0.175 cm
Prox Out linear range	0.14 cm
Prox Out scale factor	7.87 mV/µm (200 mV/mil), ±6.5% typical
Frequency response	5 Hz to 6000 Hz, +0/-3 dB
Minimum target diameter	0.95 cm
Operating temperature	-35°C to +85°C
Storage temperature	-52°C to +100°C
Relative humidity	100% condensing, non-submerged with protected coaxial connectors

The table consolidates official model-specific ordering details and published system specifications. Confirm the complete suffix when requesting a quotation.
