01
PRODUCT PROFILE
MACHINERY MONITORING
BENTLY NEVADA
31000-32-05-15-030-02-02

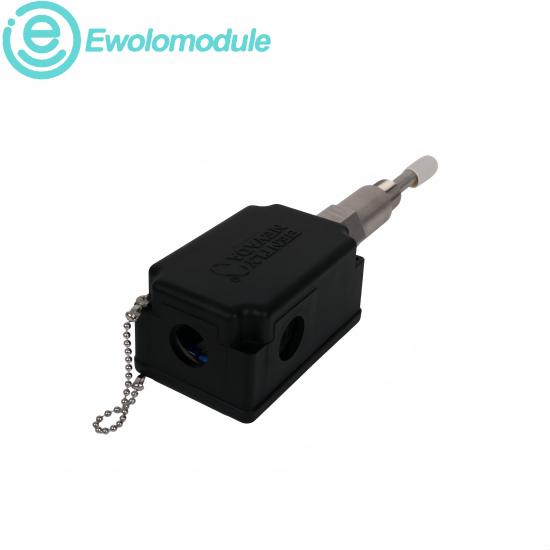

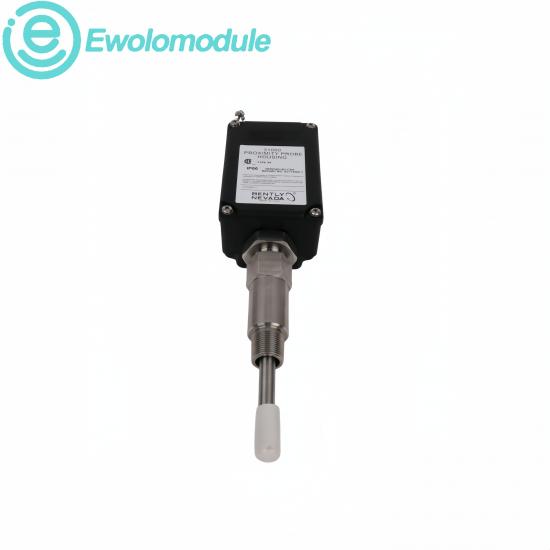

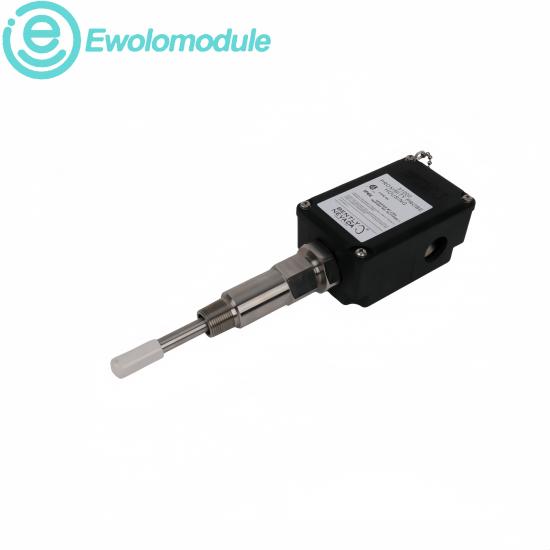

31000 Proximity Probe Housing Assembly
PRODUCT OVERVIEW
Externally adjustable probe mounting and protection
A PPS housing assembly with standoff support for accessible machinery-monitoring probe installation.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
The housing has no programmable functions. Set probe position and gap mechanically, then configure the receiving monitor for the installed probe and transducer-system family.
Document the standoff, penetration, fitting orientation and cable path before removal. Recheck sleeve retention, sealing surfaces and channel gap voltage after installation.
Application Scenarios
Used for externally mounted radial-vibration and Keyphasor probes where technicians require access for gap adjustment and probe replacement.
Suitable for turbines, compressors, pumps and large motors in power, petrochemical and other continuous-process facilities.
Technical data
| Housing material |
Conductive PPS |
Probe cable length |
0.5m |
| Standoff adapter |
1.5in |
Probe penetration |
3.0in |
| Fitting option |
Two NPT fittings and plug |
Mounting thread |
3/4-14 NPT |
| Enclosure rating |
Type 4X / IP66 |
Sleeve material |
304 stainless steel |
Verify the complete order code, installed transducer family and system configuration before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada systems are widely used for continuous machinery protection and condition monitoring. |
Power generation |
Turbine, generator and auxiliary rotating-equipment monitoring. |
| Interchangeable architecture |
Documented component families support controlled probe, cable and sensor replacement. |
Oil & gas |
Compressor, pump and driver vibration or position measurement. |
| Harsh-duty construction |
Industrial materials and sealed connections support demanding rotating-machine locations. |
Process plants |
Machinery protection on critical continuous-process assets. |
| Lifecycle discipline |
Complete order-code verification helps preserve the installed measurement configuration. |
Maintenance programs |
Planned replacement, gap verification and lifecycle service. |
