01
PRODUCT PROFILE
MACHINERY MONITORING
BENTLY NEVADA
330101-00-52-10-02-05

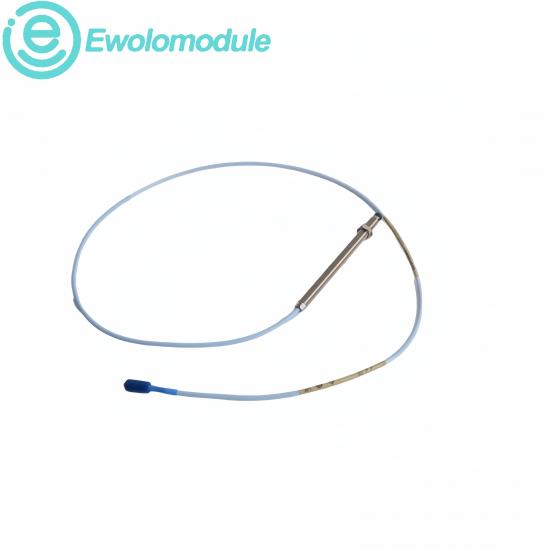

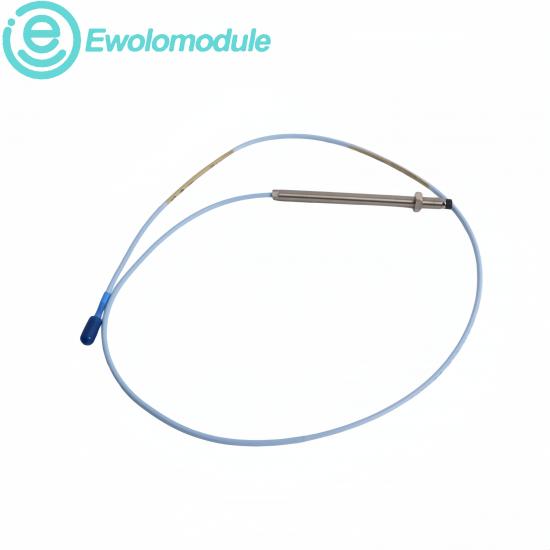

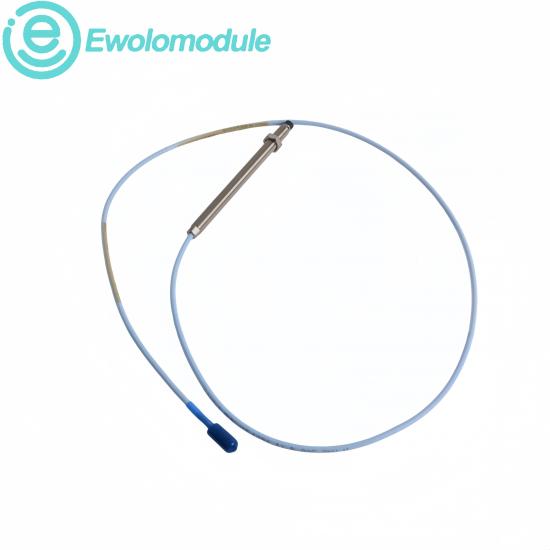

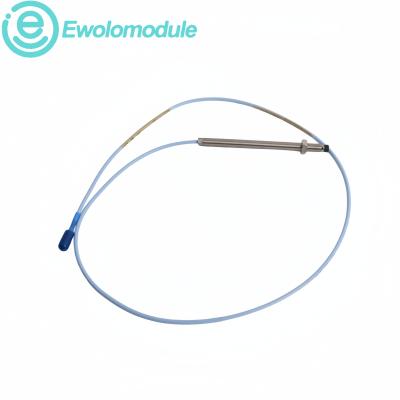

3300 XL 8 mm Proximity Probe
PRODUCT OVERVIEW
Extended-case shaft vibration and position sensing
A one-metre imperial-threaded probe for compatible 3300 XL machinery-monitoring channels.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
This probe has no loadable firmware. Configure the monitor for a matched 3300 XL 8 mm transducer system and preserve the documented scale factor and electrical length.
Record gap voltage, alarm settings and channel polarity before replacement. Confirm the probe, extension cable and Proximitor Sensor combination before returning the machine to service.
Application Scenarios
Used for radial shaft vibration, axial position, Keyphasor and speed measurements on turbines, compressors, pumps and motors.
The 5.2in case provides additional reach where the sensing point is recessed within a bearing housing or machine casing.
Technical data
| Mounting thread |
3/8-24 UNF |
Unthreaded length |
0in |
| Case length |
5.2in |
Lead length |
1.0m |
| Connector |
ClickLoc standard |
Linear range |
2.0mm |
| Scale factor |
7.87V/mm |
Operating range |
-52 to +177°C |
Verify the complete order code, installed transducer family and system configuration before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada systems are widely used for continuous machinery protection and condition monitoring. |
Power generation |
Turbine, generator and auxiliary rotating-equipment monitoring. |
| Interchangeable architecture |
Documented component families support controlled probe, cable and sensor replacement. |
Oil & gas |
Compressor, pump and driver vibration or position measurement. |
| Harsh-duty construction |
Industrial materials and sealed connections support demanding rotating-machine locations. |
Process plants |
Machinery protection on critical continuous-process assets. |
| Lifecycle discipline |
Complete order-code verification helps preserve the installed measurement configuration. |
Maintenance programs |
Planned replacement, gap verification and lifecycle service. |
Product references
| Bently Nevada |
| 3500/15 |
3500/20 |
3500/22M |
3500/25 |
3500/32M |
| 3500/33 |
3500/40M |
3500/42M |
3500/45 |
3500/50M |
| 3500/53 |
3500/60 |
3500/61 |
3500/64M |
3500/65 |
| 3500/72M |
3500/77M |
330180 |
330400 |
330500 |
| Metrix |
| ST5484E |
ST6917 |
SW5484E |
SA6200A |
MX2033 |
| MX2034 |
MX2035 |
MX2036 |
5485C |
5545 |
| 5550 |
ST5491E |
ST5491A |
ST6900 |
IT6810 |
| IT6811 |
ST6901 |
ST6950 |
SW5580 |
ST5484 |
04
SERVICE & POLICY
QUOTATION SUPPORT
| Quote |
Disclaimer |
| IDENTIFYProvide the complete 330101-00-52-10-02-05 order code, installed system reference and required quantity. |
INDEPENDENT SUPPLYThis website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website. |
| VERIFYConfirm 3/8-24 UNF mounting, 5.2in case, 1.0m lead, unarmored ClickLoc connection and approval option 05. |
TRADEMARK OWNERSHIPAll product names, trademarks, brands, and logos used on this website are the property of their respective owners. |
| QUOTE & DELIVERYState the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation. |
IDENTIFICATION PURPOSEThe description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder. |
