PRODUCT PROFILE
MACHINERY MONITORING
BENTLY NEVADA
330730-040-12-00

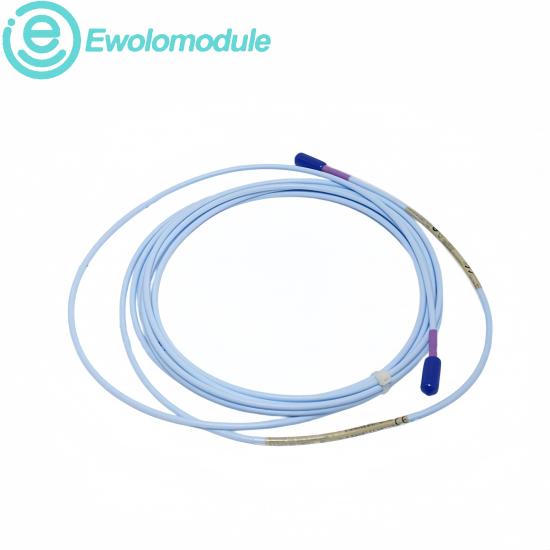

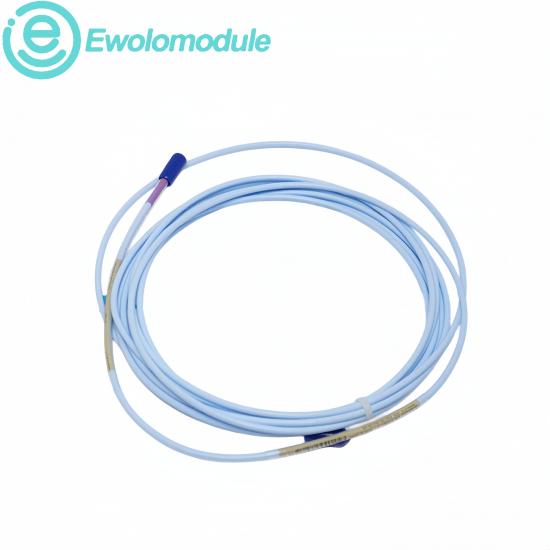

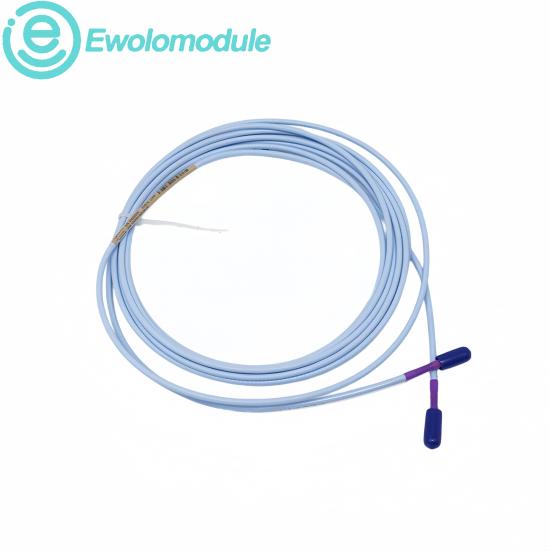

3300 XL 11 mm Extension Cable
PRODUCT OVERVIEW
Signal extension for matched 11 mm transducer systems
A four-metre FluidLoc cable linking the proximity probe to its compatible Proximitor Sensor.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
The cable requires no programming. Select it as part of a matched 3300 XL 11 mm measurement chain and keep the combined probe and extension-cable length compatible with the Proximitor Sensor.
Route the cable separately from power conductors, protect the connectors from strain and contamination, and verify channel gap voltage after the complete chain is assembled.
Application Scenarios
Used between 3300 XL 11 mm probes and Proximitor Sensors for vibration, thrust-position and differential-expansion channels.
FluidLoc construction suits turbine and compressor installations where oil migration through the cable core must be controlled.
Technical data
| Cable length |
4.0m |
Cable option |
FluidLoc |
| Connector protection |
Included |
Capacitance |
69.9pF/m typical |
| Core resistance |
1.0Ω ±0.25Ω |
Jacket resistance |
0.3Ω ±0.1Ω |
| Temperature range |
-52 to +177°C |
Approval option |
Not required |
Verify the complete order code, installed transducer family and system configuration before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada systems are widely used for continuous machinery protection and condition monitoring. |
Power generation |
Turbine, generator and auxiliary rotating-equipment monitoring. |
| Interchangeable architecture |
Documented component families support controlled probe, cable and sensor replacement. |
Oil & gas |
Compressor, pump and driver vibration or position measurement. |
| Harsh-duty construction |
Industrial materials and sealed connections support demanding rotating-machine locations. |
Process plants |
Machinery protection on critical continuous-process assets. |
| Lifecycle discipline |
Complete order-code verification helps preserve the installed measurement configuration. |
Maintenance programs |
Planned replacement, gap verification and lifecycle service. |
