330854-040-24-05

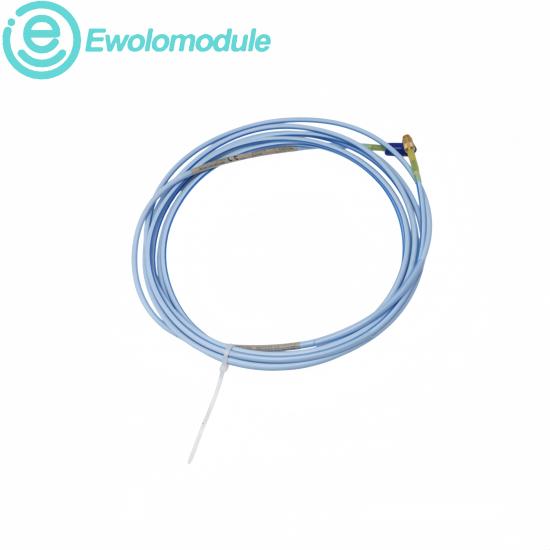

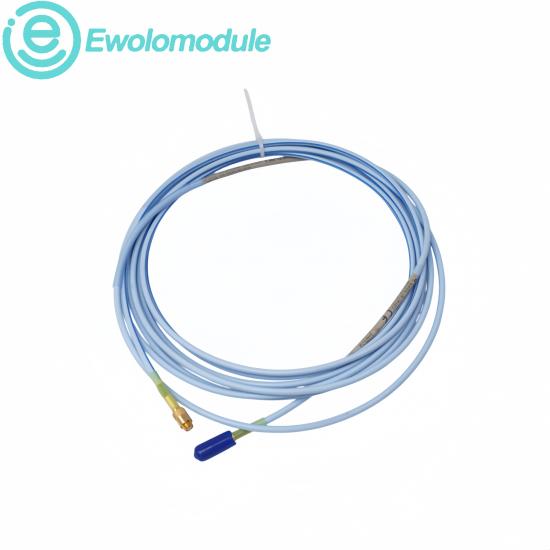

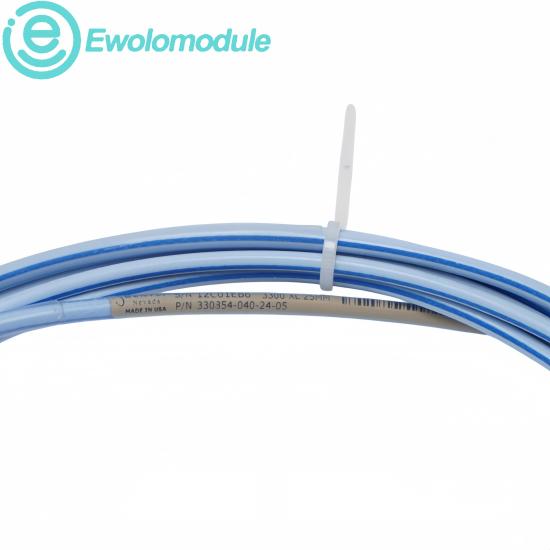

3300 XL 25 mm Extension Cable
PRODUCT OVERVIEW
High-temperature signal extension for 25 mm systems
A four-metre non-armored FluidLoc cable for matched turbine differential-expansion measurements.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
This extension cable contains no firmware. Match it to the documented 3300 XL 25 mm probe and Proximitor Sensor so the complete electrical chain retains the specified system length.
Protect the miniature coaxial connectors, observe cable bend limits and keep the route clear of high-power conductors. Validate zero, gap and differential-expansion response after installation.
Application Scenarios
Designed for steam-turbine differential-expansion channels that require the extended measuring range of a 25 mm proximity system.
High-temperature FluidLoc construction supports harsh turbine compartments where oil ingress and elevated ambient temperature must be controlled.
Technical data
| Cable length |
4.0m |
System family |
3300 XL 25 mm |
| Cable construction |
High-temperature FluidLoc |
Armor |
Non-armored |
| Connector |
Miniature coaxial |
Nominal impedance |
75Ω |
| Jacket material |
PFA |
Approval option |
Multiple approvals |
Verify the complete order code, installed transducer family and system configuration before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada systems are widely used for continuous machinery protection and condition monitoring. |
Power generation |
Turbine, generator and auxiliary rotating-equipment monitoring. |
| Interchangeable architecture |
Documented component families support controlled probe, cable and sensor replacement. |
Oil & gas |
Compressor, pump and driver vibration or position measurement. |
| Harsh-duty construction |
Industrial materials and sealed connections support demanding rotating-machine locations. |
Process plants |
Machinery protection on critical continuous-process assets. |
| Lifecycle discipline |
Complete order-code verification helps preserve the installed measurement configuration. |
Maintenance programs |
Planned replacement, gap verification and lifecycle service. |
