01
PRODUCT PROFILE
MACHINERY MONITORING
BENTLY NEVADA
330101-00-47-05-02-05

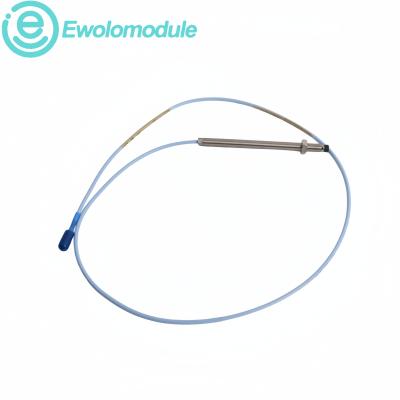

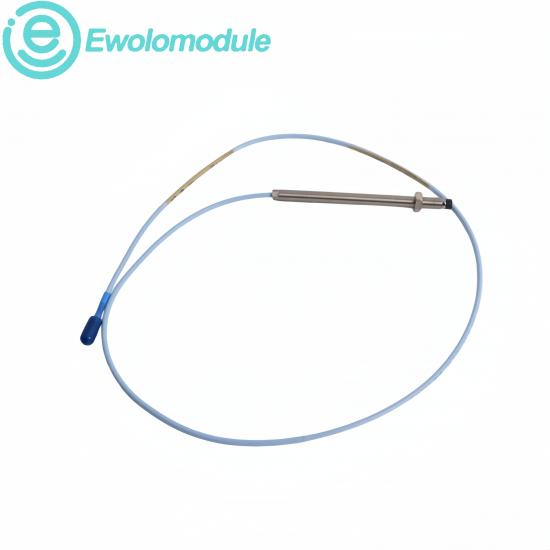

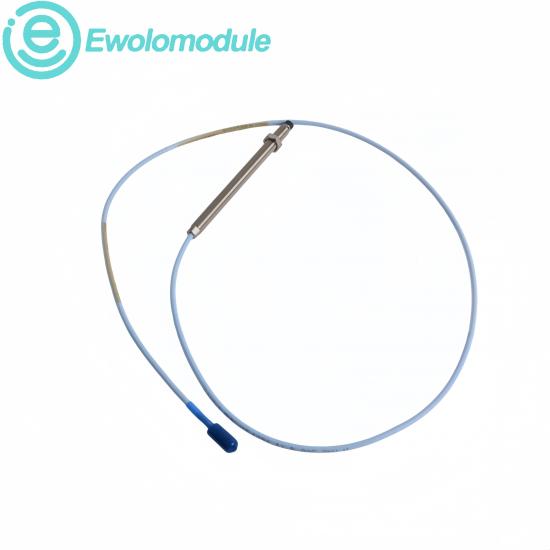

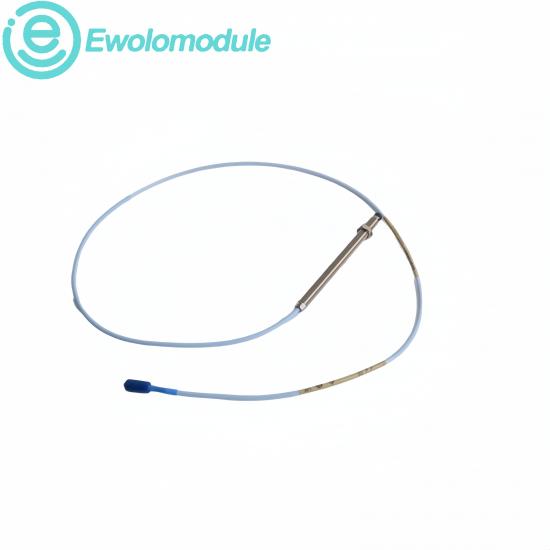

3300 XL 8 mm Proximity Probe
PRODUCT OVERVIEW
Non-contact shaft vibration and position sensing
An imperial-threaded short-lead probe for compatible 3300 XL machinery-protection channels.
Explore other Bently Nevada products →
02
CONFIGURATION & APPLICATIONS
TECHNICAL PLANNING
Configuration & Programming
The probe has no user programming. Configure the monitor channel for a matched 3300 XL 8 mm system and retain the documented scale factor, polarity and total electrical length.
Record the installed gap voltage and alarm setup before replacement. After fitting the probe, verify connector security, cable routing and response across the expected measurement range.
Application Scenarios
Supports radial vibration, axial position, Keyphasor and speed measurements on rotating machinery with fluid-film bearings.
The 0.5m lead and 4.7in case suit compact turbine, compressor, pump and gearbox mounting arrangements.
Technical data
| Mounting thread |
3/8-24 UNF |
Unthreaded length |
0in |
| Case length |
4.7in |
Lead length |
0.5m |
| Connector |
ClickLoc standard |
Linear range |
2.0mm |
| Scale factor |
7.87V/mm |
Operating range |
-51 to +177°C |
Verify the complete order code, installed transducer family and system configuration before commissioning.
03
BRAND & APPLICATIONS
SYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Monitoring heritage |
Bently Nevada systems are widely used for continuous machinery protection and condition monitoring. |
Power generation |
Turbine, generator and auxiliary rotating-equipment monitoring. |
| Interchangeable architecture |
Documented component families support controlled probe, cable and sensor replacement. |
Oil & gas |
Compressor, pump and driver vibration or position measurement. |
| Harsh-duty construction |
Industrial materials and sealed connections support demanding rotating-machine locations. |
Process plants |
Machinery protection on critical continuous-process assets. |
| Lifecycle discipline |
Complete order-code verification helps preserve the installed measurement configuration. |
Maintenance programs |
Planned replacement, gap verification and lifecycle service. |
Product references
| Bently Nevada |
| 3500/15 |
3500/20 |
3500/22M |
3500/25 |
3500/32M |
| 3500/33 |
3500/40M |
3500/42M |
3500/45 |
3500/50M |
| 3500/53 |
3500/60 |
3500/61 |
3500/64M |
3500/65 |
| 3500/72M |
3500/77M |
330180 |
330400 |
330500 |
| Metrix |
| ST5484E |
ST6917 |
SW5484E |
SA6200A |
MX2033 |
| MX2034 |
MX2035 |
MX2036 |
5485C |
5545 |
| 5550 |
ST5491E |
ST5491A |
ST6900 |
IT6810 |
| IT6811 |
ST6901 |
ST6950 |
SW5580 |
ST5484 |
04
SERVICE & POLICY
QUOTATION SUPPORT
| Quote |
Disclaimer |
| IDENTIFYProvide the complete 330101-00-47-05-02-05 order code, installed system reference and required quantity. |
INDEPENDENT SUPPLYThis website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website. |
| VERIFYConfirm 3/8-24 UNF mounting, 4.7in case, 0.5m lead, unarmored standard cable and approval option 05. |
TRADEMARK OWNERSHIPAll product names, trademarks, brands, and logos used on this website are the property of their respective owners. |
| QUOTE & DELIVERYState the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation. |
IDENTIFICATION PURPOSEThe description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder. |
