PRODUCT DETAILS · VERIFIED SYSTEM IDENTITY

Baker Hughes official datasheet · 162301 Rev. AC

BENTLY NEVADA3500 MACHINERY PROTECTION SYSTEM

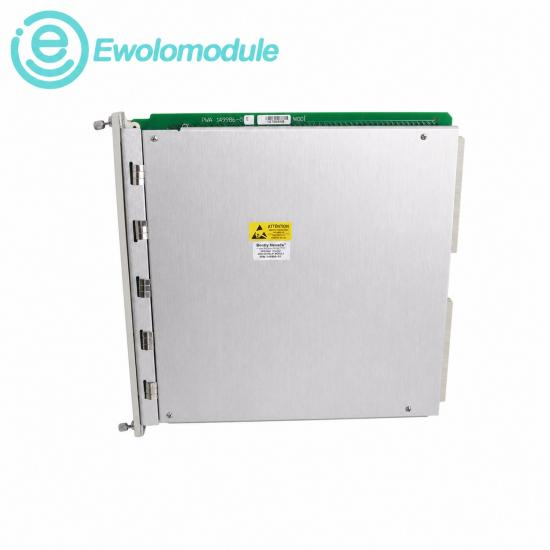

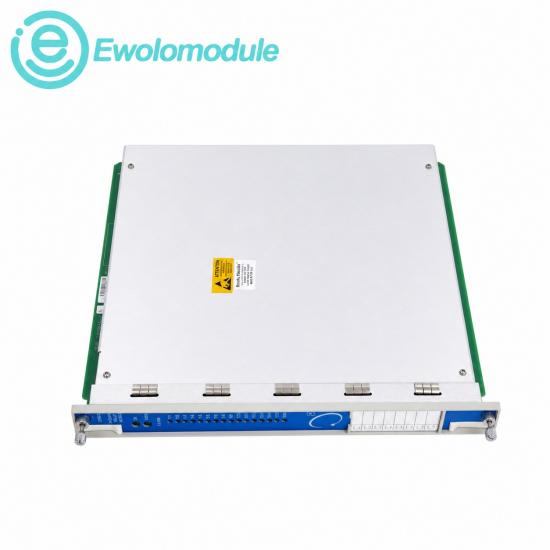

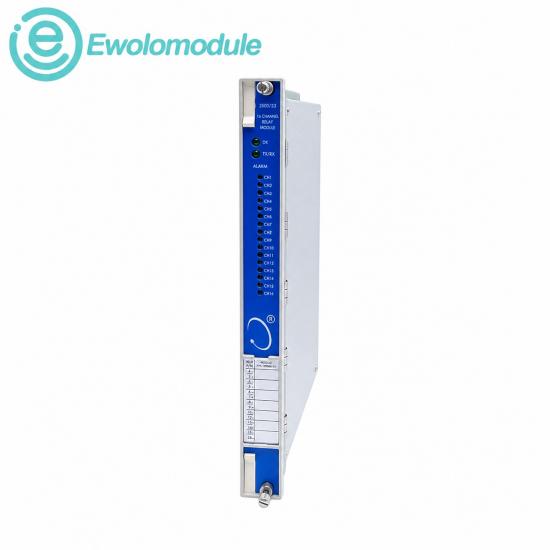

3500/33-01-01

16-Channel Relay Module

A full-height 3500 rack module providing 16 independently programmable relay outputs for alarm and shutdown logic.

CONDITION

New Original

WARRANTY

One year

IN STOCK

4 units

OFFICIAL SOURCE

162301 Rev. AC

SYSTEM CONNECTION

Data route

3500 Rack

3500/33 Relay

Alarm Logic

Field Contacts

PRODUCT POSITIONING

Programmable relay layer for machinery protection

Combines rack alarm states and measured variables with AND/OR logic to drive sixteen independent field relay outputs.

ORDERING STRUCTURE

3500/33-AA-BB

01 · Standard 16-channel relay output module
01 · cNRTLus Class I, Division 2 approval

Compatibility

Fits one full-height front slot with a matching rear I/O module and is configured with 3500 Rack Configuration Software version 3.3 or later.

MANUFACTURER

Baker Hughes

BRAND

Bently Nevada

MODEL

3500/33-01-01

OFFICIAL PRODUCT

16-Channel Relay Module

SYSTEM FAMILY

3500 Machinery Protection System

POWER CONSUMPTION

5.8 W typical

RELAY OUTPUTS

16 independently programmable

RELAY TYPE

SPDT, epoxy-sealed

CONTACT LIFE

10,000 cycles

RACK SPACE

1 full-height front slot

Independent outputs

Each of the sixteen relay channels can use its own programmed voting logic.

Alarm Drive Logic

Supports 3500 configuration tools and Field Contacts condition monitoring software.

Selectable operation

Four groups of four channels support normally energized or de-energized operation.

APPLICATION MAP

Programmable alarm and shutdown outputs for 3500 racks

Turbine protection

Routes rack alarm logic to field shutdown and annunciation circuits.

Compressor trains

Provides independent relay outputs for machinery protection sequences.

Generators

Combines monitor states into clear plant alarm actions.

Process units

Supports configurable voting logic across critical rotating assets.

3500/33-01-01 16-Channel Relay Module

Bently Nevada 3500/33-01-01
