FIELD FILE
01
|
BENTLY NEVADA / PRODUCT IDENTIFICATION

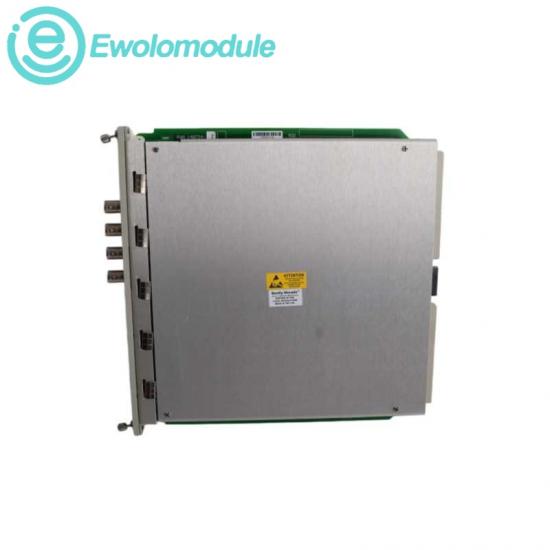

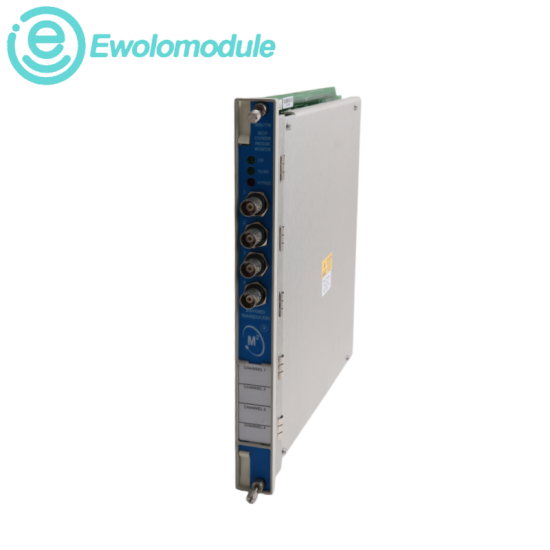

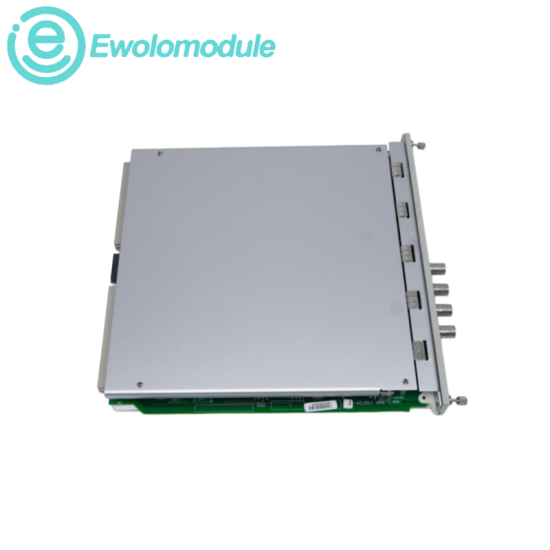

3500/77M 143737-01Bently Nevada 3500/77M 143737-01 Cylinder Pressure I/O Module
|
|
MAKER
Bently Nevada
|
ORDER ITEM
143737-01
|
EQUIPMENT CLASS
External-Termination Cylinder Pressure I/O Module
|
|
USE CASE
Read the whole suffix.
|
A rear 3500/77M I/O module with external terminations for Bently Nevada-approved third-party cylinder-pressure transducers.
Use the complete model code when requesting availability, condition, lead time and shipping information.
|
|
MEASURED / ORDER-CODE DATA
Technical register
|
02
INDEX
|
| S01 | PLATFORM | 3500/77M Recip Cylinder Pressure Monitor |
| S02 | FUNCTION | Cylinder-pressure field I/O |
| S03 | TERMINATION | External terminations |
| S04 | SENSOR SUPPORT | Bently Nevada-approved third-party pressure transducers |
| S05 | INPUT IMPEDANCE | 50 kΩ |
| S06 | OPERATING RANGE | -30 °C to +65 °C |
| S07 | DIMENSIONS | 241.3 × 24.4 × 99.1 mm |
| S08 | WEIGHT | 0.20 kg |
| PROCUREMENT FLAG | Order external terminal blocks and cables separately |
|
TWIN-SIGNAL RAIL
20
|
BENTLY NEVADA / ALTERNATIVE MODEL RUN
Signals to compare before ordering |
03
TRACK
|
| 01 | 330180-90-CN | 11 | 3500/22M 146031-01 | |
| 02 | 330180-91-00 | 12 | 3500/22M 146031-02 | |
| 03 | 330180-91-05 | 13 | 3500/22M 288055-01 | |
| 04 | 106M1081-01 | 14 | 3500/25 125800-01 | |
| 05 | 125840-01 | 15 | 3500/25 125800-02 | |
| 06 | 125840-02 | 16 | 3500/32M 125720-01 | |
| 07 | 127610-01 | 17 | 3500/33 149986-01 | |
| 08 | 3500/20 125744-02 | 18 | 3500/40M 125680-01 | |
| 09 | 3500/20 125768-01 | 19 | 3500/42M 128229-01 | |
| 10 | 3500/22M 138607-01 | 20 | 3500/50M 133442-01 |
|
BUYER VERIFICATION TIMELINE
Six decisions for 3500/77M 143737-01
|
Q / A
FOLLOW THE LINE
|
|
CHECKPOINT 01
Does 143737-01 include the front monitor?
|
No. It is the rear I/O module and must be paired with the correct 3500/77M front monitor.
|
|
|
They are separate ordering items; identify the required Euro-style or terminal-strip block and cable length.
|
CHECKPOINT 02
Are the external termination blocks included?
|
|
|
CHECKPOINT 03
Can it replace 143729-01 without wiring changes?
|
No. 143729-01 uses internal terminations, while 143737-01 is intended for external terminations.
|
|
|
Use Bently Nevada-approved positive-voltage third-party pressure transducers with the configured scale factor.
|
CHECKPOINT 04
Which pressure transducers are suitable?
|
|
|
CHECKPOINT 05
What should be photographed before procurement?
|
Capture the front module, rear I/O label, external block, cable markers and rack slot.
|
|
|
Ordering the external I/O module without the required termination block and interconnect cable.
|
CHECKPOINT 06
What is the most common matching error?
|
|
