BENTLY NEVADA / PRODUCT IDENTIFICATION

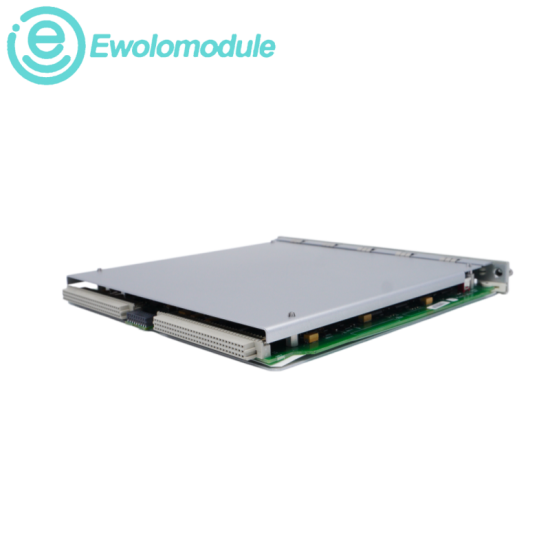

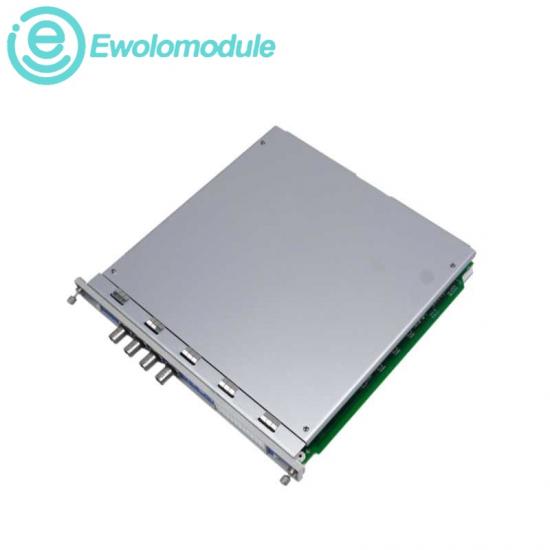

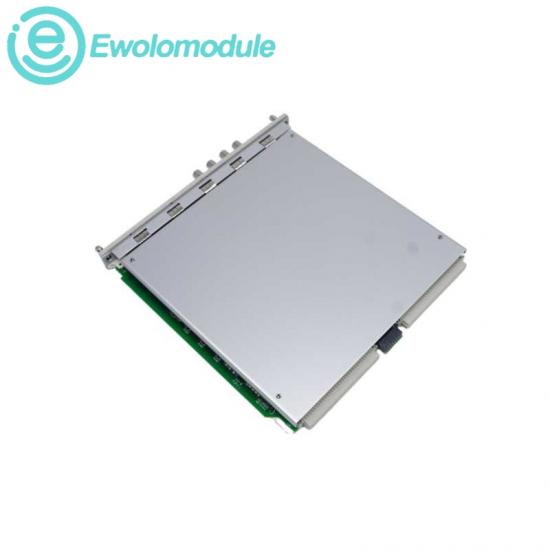

3500/77M 176449-07Bently Nevada 3500/77M 176449-07 Recip Cylinder Pressure Monitor
|
|
MAKER
Bently Nevada
|
ORDER ITEM
176449-07
|
EQUIPMENT CLASS
Recip Cylinder Pressure Monitor
|
|
USE CASE
Read the whole suffix.
|
A four-channel reciprocating-compressor monitor that processes cylinder-pressure signals for pressure, compression ratio and rod-load-related measurements.
Use the complete model code when requesting availability, condition, lead time and shipping information.
|
|
MEASURED / ORDER-CODE DATA
Technical register
|
02
INDEX
|
| S01 | PLATFORM | Bently Nevada 3500 Series |
| S02 | CHANNELS | One to four cylinder-pressure channels |
| S03 | INPUT | Approved positive-voltage pressure transducers |
| S04 | FREQUENCY RESPONSE | 0 to 5.5 kHz |
| S05 | PRESSURE ACCURACY | ±0.5% at +25 °C; ±1.0% over -30 °C to +65 °C |
| S06 | POWER CONSUMPTION | 7.8 W at full transducer load |
| S07 | DIMENSIONS | 241.3 × 24.4 × 241.8 mm |
| S08 | WEIGHT | 0.91 kg |
| PROCUREMENT FLAG | Alert and Danger logic in the 3500 rack |
|
TWIN-SIGNAL RAIL
20
|
BENTLY NEVADA / ALTERNATIVE MODEL RUN
Signals to compare before ordering |
03
TRACK
|
| 01 | 330180-90-CN | 11 | 3500/22M 146031-01 | |
| 02 | 330180-91-00 | 12 | 3500/22M 146031-02 | |
| 03 | 330180-91-05 | 13 | 3500/22M 288055-01 | |
| 04 | 106M1081-01 | 14 | 3500/25 125800-01 | |
| 05 | 125840-01 | 15 | 3500/25 125800-02 | |
| 06 | 125840-02 | 16 | 3500/32M 125720-01 | |
| 07 | 127610-01 | 17 | 3500/33 149986-01 | |
| 08 | 3500/20 125744-02 | 18 | 3500/40M 125680-01 | |
| 09 | 3500/20 125768-01 | 19 | 3500/42M 128229-01 | |
| 10 | 3500/22M 138607-01 | 20 | 3500/50M 133442-01 |
|
BUYER VERIFICATION TIMELINE
Six decisions for 3500/77M 176449-07
|
Q / A
FOLLOW THE LINE
|
|
CHECKPOINT 01
What sensor data is needed for a quote?
|
Provide the pressure range, two-point scale-factor data, transducer part number and cylinder location.
|
|
|
No. Confirm that the transducer is approved for the 3500/77M application.
|
CHECKPOINT 02
Can any positive-voltage pressure sensor be used?
|
|
|
CHECKPOINT 03
Why should the machine speed be stated?
|
The standard product has a 60 RPM lower limit; lower-speed applications may require a modification.
|
|
|
Compression ratio, peak rod compression, peak rod tension and degree of rod reversal are available when correctly configured.
|
CHECKPOINT 04
Which measurements can support rod-load decisions?
|
|
|
CHECKPOINT 05
What must be backed up before a monitor swap?
|
Save channel scaling, alarm setpoints, machine geometry, phase reference and rack configuration.
|
|
|
Compare bias, waveform shape, peak values and alarms with a known healthy pre-outage baseline.
|
CHECKPOINT 06
How should replacement performance be verified?
|
|
