FIELD FILE
01
|
BENTLY NEVADA / PRODUCT IDENTIFICATION

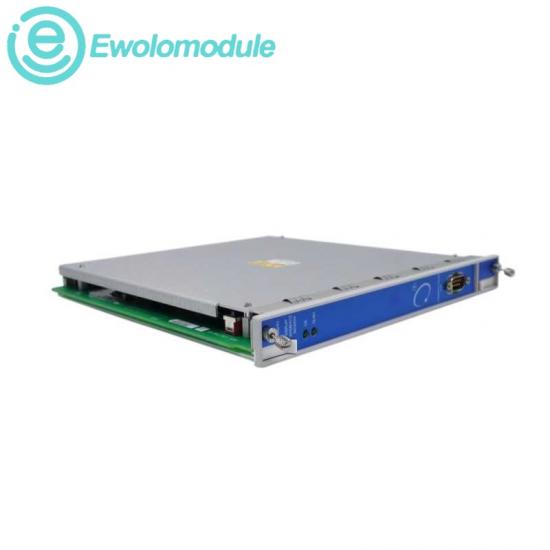

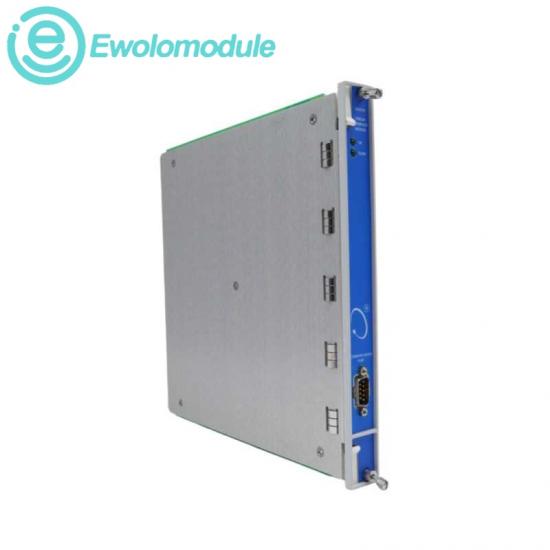

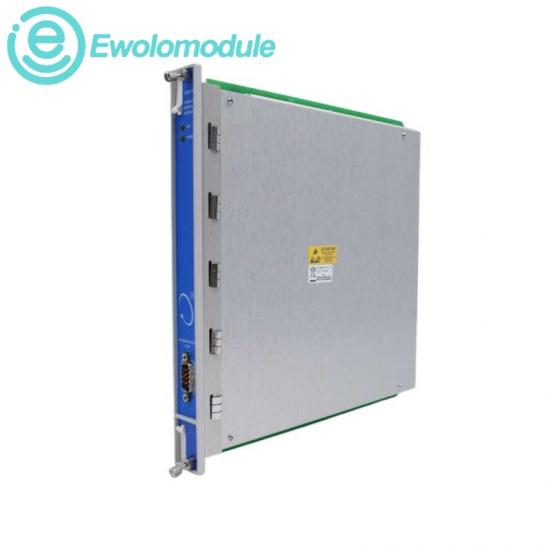

3500/93 135799-01Bently Nevada 3500/93 135799-01 Display Interface Module
|
|
MAKER
Bently Nevada
|
ORDER ITEM
135799-01
|
EQUIPMENT CLASS
Display Interface Module
|
|
USE CASE
Read the whole suffix.
|
The 3500/93 Display Interface Module links a 3500 rack to a local or remote system display for event, alarm and channel information.
Use the complete model code when requesting availability, condition, lead time and shipping information.
|
|
MEASURED / ORDER-CODE DATA
Technical register
|
02
INDEX
|
| S01 | PLATFORM | 3500/93 System Display |
| S02 | FUNCTION | Display Interface Module |
| S03 | INTERFACE | RS422 |
| S04 | PROTOCOLS | Bently Nevada proprietary protocol and Modbus |
| S05 | CHANNEL UPDATE | 1 second typical |
| S06 | DISPLAY COUNT | Up to two displays per 3500 rack |
| S07 | FACE-MOUNT REQUIREMENT | DIM installed in slot 15 |
| S08 | OPERATING RANGE | -30 °C to +65 °C |
| PROCUREMENT FLAG | Local or remote 3500/93 operator indication |
|
TWIN-SIGNAL RAIL
20
|
BENTLY NEVADA / ALTERNATIVE MODEL RUN
Signals to compare before ordering |
03
TRACK
|
| 01 | 330180-90-CN | 11 | 3500/22M 146031-01 | |
| 02 | 330180-91-00 | 12 | 3500/22M 146031-02 | |
| 03 | 330180-91-05 | 13 | 3500/22M 288055-01 | |
| 04 | 106M1081-01 | 14 | 3500/25 125800-01 | |
| 05 | 125840-01 | 15 | 3500/25 125800-02 | |
| 06 | 125840-02 | 16 | 3500/32M 125720-01 | |
| 07 | 127610-01 | 17 | 3500/33 149986-01 | |
| 08 | 3500/20 125744-02 | 18 | 3500/40M 125680-01 | |
| 09 | 3500/20 125768-01 | 19 | 3500/42M 128229-01 | |
| 10 | 3500/22M 138607-01 | 20 | 3500/50M 133442-01 |
|
BUYER VERIFICATION TIMELINE
Six decisions for 3500/93 135799-01
|
Q / A
FOLLOW THE LINE
|
|
CHECKPOINT 01
Is 135799-01 the LCD display itself?
|
No. It is the rack-mounted Display Interface Module that communicates with the separate display unit.
|
|
|
For the system face-mount option, the DIM must occupy the right-most rack slot.
|
CHECKPOINT 02
Why is slot 15 important?
|
|
|
CHECKPOINT 03
Can two displays share one rack?
|
Yes, up to two displays can be connected, with each display requiring its own DIM slot.
|
|
|
Standard arrangements support up to 100 ft; longer runs require the specified external power and cable accessories.
|
CHECKPOINT 04
How far can a remote display be located?
|
|
|
CHECKPOINT 05
What information appears on the 3500/93 display?
|
System events, alarm events and channel, monitor, relay, Keyphasor or tachometer data can be shown.
|
|
|
Confirm DIM part number, display type, mounting method, cable length, I/O hardware and firmware revision.
|
CHECKPOINT 06
What should be checked for a legacy replacement?
|
|
