BENTLY NEVADA

ELECTRIC TEST KIT

OFFICIAL · 178087 Rev. G

TK3

TK-3E

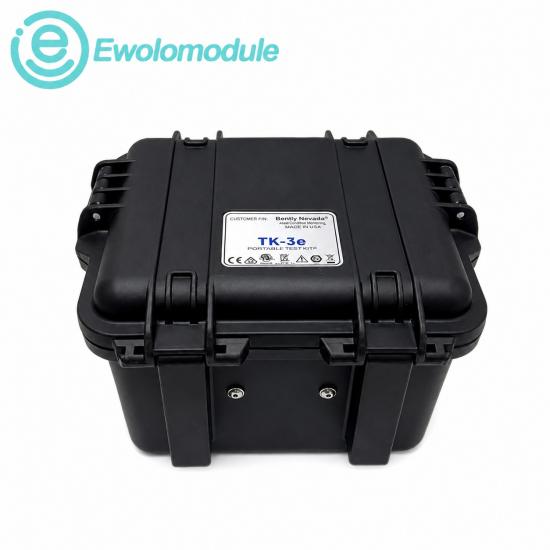

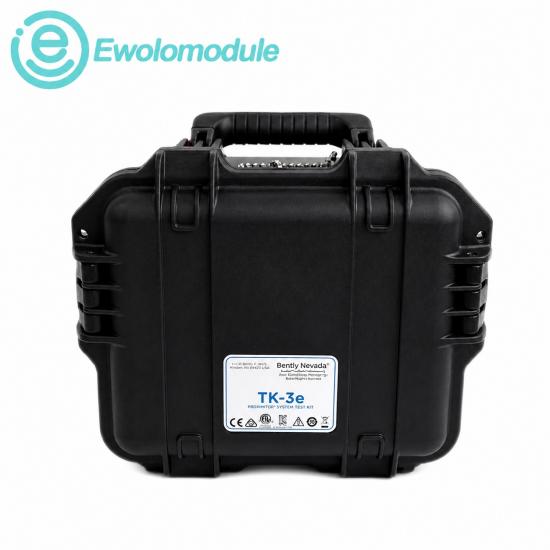

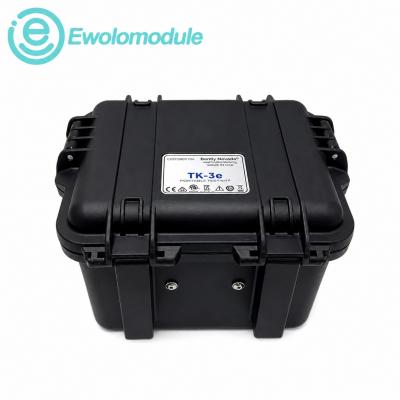

Electric-Driven Proximity System Test Kit

Bently Nevada TK-3E is an electric-driven proximity system test kit for simulating shaft vibration and position during system verification.

CONDITIONNew Original

WARRANTYOne year

IN STOCK1 unit

PRODUCT SERIESTK3

ENGINEERING PROFILE

Electric TK3 calibration and system verification

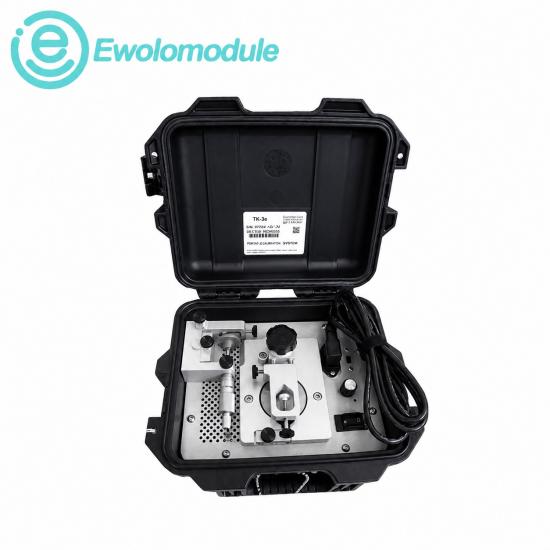

The TK-3E uses a motor-driven wobble plate for vibration simulation and a removable spindle micrometer assembly to verify proximity transducer systems and position monitor calibration.

OFFICIAL ORDERING STRUCTURE · 177313-AA-BB-CC

177313Electric TK-3e

AAScale units

BBPower cord

CCApproval

Electric wobulatorControlled vibration reference up to 5,000cpm.

Universal probe mountAccepts probe diameters from 5mm to 19mm.

Portable verificationChecks monitors and complete transducer systems.

OFFICIAL TECHNICAL DATA

Manufacturer

Bently Nevada

Base order number

177313-AA-BB-CC

Electric power

95–125 or 190–250VAC, 50/60Hz

Vibration amplitude

50µm to 254µm peak-to-peak

Maximum speed

0 to 5,000cpm ±1,000cpm

Micrometer range

0 to 25.4mm

Probe diameter range

5mm to 19mm

Operating temperature

0°C to 50°C

Environmental exposure

IP54 when closed

Official function

Simulates shaft vibration and position for calibration

03A · APPLICATION ROUTEElectric Test Kit application map

Monitor serviceVerify monitor readouts

Probe systemsCheck proximity system condition

CommissioningConfirm measurement chain response

TrainingSimulate controlled shaft motion
